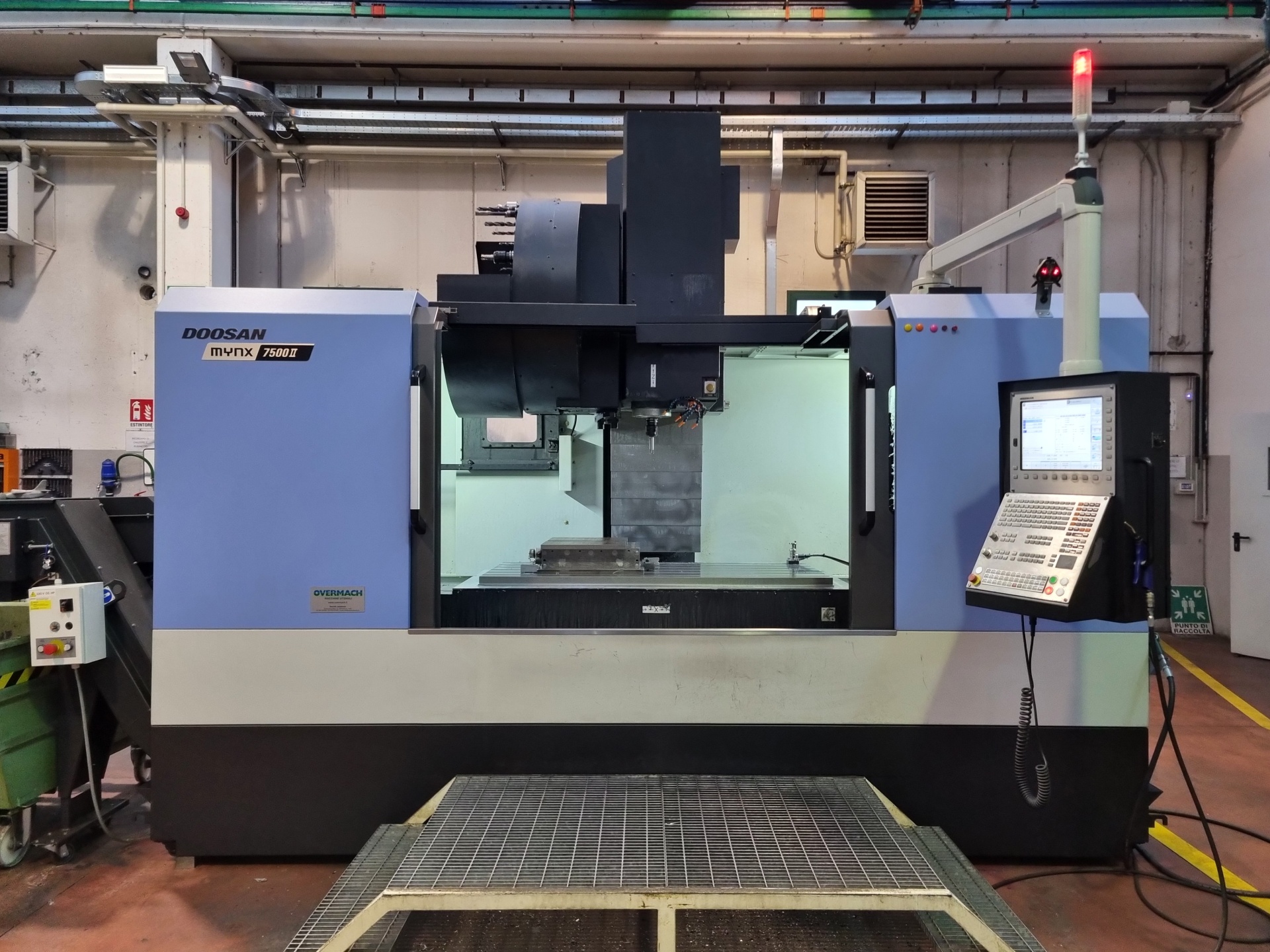

3-осевой вертикальный обрабатывающий центр DOOSAN MYNX 7500

Availability: Available immediately

Production Hours: 11574

General Data

Dimensions of Machine (LxWxH): 5000 x 4050 x 3235 mm

Weight (kg): 13500

Control Unit

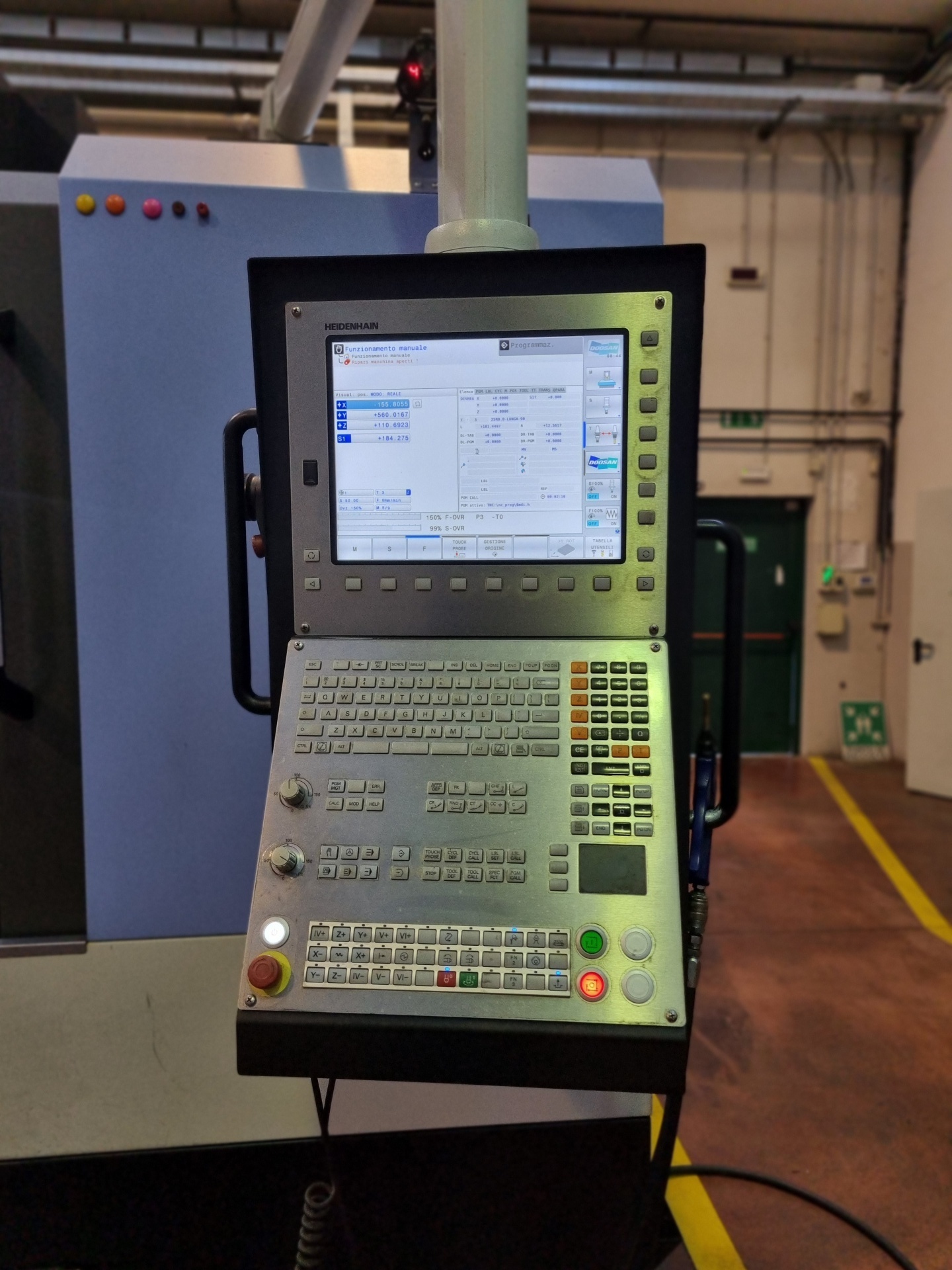

CNC Control: Heidenhain TNC 620 + TS 460 probe

Movement

X-axis Travel (longitudinal): 1525 mm

Y-axis Travel (transversal): 762 mm

Z-axis Travel (vertical): 625 mm

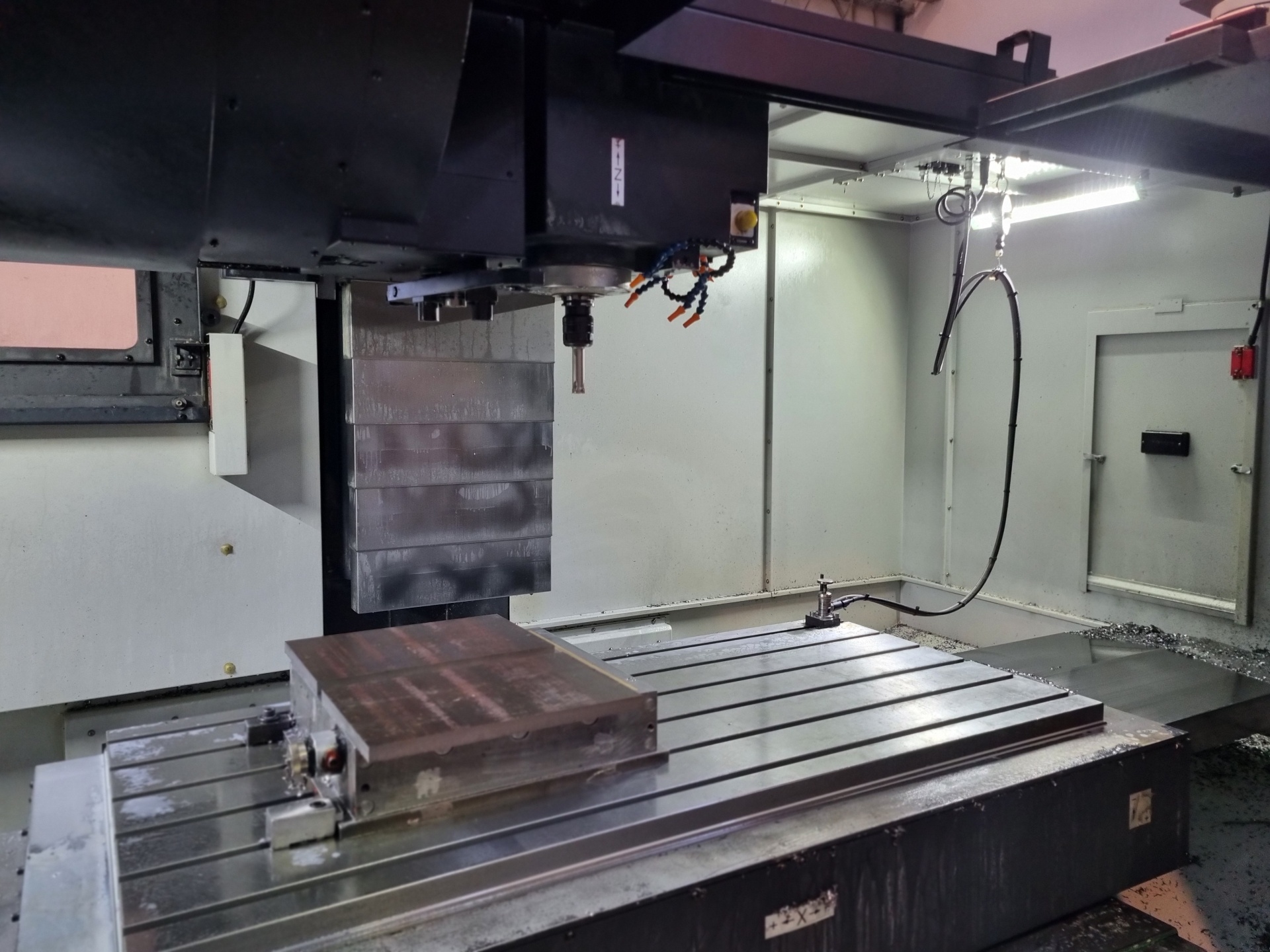

Table

Table Length: 1600 mm

Table Width: 750 mm

Controller

Spindle Taper: ISO 40 dual contact

Maximum Spindle Speed: 12000 rpm
