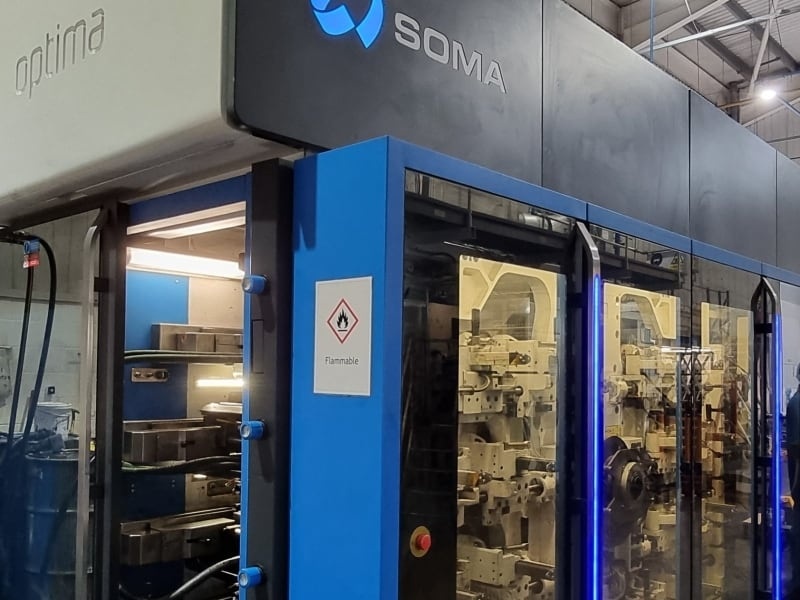

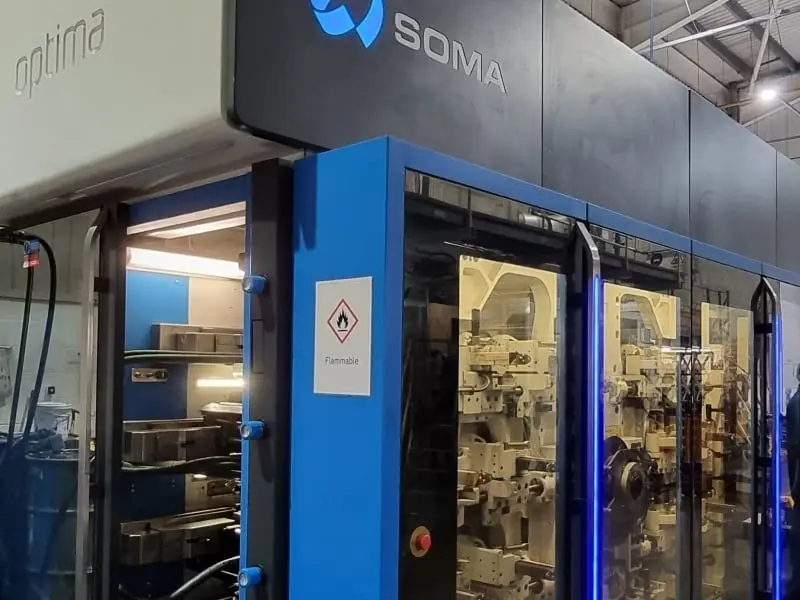

Флексографическая печатная машина CI Soma Optima 2 / GEARLESS

Soma Optima 2 / GEARLESS

Year 2017

Technical Specifications:

Number of Printing Units: 8

Maximum Print Width: 1270 mm

Maximum Web Width: 1320 mm

Minimum Web Width: 300–570 mm (depending on unwinding/rewinding specifications)

Minimum Repeat Length: 360 mm (ARUN system: from 380 mm)

Maximum Repeat Length: 800 mm

Repeat Length Adjustment: 0.1 mm increments;  Correction ±2%

Anilox Roll Inner Diameter: 136.989 mm

Anilox Roll Circumference: 500 mm

Cord Length: 1350 mm

Maximum Mechanical Speed: 500 m/min (or 400 m/min with basic unwinding/winding)

The operating speed depends on the substrate, ink types, transfer method, plate type, image, lineature, anilox volume, etc.

 Corona treatment unit (Ahlbrandt)

Gas dryer

Continuous unwinding on a roll, 1000 mm

Continuous winding on a roll, 1000 mm

Automatic viscosity control (INKSPEC)

Additional drying devices (ECLIPSE gas burners)

Web inlet/outlet extensions

Automatic core change systems

Central chiller for temperature stabilization (Hyperchill ICE039)

Kjcap Ex Ijx H Unvjbjll

Ionization system (SIMCO)

Side register control (Erhardt+Leimer)

EFFICIENCY

Maximum mechanical speed: 500 m/min

FALCON – automatic registration and print pressure adjustment

Modern print inspection system

FAST BLADE – quick doctor blade change system during operation

INKSTORM – automatic system  Washers (optional)

Bosch Rexroth INDRAMAT direct drive technology

JOB MANAGEMENT – prepare future jobs from a remote PC

PRINT QUALITY

CDTS – central cylinder thermal stabilization system

PCTS – anilox and plate cylinder thermal stabilization system

PPP – plate protection

DYNAMIC IMPRESSION – electronic section pressure compensation

The machine design is specifically designed for stable printing, with composite graphite sleeves

EASE OF OPERATION

Intuitive touchscreen

Convenient web access

FASTBLADE chambered doctor blade systems with quick change

FASTADAPT – automatic chamber position adjustment
