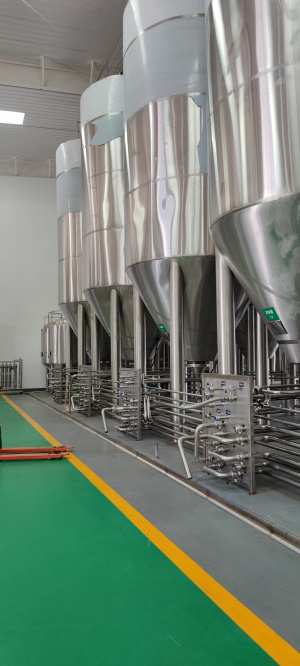

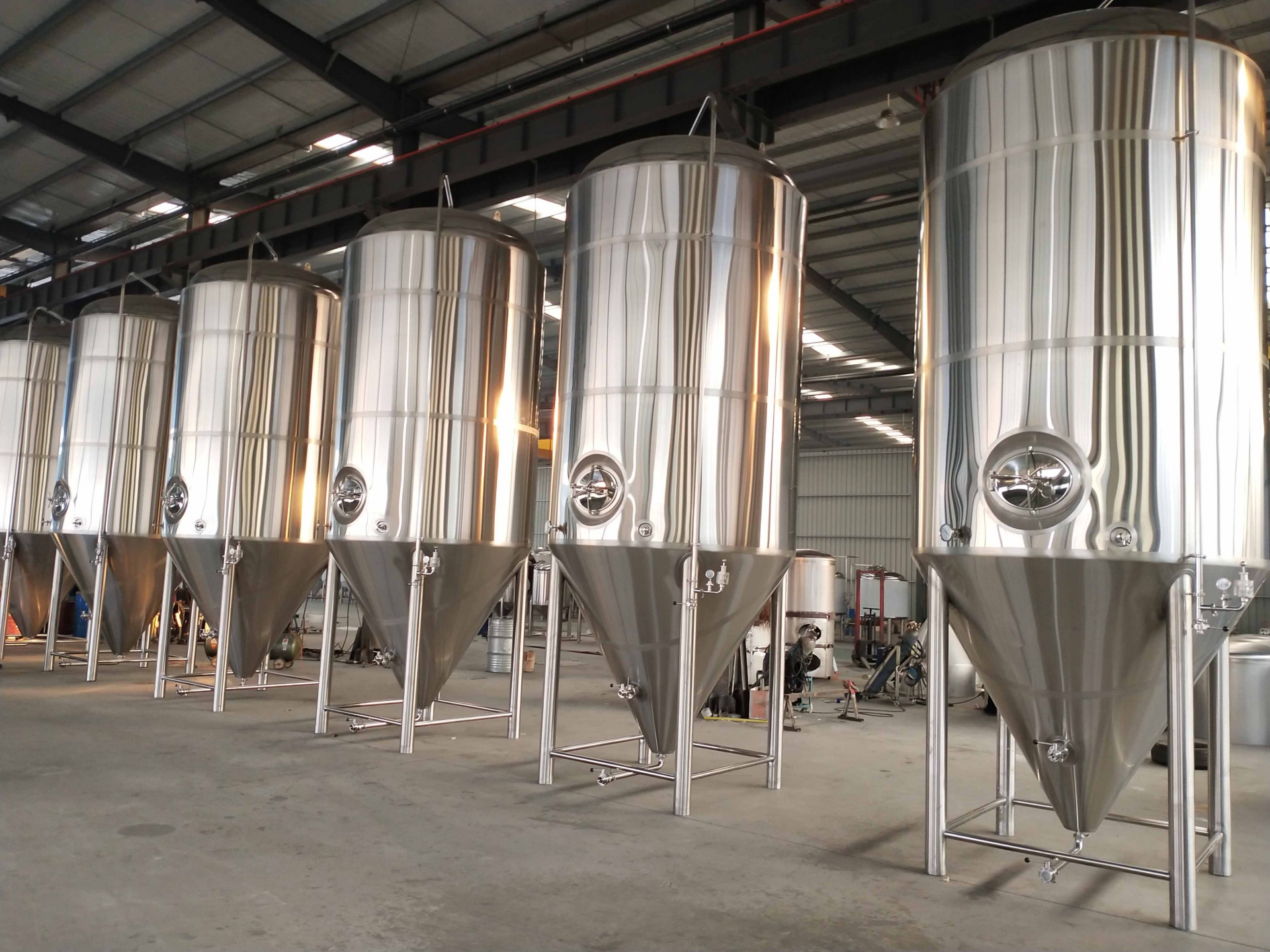

ферментер и ЦКТ

-Function: Fermentation or maturation

-Capacity: +25% head space

-Interior Shell:SUS304,thickness: 3.0mm;

-Exterior Shell:SUS304,thickness: 2.0mm;

-Insulation: Polyurethane-thickness: 100mm

-Dome top and cone bottom 60 degree

-Cooling jacket: dimple plate both on cone and cylinder parts

-Top/side mounted manway

-Dry hopping port on top

-Relief/vacuum valve

-Sample valve

-Bunging device

-Rotating racking arm on cone with butterfly valve

-Drainage arm with butterfly valve

-CIP arm with 360° coverage CIP spraying ball

-Thermowell with high accuracy temperature sensor: PT100

-100% TIG welding with pure argon gas shield

-Interior Finish: mirror polishing to 0.4~0.6μm without dead corner

-Test Pressure: 3bar, Working pressure: 2bar.

-4 support legs with height adjustable pad.

Optional: carbonation stone and level tube
