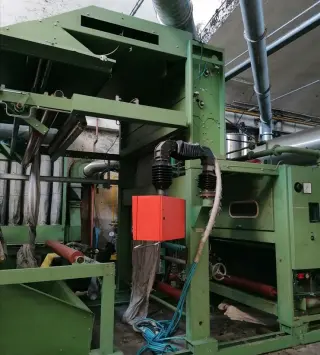

ГАЗООПАЛЬНАЯ МАШИНА OSTHOFF

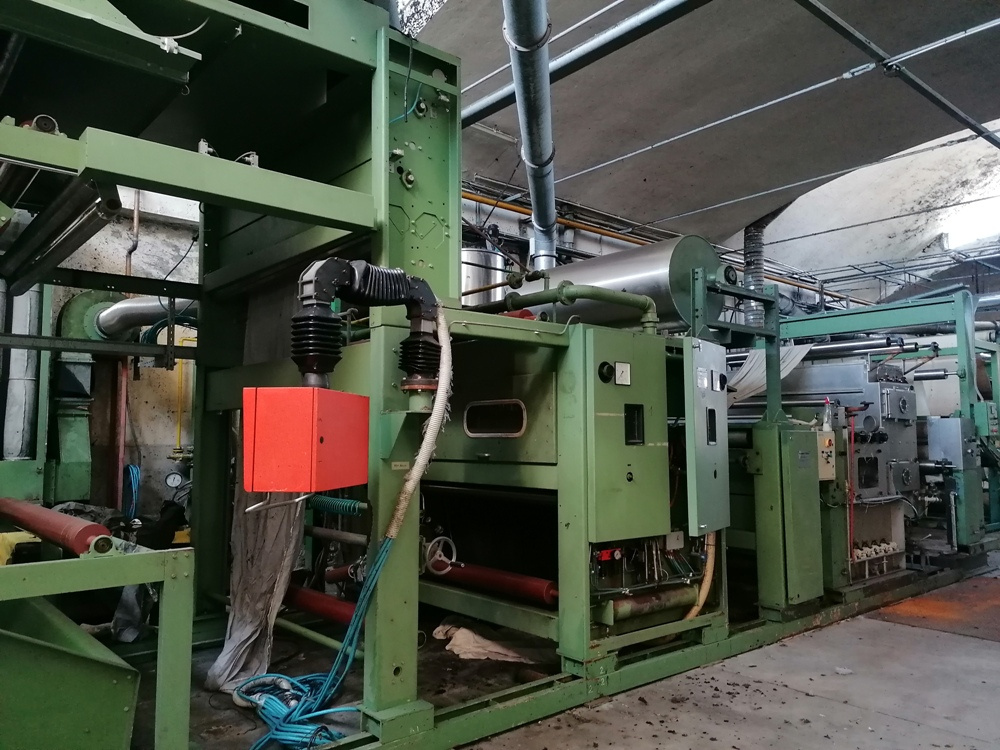

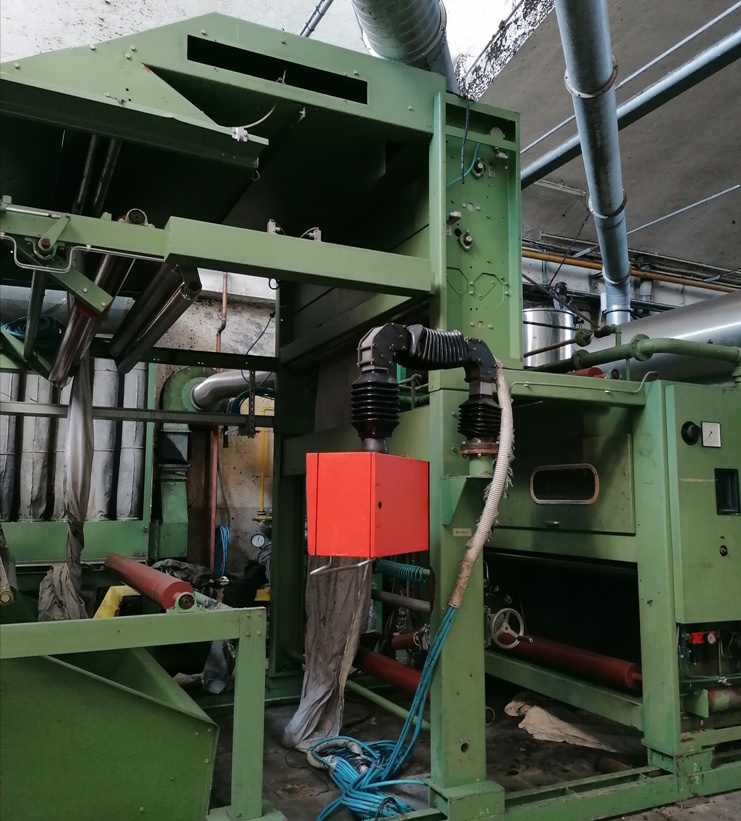

OSTHOFF Singeing /Desizing line - roll. width mm.2000  (work.width mm. 1850) – year 1991 -consisting of :

1 Entry frame with brake , E+L  fabric cloth guide and J-Box for cloth accumulator

1 Brushing / beating unit – with 2 brushes cylinders  – with suction device

1 OSTHOFF Singeing – U  80 type – UNIVERSAL type - n.02 burners type DOUBLE-JET – with automatic self-turning device at the stop of machine –  n.08 water cooled cylinders –  with n.03 burning positions :

1-Tangential

2-Direct on to the fabric

3-Direct on to the cylinders

Adjustable  parameters :

- lame-fabric distance

- flame intensity

1 Brusching / beating unit  – for burned waste – with 2 brushing cylinders – with suction device and stainless steel wet recovery tank for burned  waste

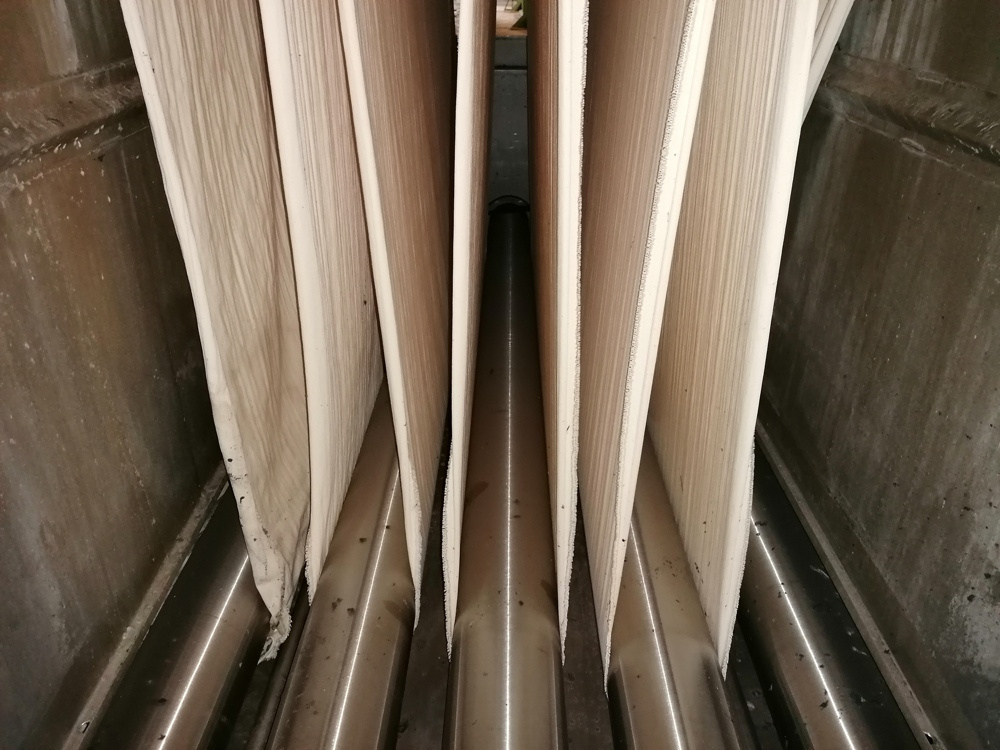

1st Desizing tank – totally made in stainless steel AISI 316 – fabric content mt. 16

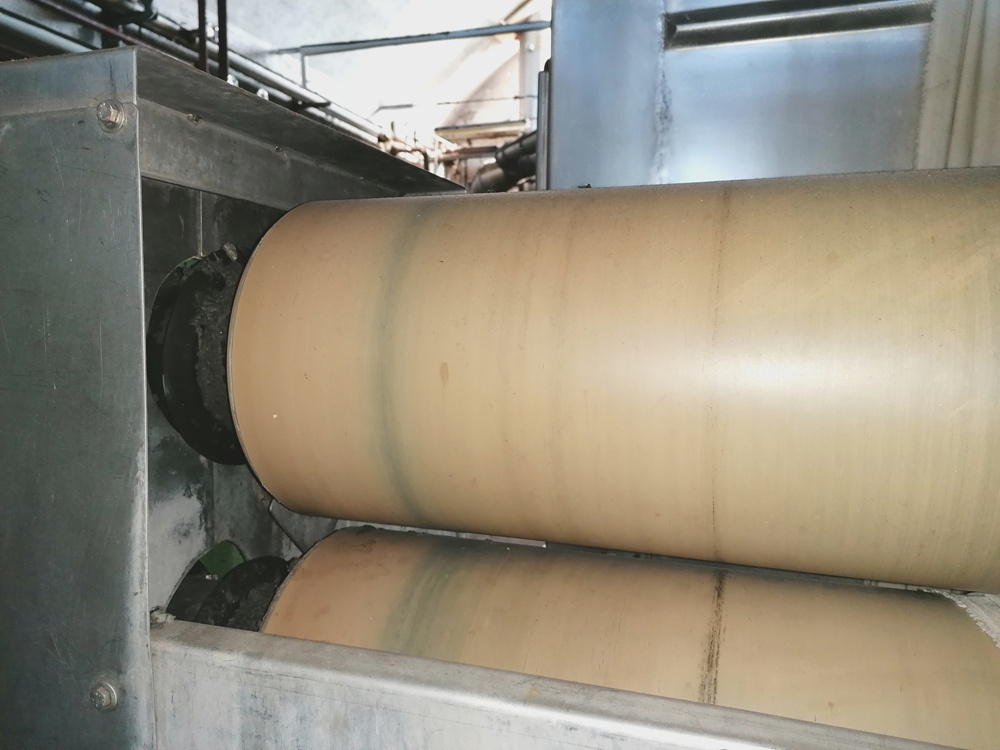

2nd Desizing tank – totally made in stainless steel AISI 316 – fabric content mt. 12 - provided of  n.01 squeezing padder with 2 bowls diam.mm.250  with a amx pressure kg. 10.000

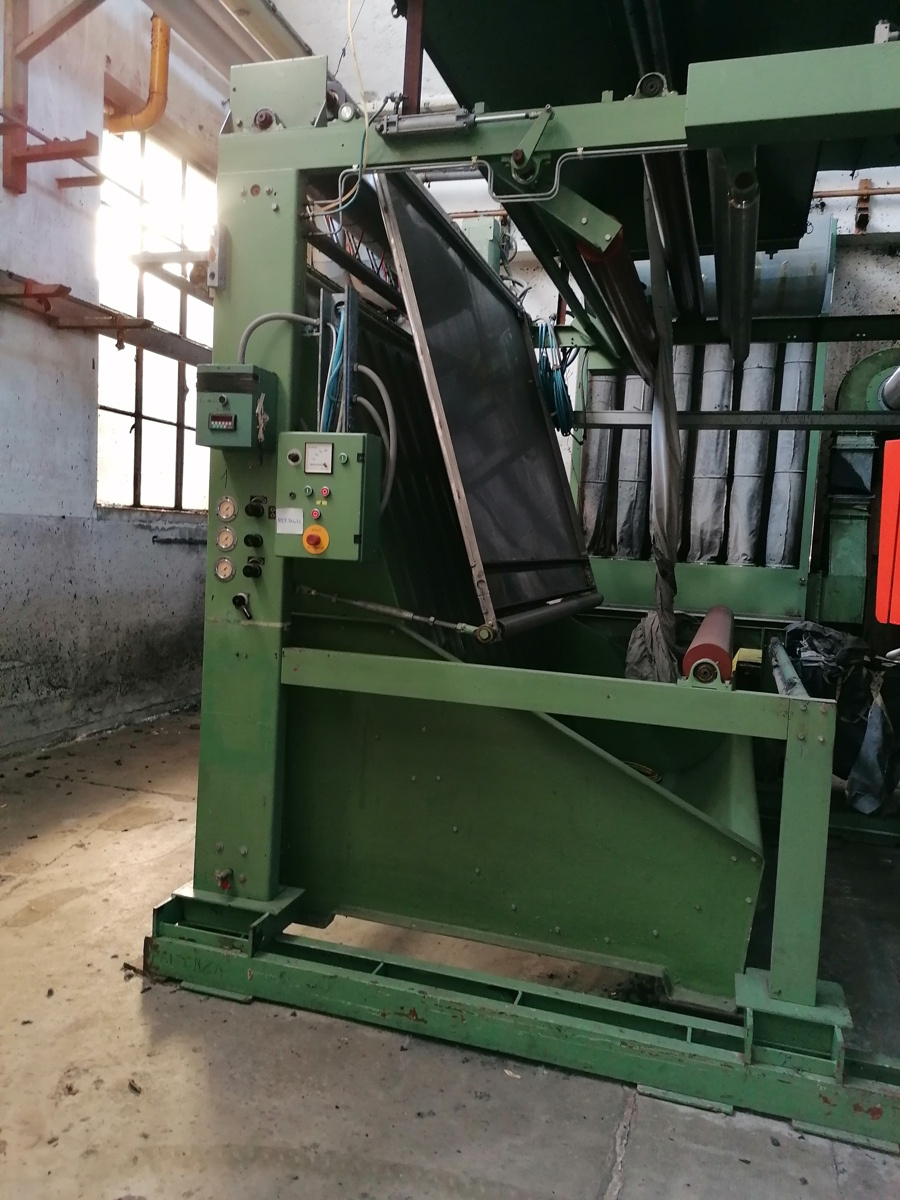

1 Exit  big roll arm device (suitable for A frame trolleys) with max diam.mm.1800 – with pneumatic  pressure adjuster
