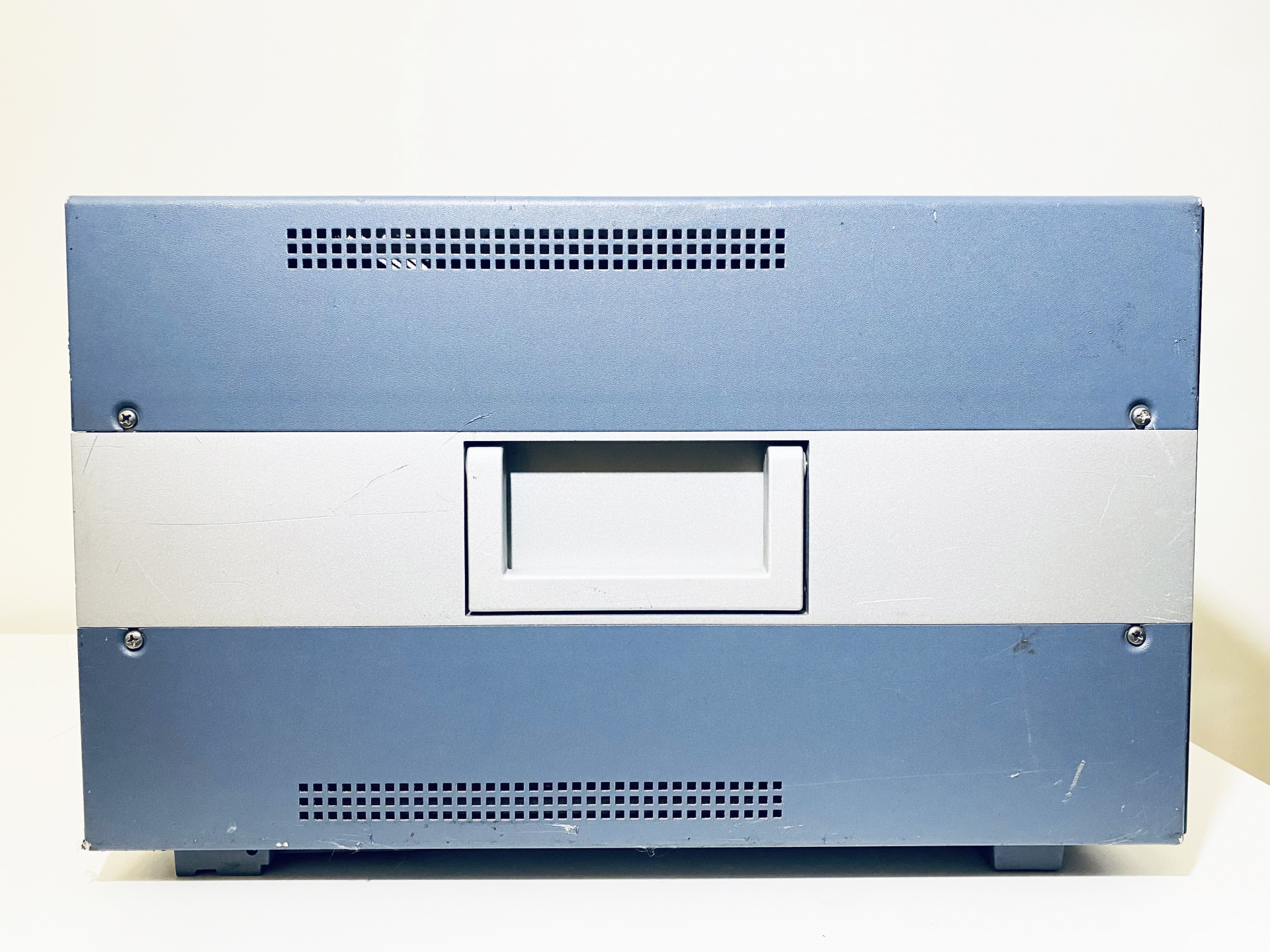

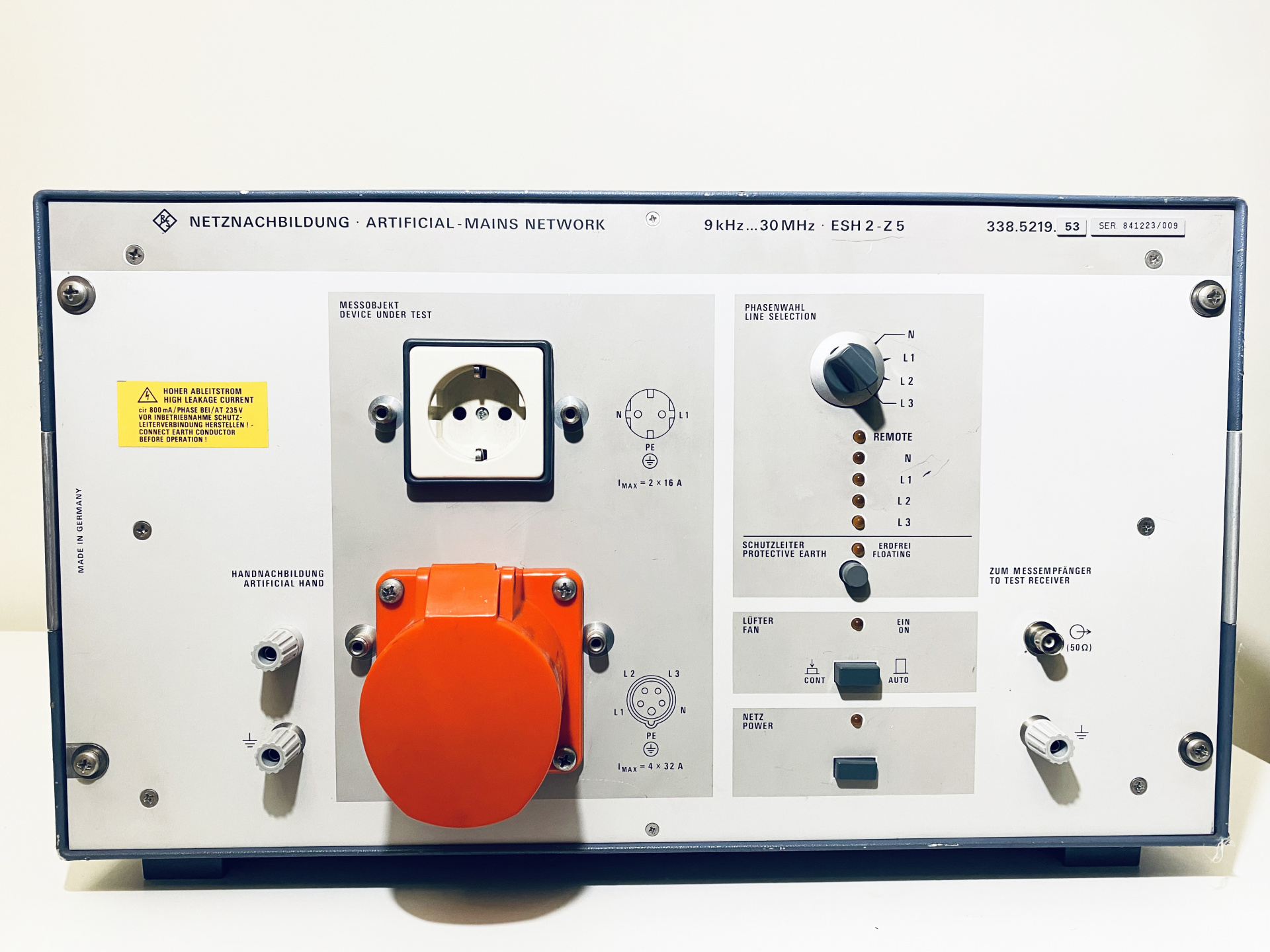

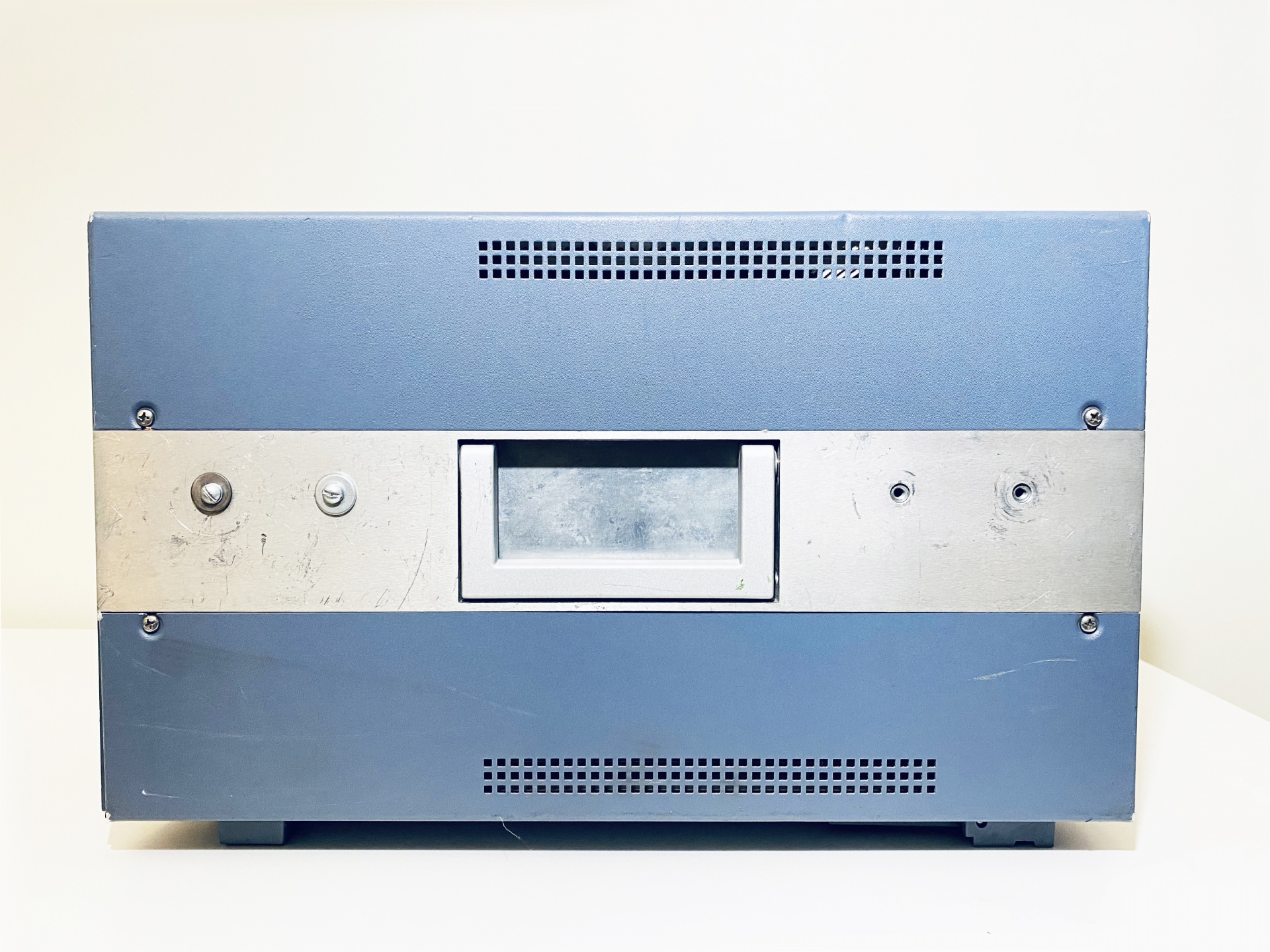

Эквивалент сети Rohde & Schwarz ESH2-Z5

Эквивалент сети Rohde & Schwarz ESH2-Z5 9kHz-30MHz (338.5219.53) 2003 г. Хорошее рабочее состояние.

Сертификат о калибровке №441-115426-2021-841223/009 от 13.12.2021.

Характеристики:

• 4 lines, 25A, Requirements to CISPR 16-1-2:06 Standard, R&S
• V-Network 9kHz - 30MHz, 4 lines, 25A, Requirements to CISPR 16-1-2:06 Standard, R&S ID 0338.5219.53
• The R&S ESH2-Z5 is a four-line V-network and meets the requirements of CISPR
• 16-1-2:06, VDE 0876 and ANSI C63.4 for V-networks with impedance in the frequency range 9 kHz to 30 MHz. It is used to measure RFI voltages on AC supply connections of EUTs and is based on air-core inductances. It contains an artificial hand as well as a PE simulating network that can be bypassed.
• V-network in line with CISPR, EN, VDE, ANSI
• Impedance (50 µH + 5Ω)//50Ω (magnitude and phase) in line with CISPR16-1-2:2006
• Max. continuous current: up to 4 x 25 A
• Short time current (max. 2 min.) up to 4 x 50 A
• Artificial hand and PE simulation network
• Air-core design
• Remote control via TTL levels (compatible with the R&S EMI test receivers)
• Calibrated to CISPR 16-1-2 and ANSI C63.4

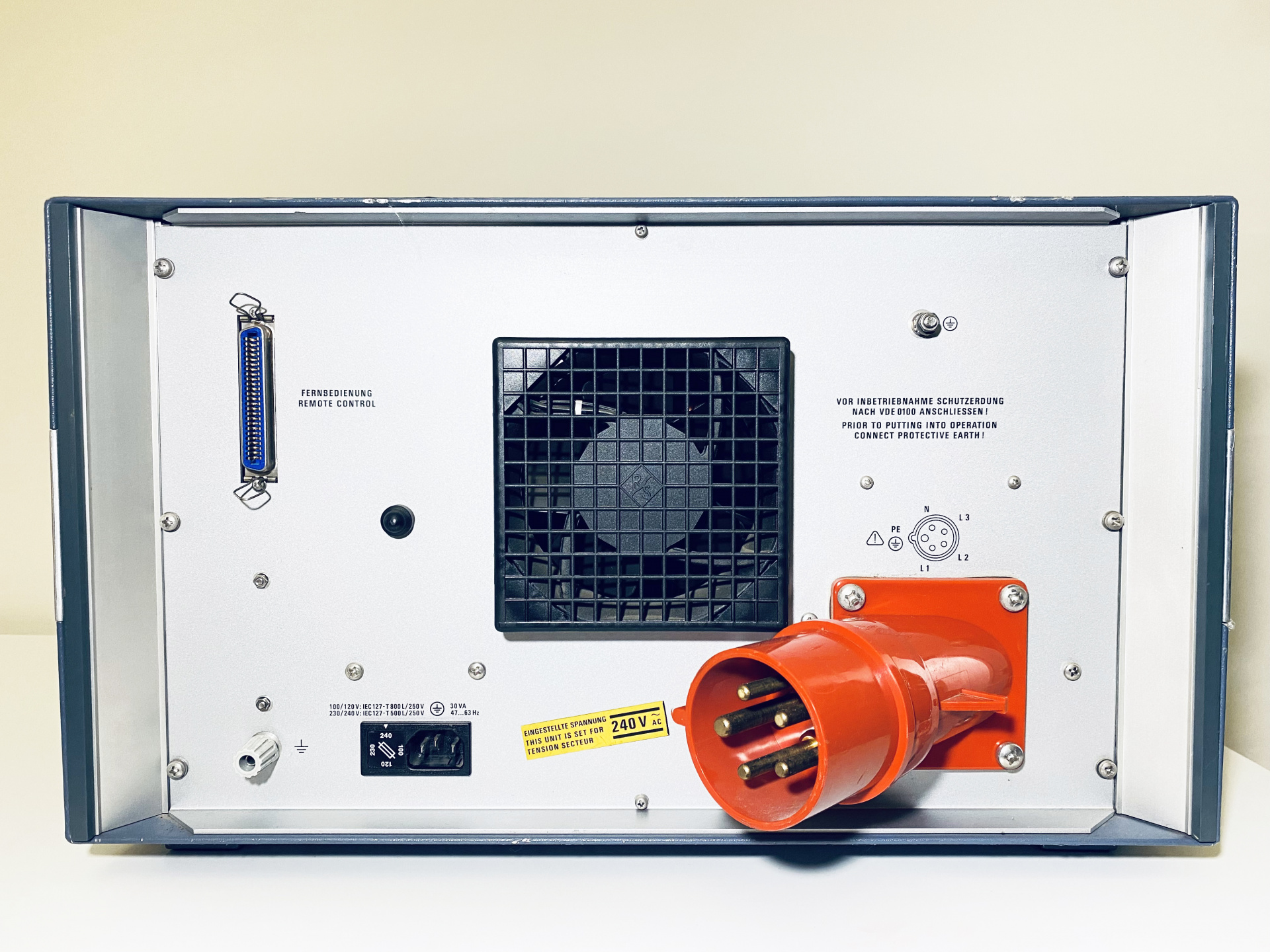

• Built-in fan with its own AC supply provides automatically controlled or permanent cooling

Стоимость $6700. Безнал без НДС.
