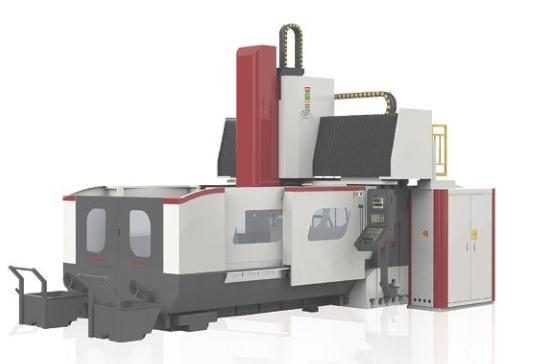

GMC1611 портальный обрабатывающий центр с ЧПУ FANUC

Specifications

Units

GMC1611

Table size

mm

1800x800

X axis travel

mm

1600

Y axis travel

mm

1100

Z axis travel

mm

600

Distance from spindle axis to column surface

mm

406.5

Distance between spindle nose and worktable surface

mm

140-740

Columns distance

mm

1100mm

Distance between table and cross beam

937

T slot(number-width-pitch)

5-18x140

Max. spindle speed

rpm

8000

Spindle taper

mm

BT40 (Optional:BT50 )

Main motor power

kw

15/18.5

Guide rail type

Linear rail

X/Y/Z rapid traverse speed

m/min

12/12/12

Max.table load

Kg

2500

Distance from table to floor

mm

Around 800

Cutting feed speed

mm/min

1-10000

Positioning accuracy

mm

±0.005/300

Repeat positioning accuracy

mm

±0.004

Tool magazine

Arm 24

Max. tool diameter

mm

φ78 (Adjacent)/ φ120(Apart)
Optional: φ112 (Adjacent)/ φ200(Apart)

Max.tool weight

kg

8 (Optional: 18)

Machine weight

kg

13000

Overall dimension

mm

4500x3000x3600
