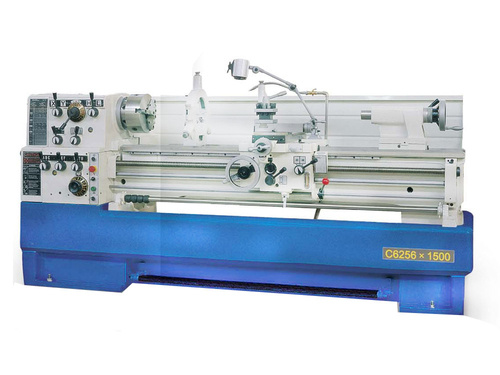

Настольно-токарный станок с низкой ценой C6251

Specification

Models

C6251×1000/1500/2000/3000

C6251V×1000/1500/2000/3000

C6256×1000/1500/2000/3000

C6256V×1000/1500/2000/3000

CAPACITY

Swing over red

510mm(20")

560mm(22")

Swing over cross slide

305mm(11-7/8")

355mm(13-3/4")

Swing in gap diameter

735mm(29")

785mm(31")

Valid length of gap

200mm(8")

Distance between centers

1000mm(40")

1500mm(60")

2000mm(80")

3000mm(120")

1000mm(40")

1500mm(60")

2000mm(80")

3000mm(120")

Center height

1135mm

1160mm

Width of bed

350mm(13-3/4")

HEADSTOCK

Spindle nose

D1-8

Spindle bore

80mm(3-1/8")

Taper of spindle bore

No.7Morse

Range of spindle speed

12changes25-1600r/min

25～1600r/min（variable）

12changes25-1600r/min

25～1600r/min（variable）

FEEDS AND THREADS

Compound rest travel

130mm(5-1/8")

Cross slide travel

316mm(12-15/16")

Lead screw thread

6mm or 4T.P.I

Max. section of tool

25×25mm(1×1")

Longitudinal feeds range

35 kinds 0.059-1.646mm/rev (0.0022"-0.0612"/rev)

Cross feeds range

35 kinds 0.020-0.573mm/rev (0.00048"-0.01354"/rev)

Threads metric pitches

47 kinds 0.2-14mm

Threads imperial pitches

60 kinds 2-112T.P.I

Threads diametral pitches

50 kinds 4-112D.P.

Threads module pitches

39 kinds 0.1-7M.P.

TALLSTOCK

Quill diameter

75mm(3")

Quill travel

180mm(7")

Quill taper

No.5Morse

Cross adjustment

±13mm(±1/2")

MOTOR

Main motor power

7.5kW(10HP)3PH

Coolant pump power

0.1kW(1/8HP),3PH

DIMENSION AND WEIGHT

Overall dimension(L×W×H) (cm)

239×115×143

284×115×143

334×115×143

434×115×143

239×115×146

284×115×146

334×115×146

434×115×146

Packing size(L×W×H) (cm)

245×115×174

290×115×174

340×115×174

440×115×174

245×115×174

290×115×174

340×115×174

440×115×174

Net weight/Gross weight (kg)

2035/2415

2160/2550

2435/2840

2805/3270

2160/2555

2285/2690

2560/2980

2930/3410
