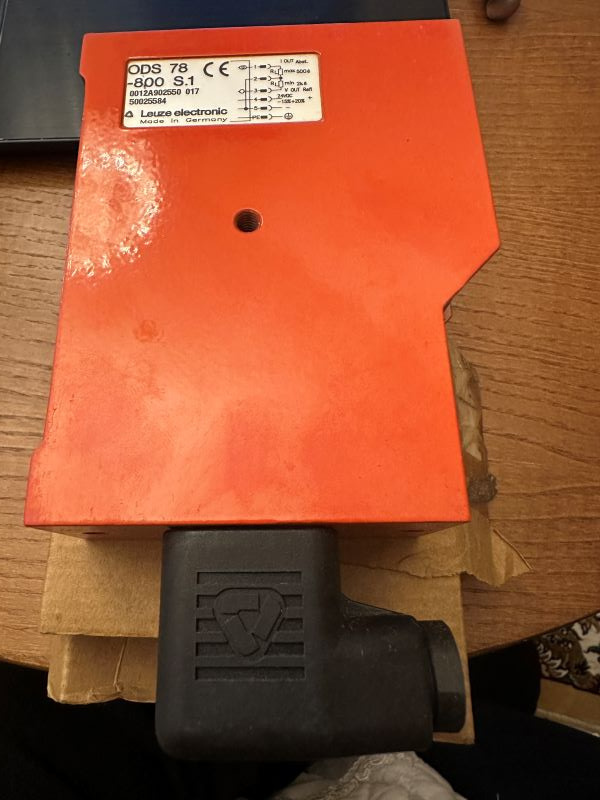

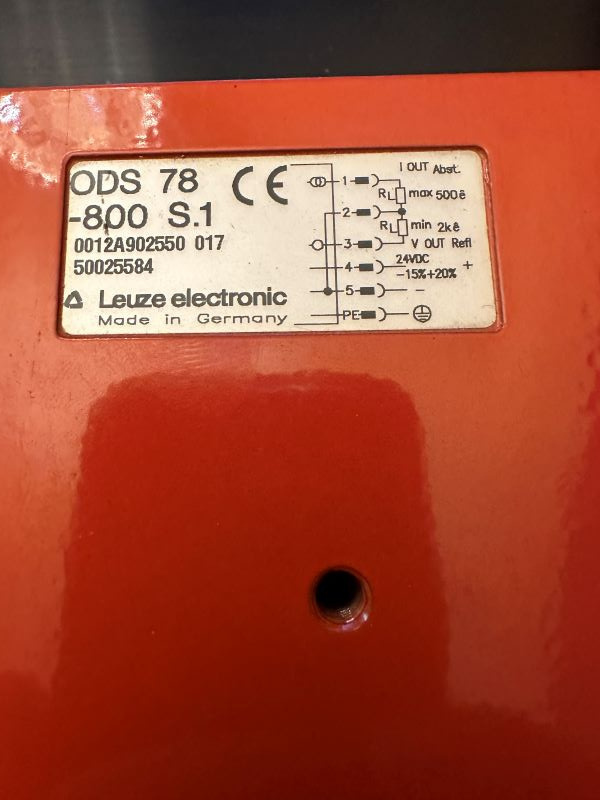

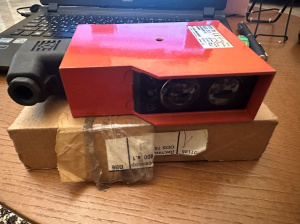

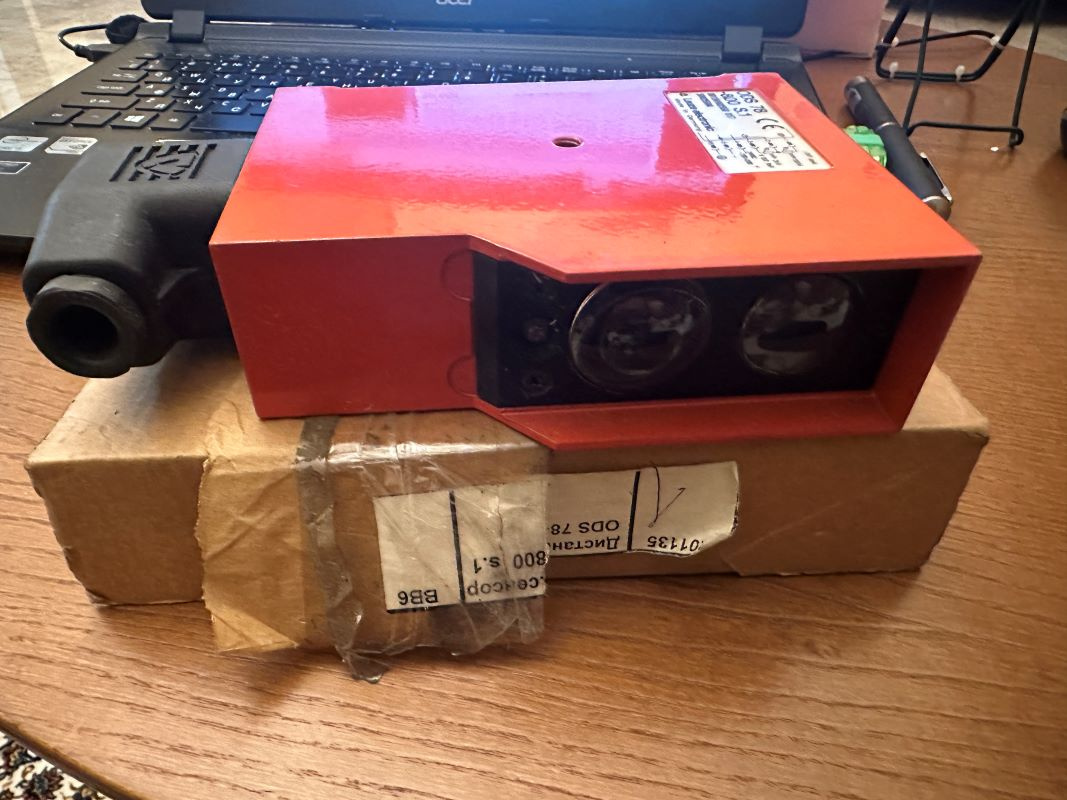

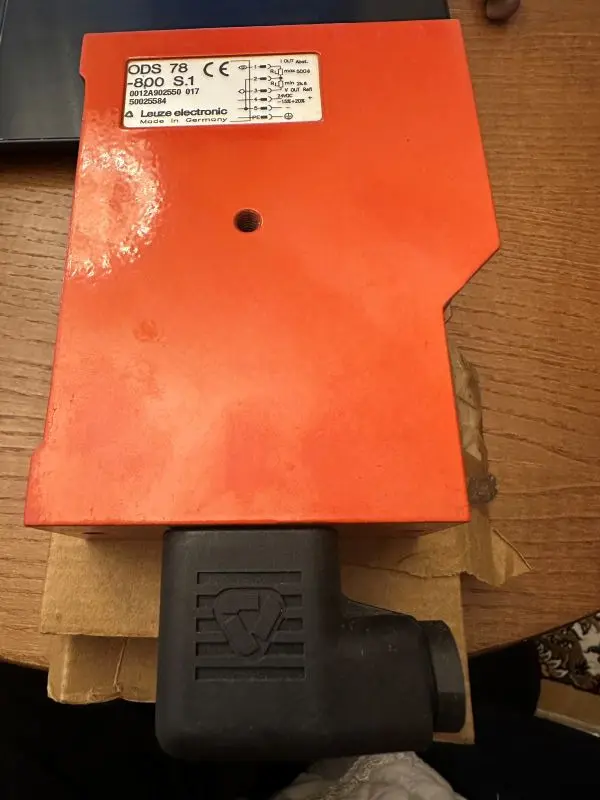

Фотодатчик LEUZE ODS-78-800-S

Manufacturer:  LEUZE
Type:  OPTICAL DISTANCE SENSOR
Order code: ODS 78-800S
Part No.: 50014599

Measurement range: 300 … 800 mm
Running in period: 15 min
Operating Voltage: 24 V DC
Switching frequency: 100 Hz
Analogue output: RL ≥ 2kΩ (voltage) RL ≤ 500 Ω (current) Monitoring output: 1 … 10 VDC ,RL ≥  2k,
,1 V equals a very dark measured object
,10 V equals a very light measured object
Light source: LED
Wavelength: 880 nm
Light spot diameter: 20 mm
Connector type: Standard plug with screw connections
Enclosure rating: IP65
Ambient Operating temperature: +5 … 50°C
Dimensions: 98 x 38 x 127 mm
Weight: 530 g
Housing: Rectangular
Housing material: Aluminum diecast
Optics cover material: Glass
