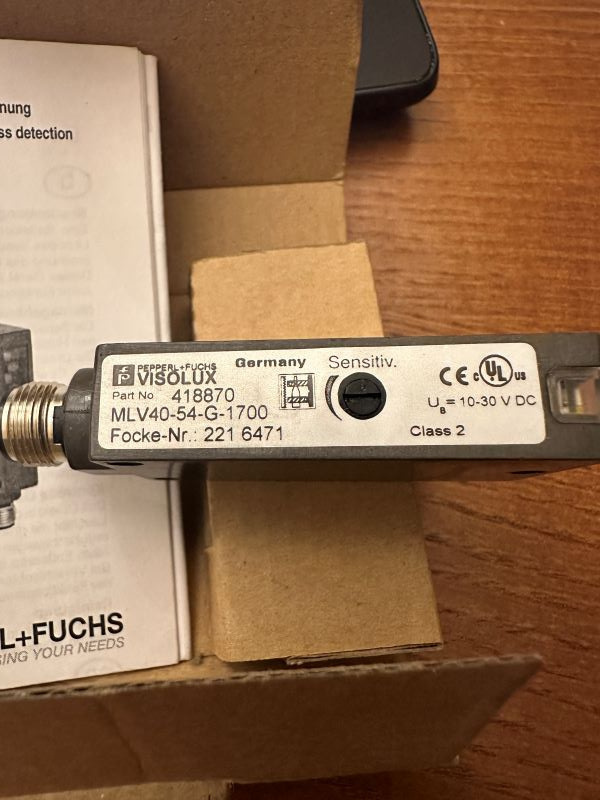

Pepperl-Fuchs MLV40-54-G-1700 Световозвращающий датчик с поляризационным фильтром для обнаружения стекла

Technical data General specifications Effective detection range 0 ... 200 mm Reflector distance 0 ... 200 mm Threshold detection range 400 mm (with H60 reflector) Light source LED Approvals CE, cULus Light type red, modulated light Diameter of the light spot approx. 8 mm at 200 mm detection range Angle of divergence approx. 2 ° Ambient light limit 75000 Lux Indicators/operating means Function display LED green, lights up when light beam is free red LED when falling short of the stability control Operating elements sensitivity adjuster Electrical specifications Operating voltage 10 ... 30 V DC Ripple 5 % No-load supply current I0 40 mA Output Switching type dark On - output 1 ; light ON -output 2 Signal output 2 pnp, antivalent, short-circuit proof, protected against reverse polarity, with internal 10 kOhm pull-down Switching voltage max. 30 V DC Switching current max. 200 mA Switching frequency f 500 Hz Response time 1 ms Standard conformity Standards EN 60947-5-2 Ambient conditions Ambient temperature -20 ... 60 °C (253 ... 333 K) Storage temperature -20 ... 75 °C (253 ... 348 K) Mechanical specifications Protection degree IP65 Connection M12 connector, 4-pin Material Housing aluminium Optical face glass Mass 100 g
