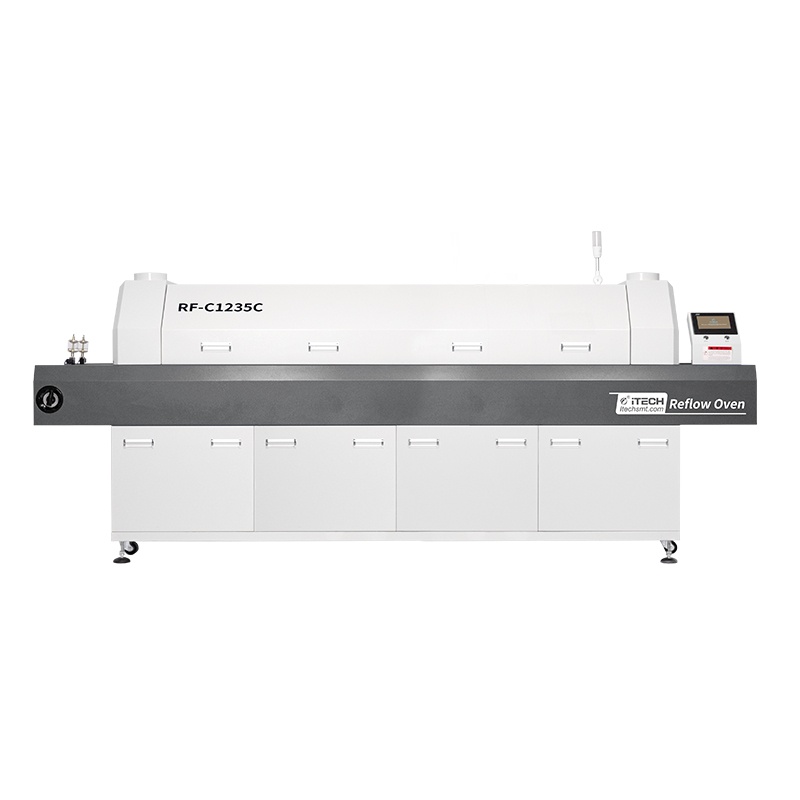

iTECH RF-C1235C 12-зонная конвекционная печь для поверхностного монтажа с горячим воздухом и цепью

12 ZONES 2060MM THERMAL CONVECTION REFLOW SOLDERING MACHINE

It is used to join electronic components to a PCB printed circuit board. Tunnel structure of automatic conveyor is made up of preheating zones, soldering zones and cooling zones. The heating zones can be controlled separately through PID. Meshwork and chain convey the PCB synchronously and conveyor speed can be controlled by PID. Chain conveyor ensures that on-line connection between reflow oven and other equipment is accessible.

• PID Digital Temperature Control System
• High temperature Lead Free Soldering applications up to 400°C
• Horizontal Convection heating technology
• Stainless steel conveyor
• 2060mm Long Heat Tunnel
• Upper 6 Heating Zones + Bottom 6 Heating Zones
• 350mm wide conveyor with Chain
• Easy lift clamshell design
• Heat resistance fan
• High-Efficiency and Energy-Saving Heating Tube

Specification

Model: RF-C1235C

12 heating zones (upper 6 zones, lower 6 zones)

Heating method: hot air

Cooling zone: 3 natural air cooling

Length of heat tunnel: 2060 mm

Conveyor width: 450 mm

Track width adjustable max: 350 mm

PCB width: max 350mm

PCB height tolerance: ≤25mm (can be customized)

Conveyor height: 880±20 mm

Conveyor speed: 0-1500 mm/min

Conveyor direction: left→right

Preheating time: 15-20 min

Soldering time: 3.5-5.5 min

Temperature range: 0°C-400°C

Digital PID temperature control system

Voltage: 380/50Hz/3 phases

Starting power: 22 W

Working power: 4.5 W

Net weight: 560 kg

Gross weight: 755 kg

Machine size: 3380*820*1360 mm

Dimensions: 365*94*151 cm
