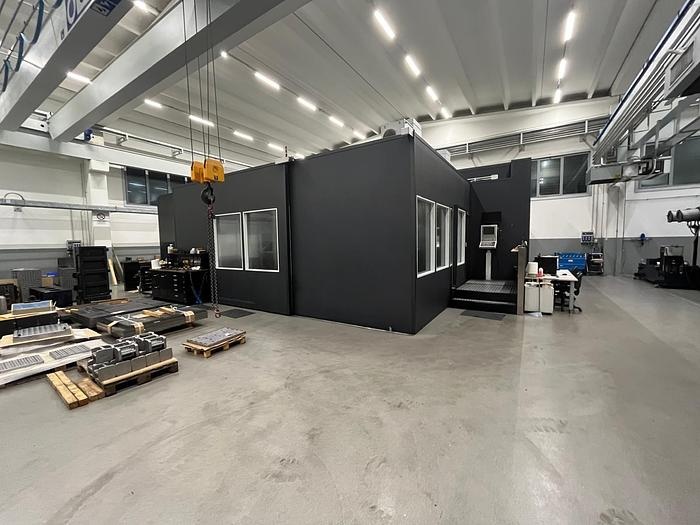

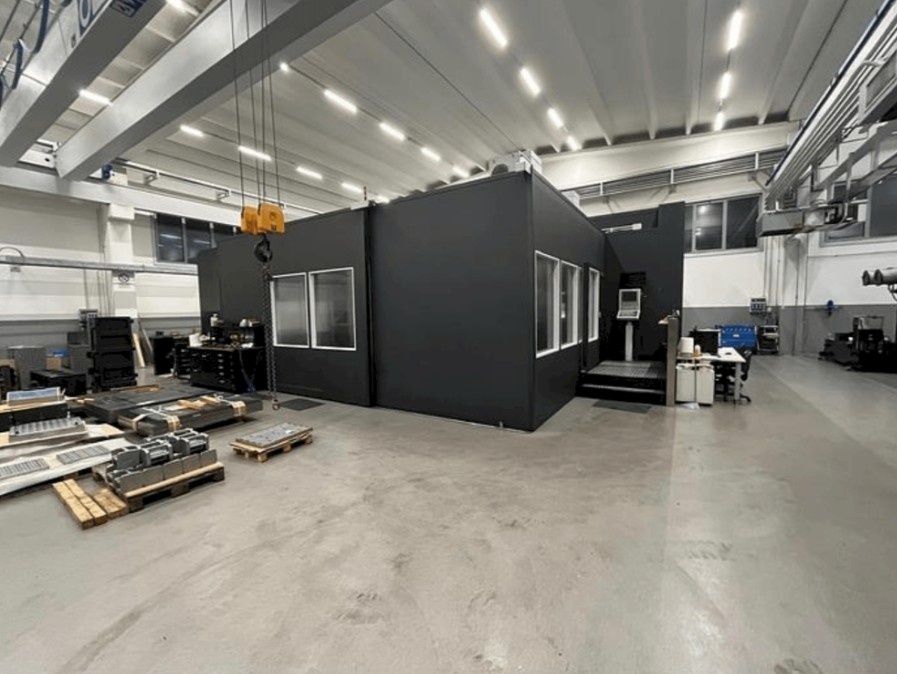

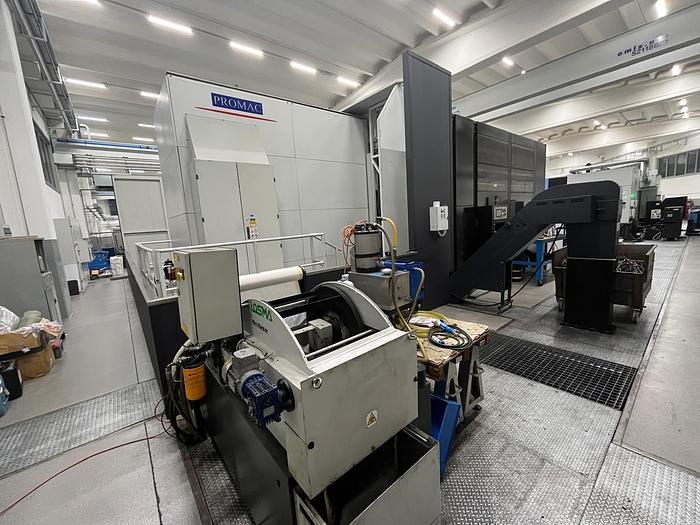

5-осевой Портальный центр PROMAC ETESIAN HMC. A PORTALE

Description 5-AXIS GANTRY CENTER PROMAC ETESIAN HMC. A PORTALE (2010)

5-axis machining center

 Travel: X 6,000 mm, Y 2,000 mm, Z 1,200 mm

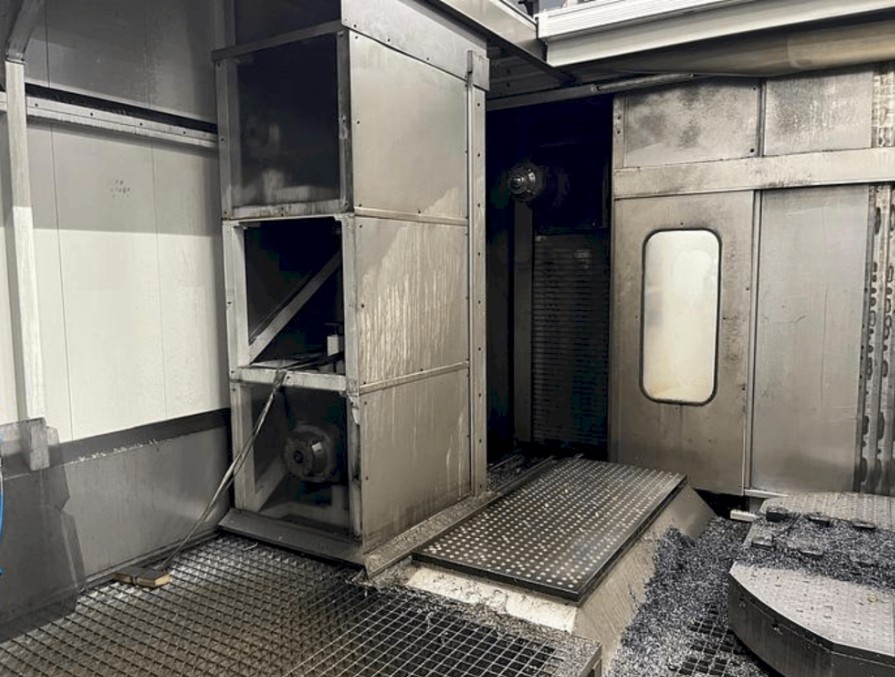

???? Translating Roto Table 2,000 X 2,000 mm – capacity 25,000 kg

???? N. 02 orthogonal automatic heads: HSK A 100, HSK A 63, + N. 01 Fixed Head HSK A 100

???? Optional: N.02 CNC Heidenhain iTNC 530, High pressure 40 bar, 3-seater head change magazine, Optical lines, 214-seater tool changer

Specifications

Manufacturer PROMAC

Model PROMAC ETESIAN HMC. A PORTALE

Year 2010

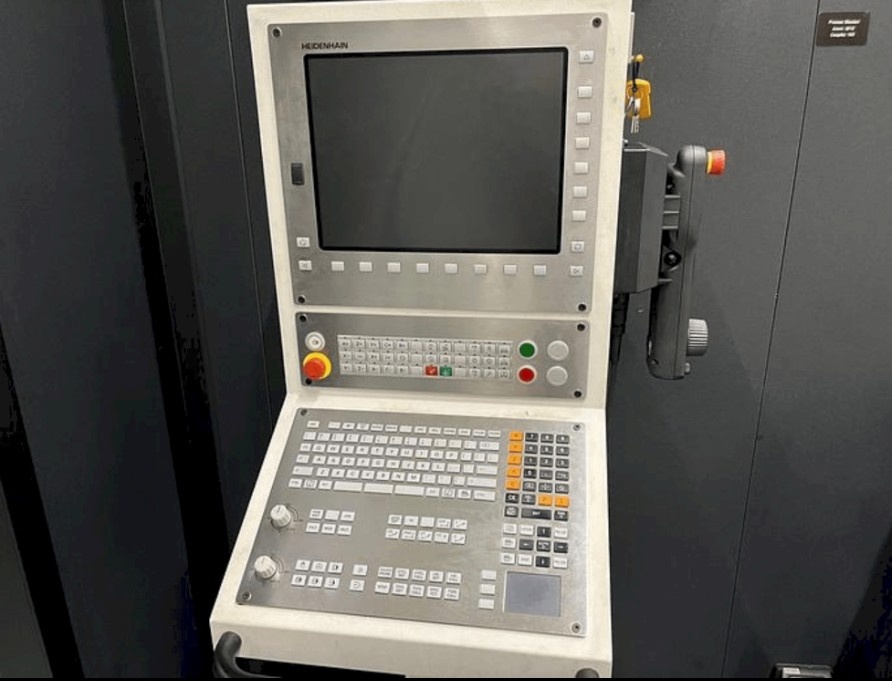

CNC HEIDENHAIN ITNC 530 HSCI

X-axis (travel) 6000

Y-axis (races) 2000

Z-axis (travel) 1200

A-axis (table tilt stroke) +110°/-110°

B-axis (spindle head movement stroke) +110°/-110°

C-axis (table rotation) + 200°/-200°

max dimensions of the workable piece D. 380

Width of the table (board) 2000

Length of the board (table) 2000

Spindle power Kw 45 KW

Spindle speed (main spindle) 6.000/20.000

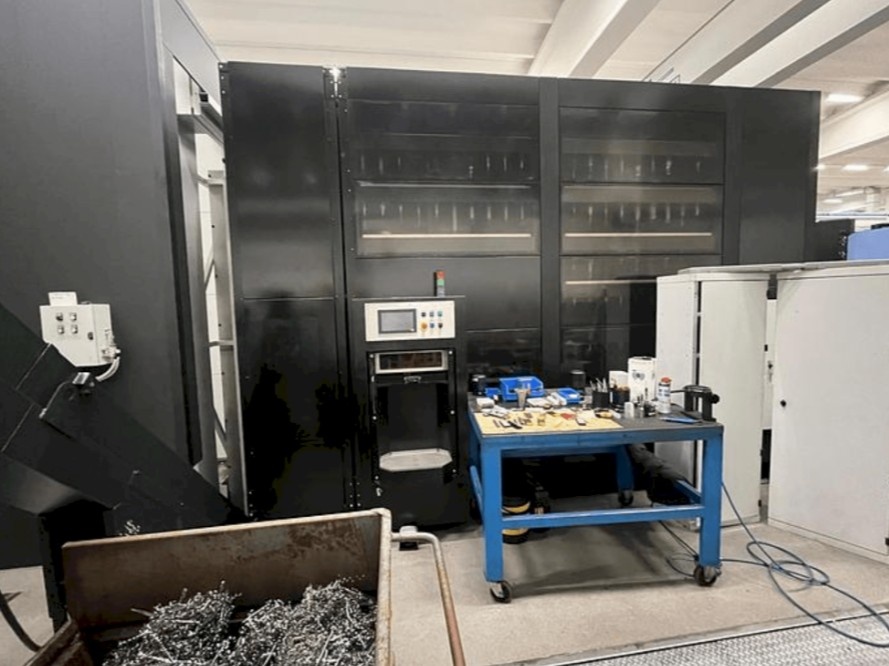

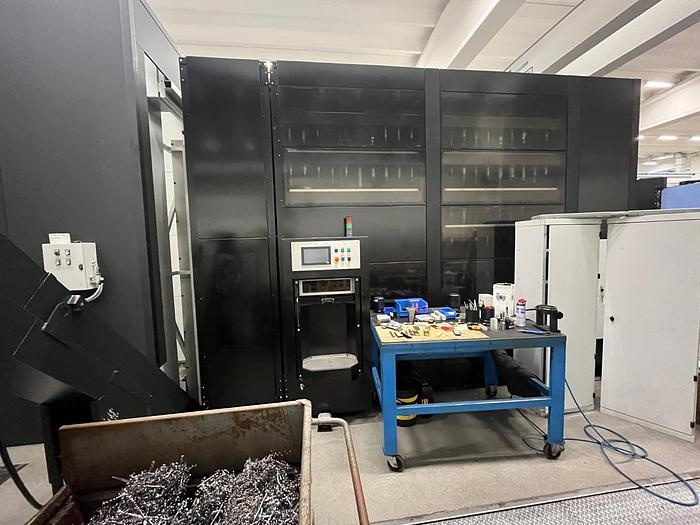

Maximum warehouse capacity 180

Spindle attachment (chuck) HSK 63/100

High pressure system through the spindle 40

Chip conveyor Yes

5-axis continuous package Yes
