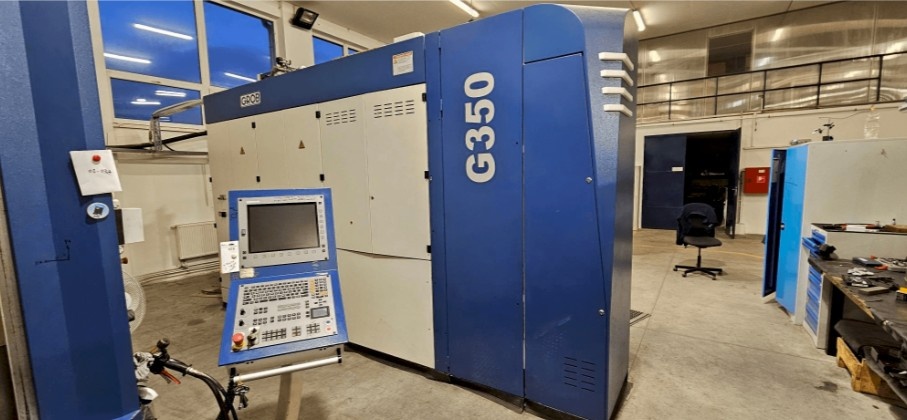

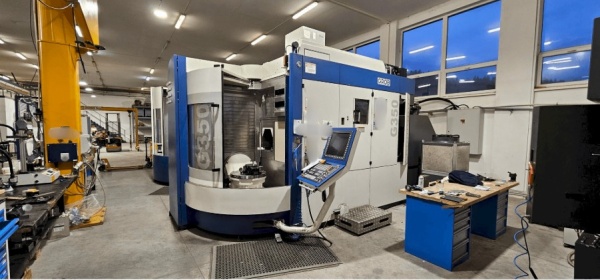

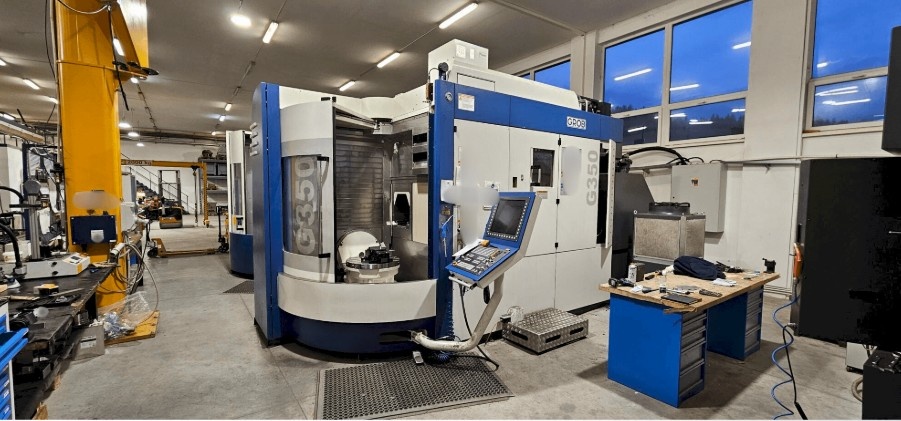

5-осевой центр GROB G350

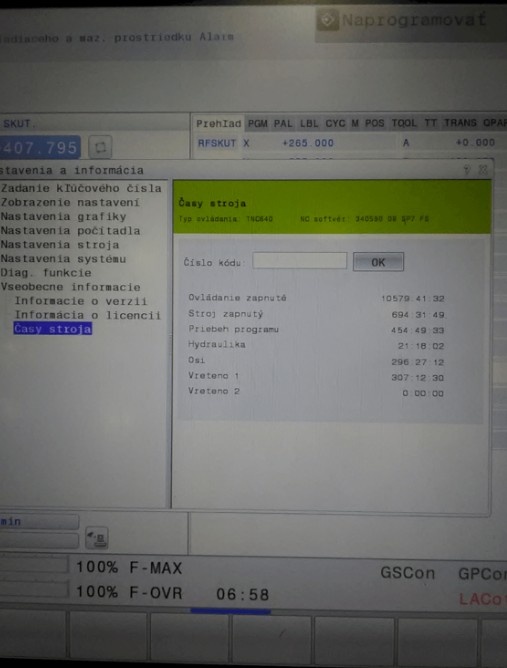

307 часов работы шпинделя !

Basic machine G350 AB Generation 2

Mains supply 400 V, 50 Hz, TN-S

Compressed air system, operating pressure 5 bar, minimum inlet pressure 5 bar

Working space door, manually operated, for manual loading

and unloading

Decentralized extraction system from the working space: 800 m³, filter class H9

Machine protection concept - emulsion machining

Working space lighting

Machine painting according to GROB standard

Machine cooling system with air-cooled cooling unit (11 kW)

Operating / ambient conditions according to GROB standard

Electrical equipment according to EU standard GROB

Technical documentation in Czech

CE mark

Machine control HEIDENHAIN TNC 640

Operating interface (HMI) in Czech.

Rotary axis calibration GSC

Electronic handwheel HR 520 (HEIDENHAIN)

Collision monitoring DCM Collision (HEIDENHAIN)

DXF converter for importing DXF files (HEIDENHAIN)

GROB test fixture for kinematics measurement

1.3 Tilting/rotary table-Rotary table (A' axis)

Rotary table with T-slots (B' axis)

Motor spindle HSK-A 63, 16,000 min-1, 159/206 Nm,

25/32 kW, oil/air lubrication (GROB)

GROB spindle diagnostics GSD

Double disc magazine HSK-A 63 for extra-long

tools with 105 (45+60) tool positions and shorter tool change times

Tool cleaning device

Electromechanical tool length testing device

Laser measuring system LaserControl Micro Compact NT for milling tools, A'=-180° (BLUM)

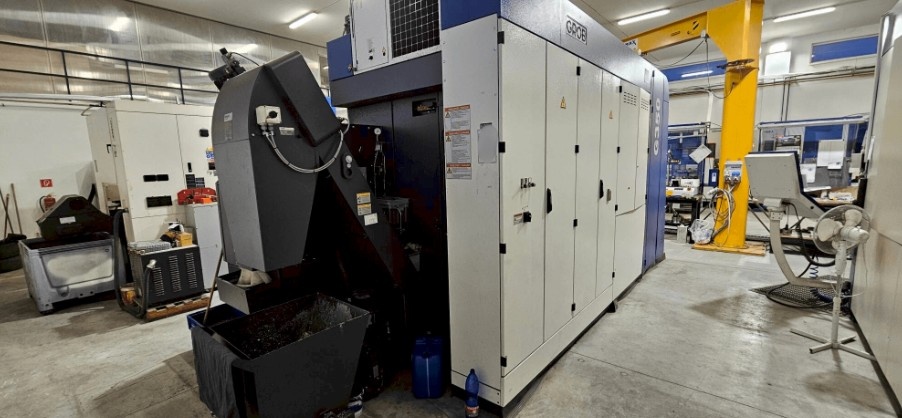

Scraper chip conveyor, 1,100 mm discharge height

Filter unit for cooling lubricant KF220

Cooling lubricant tank

High-pressure cooling lubricant system (10–80 bar, IKZ)

Coolant and lubricant for low-pressure systems

Flow-through cooler for cooling lubricant with air-cooled cooling unit (13 kW)

Compressed air supply through the spindle center

External compressed air supply via flexibly adjustable hose

Cooling lubricant circulation on weekends

Oil collector for cooling lubricant maintenance

Flushing unit for the work area floor

Blow gun in the work area

Washing gun in the work area

Flushing unit (Z-axis)

Clamping hydraulic system for clamping workpieces - Rotary distributor in the rotary table B'

axis with hose installation

Renishaw RMP600 touch probe (including preparations)

3D machine model

Machine accuracy package 2

Plinth on tool magazine door

Machine status light on machine cover
