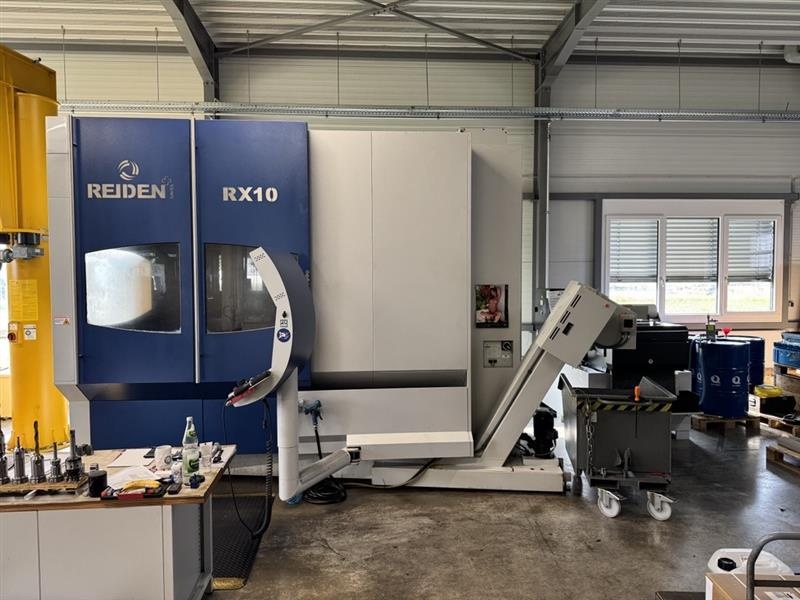

5 осевой обрабатывающий центр REIDEN RX10 5X

REIDEN RX10 5X (2019)

Tech Specs

Control: HEIDENHAIN TNC 640

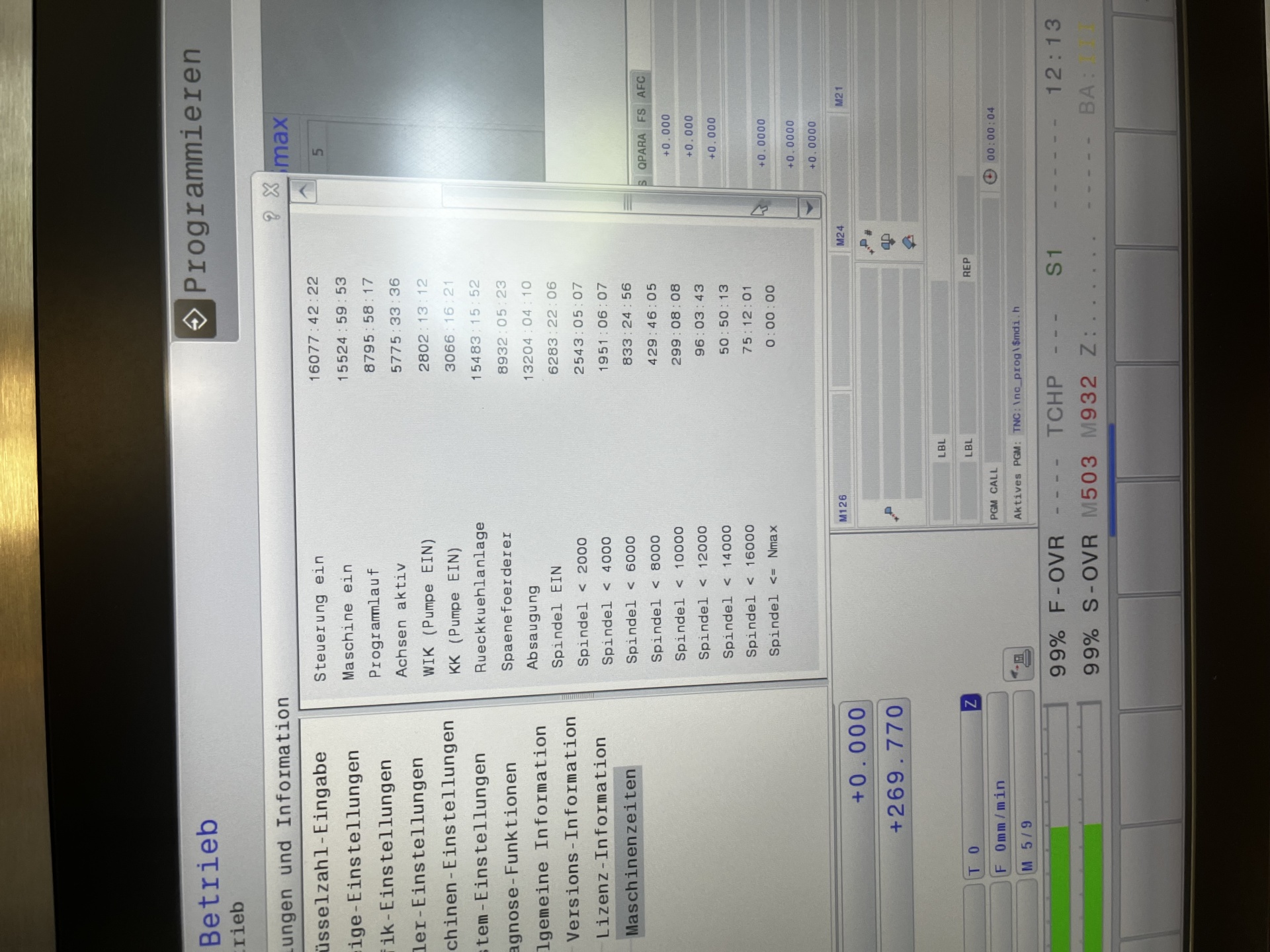

machine on 15524

spindle on 6283

Operation:

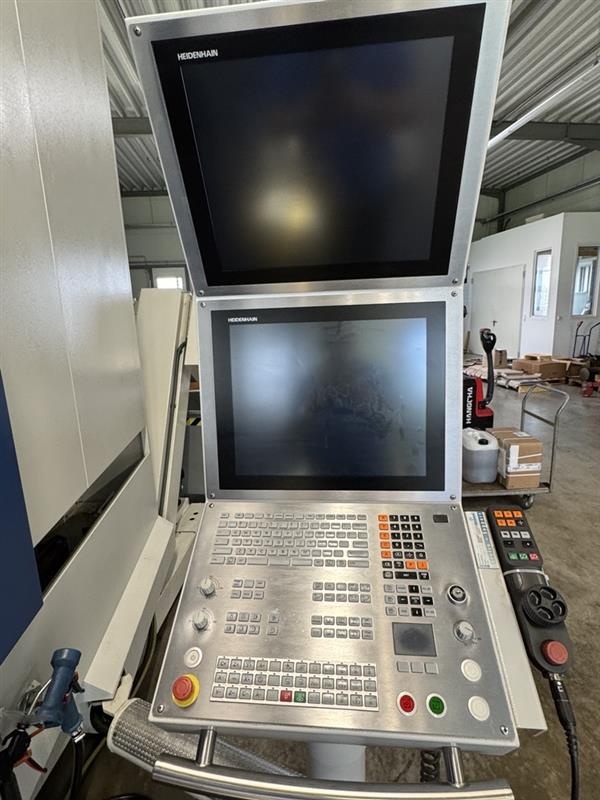

Swiveling control panel with two 19" monitors

HEIDENHAIN HR510 handwheel

3 potentiometers (feed rate, rapid traverse, speed)

3-color status light

HEIDENHAIN DCM (collision monitoring)

Traverse paths:

X-axis: 1,000 mm

Y-axis: 1,100 mm

Z-axis: 810 mm

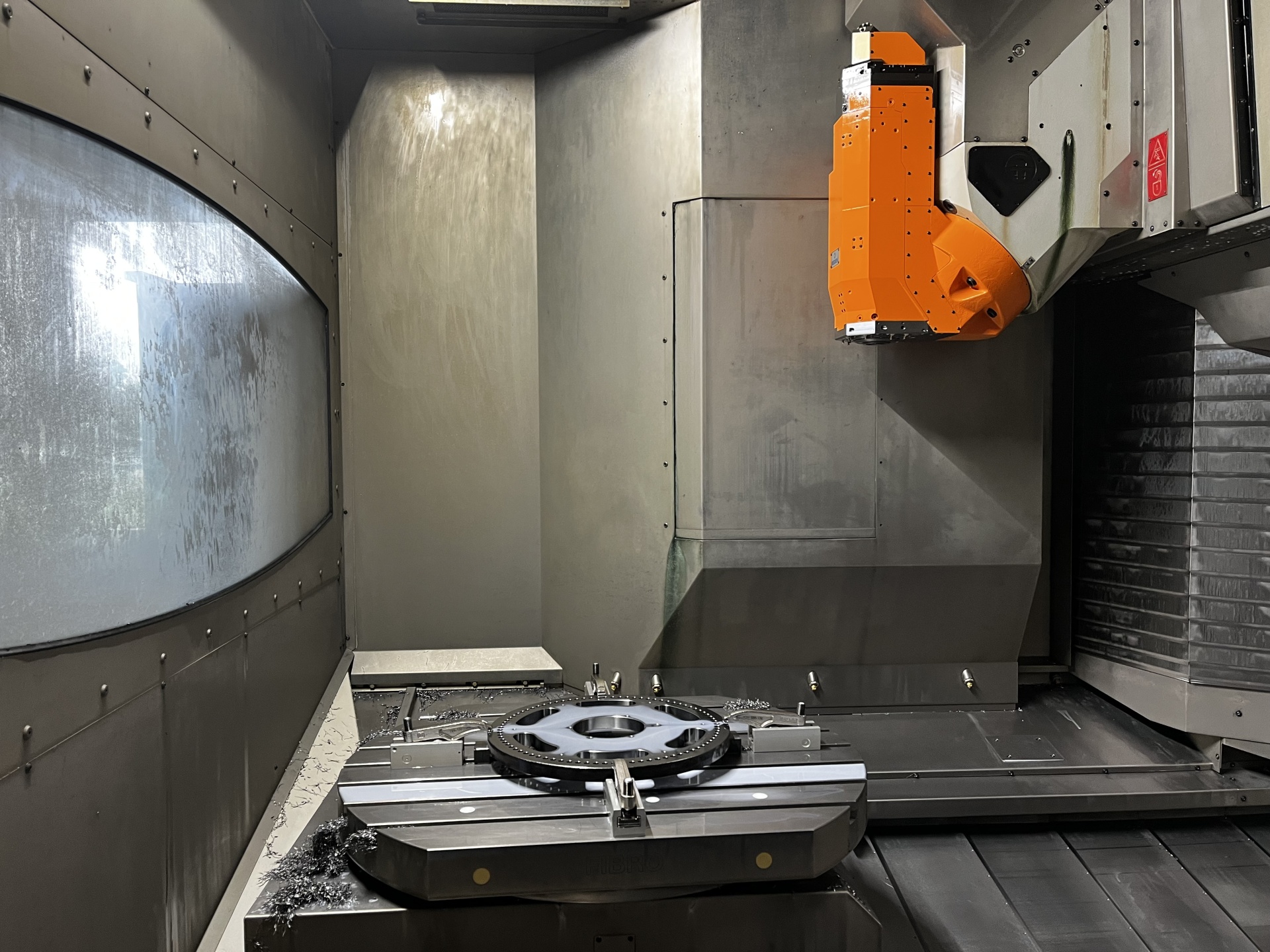

NC rotary table:

Ø 1,000 × 800 mm with T-slots (18H7 / 100 mm)

Drive: Preloaded screw

Oscillating circuit: Ø 1,350 mm

Measuring systems:

Direct path measuring systems (HEIDENHAIN) with sealing air connection

Micro-Epsilon “Spindle Growth System” (thermal spindle compensation)

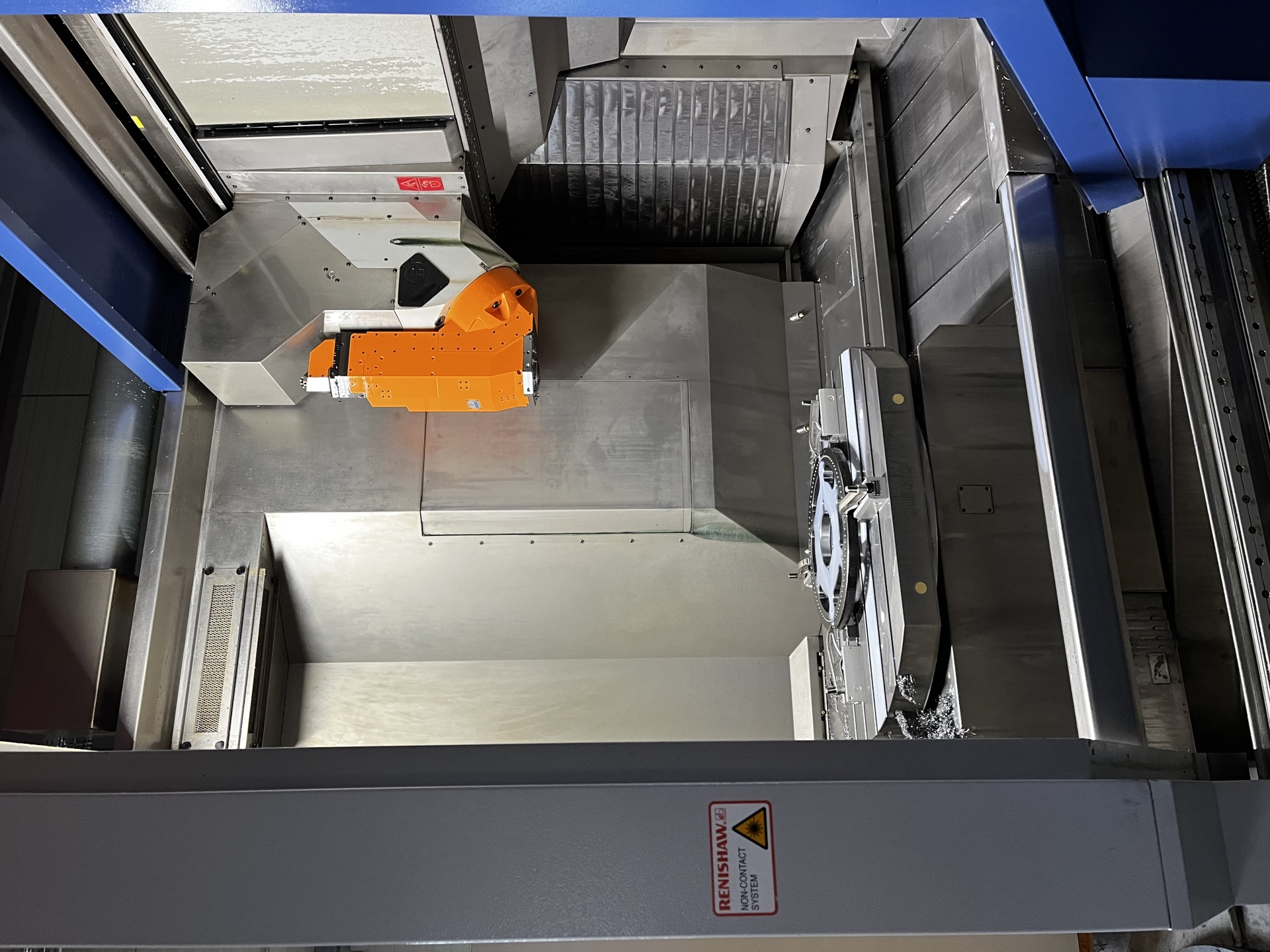

Milling head:

Automatic horizontal/vertical swivel milling head

Tilting range: -1° to +90° (infinitely variable NC axis)

Speed: 16,000 min-¹

Power: 38 kW (100 % ED)

Torque: 105 Nm (100 % ED), 135 Nm (40 % ED), 155 Nm (25 % ED)

Tool holder: HSK 63-A

Tool changer:

Rack magazine with 85 places

5-fold tool loading station

Dialog control panel

Chip transport:

Scraper belt chip conveyor (ejection height: 1,100 mm)

Protective systems:

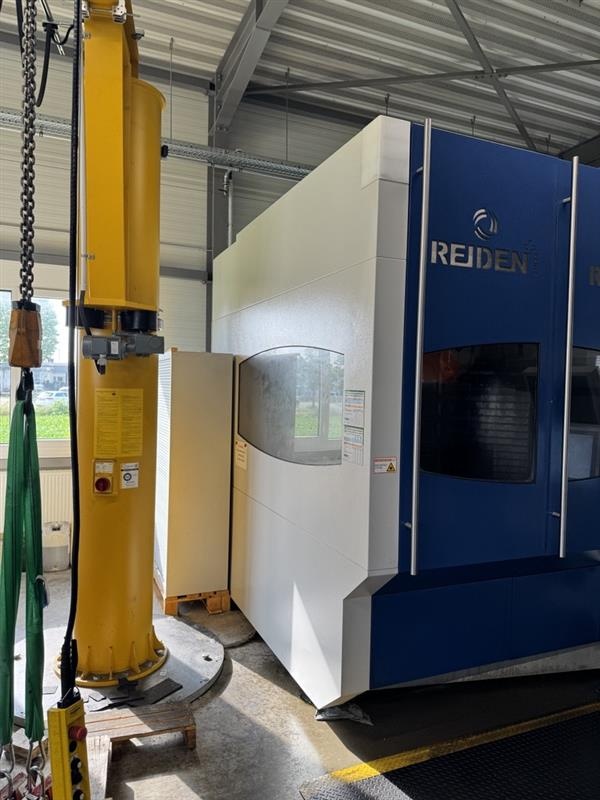

Full-space protective cladding with angled door (for crane loading) and quick-access door

Laminated glass viewing windows

Coolant supply:

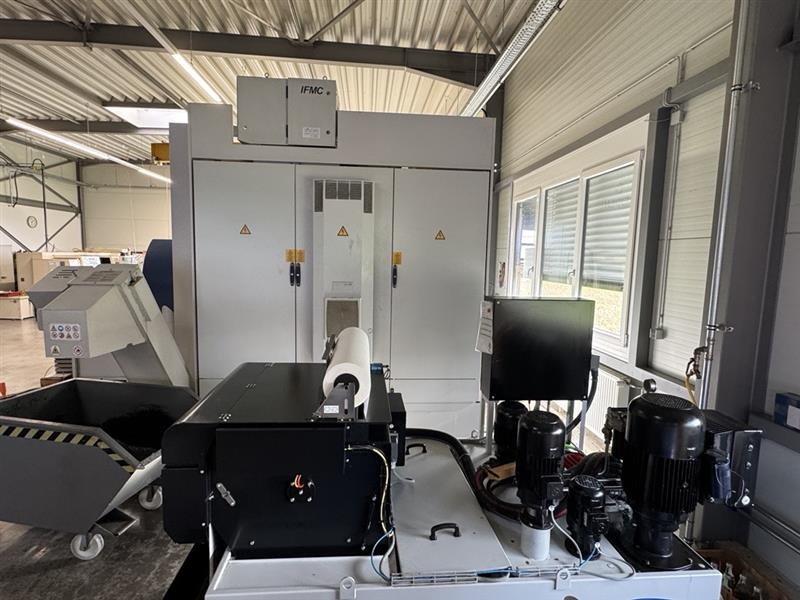

Internal coolant supply (80 bar, 20 l/min) with paper band filter and fine filter (40 µm)

Pressure control per tool via tool table or control panel

Air blast through the center of the spindle (selectable via M function)

Measuring technology:

BLUM TC60 wireless touch probe (incl. KinematicsOpt and calibration ball)

TRS2 Tool breakage detection (for tools from Ø 2 mm)

Oil and emulsion mist extraction (1,800 m³/h suction power)

HEIDENHAIN software options:

AFC (Adaptive Feed Control)

ACC (Active Chatter Control)

DNC option

DXF converter

The machine received a complete update last month. In particular, Reiden replaced the head, which is now of the latest generation and has, among other things, electronic temperature monitoring, which is particularly important in the high speed range.
