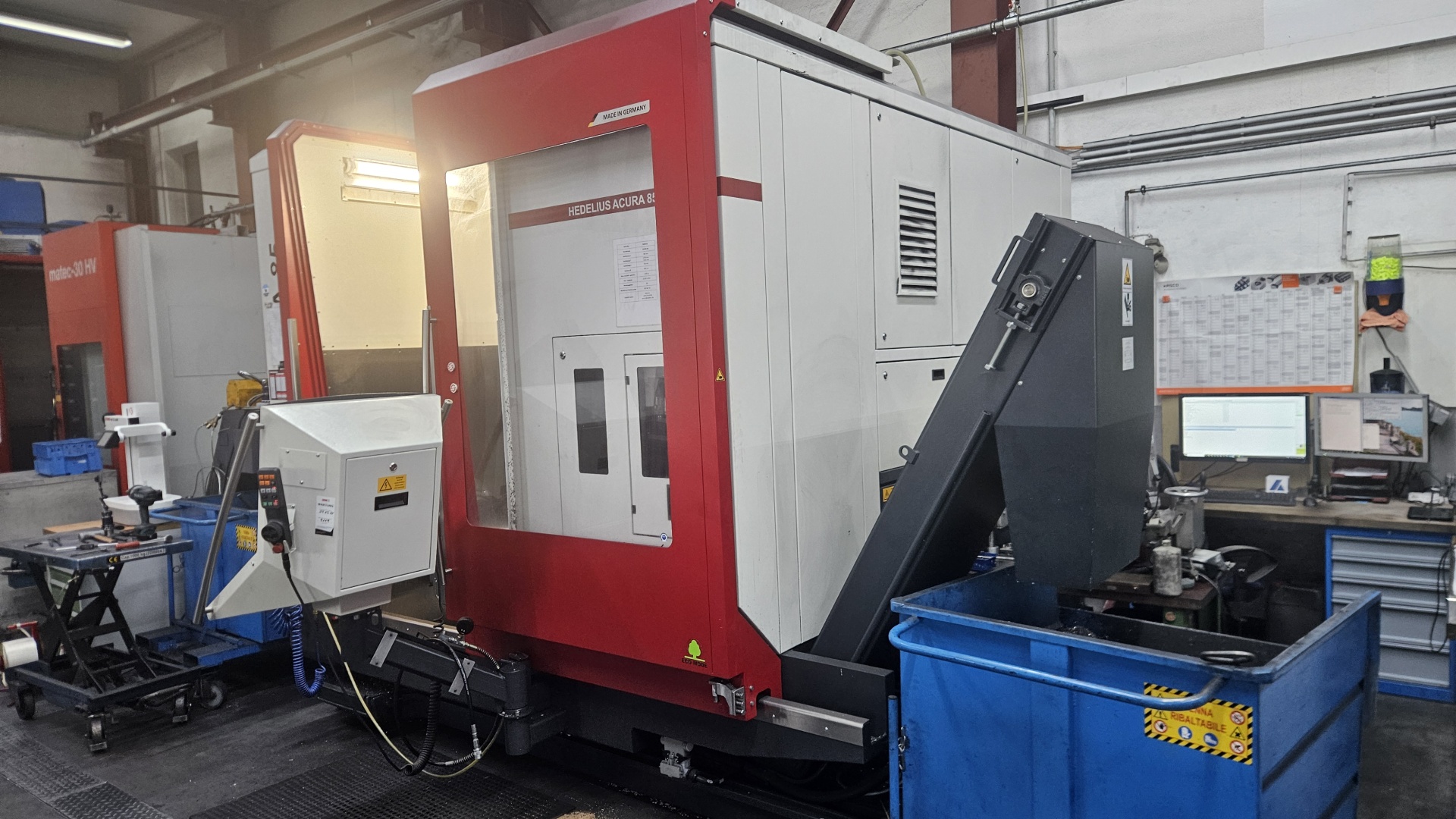

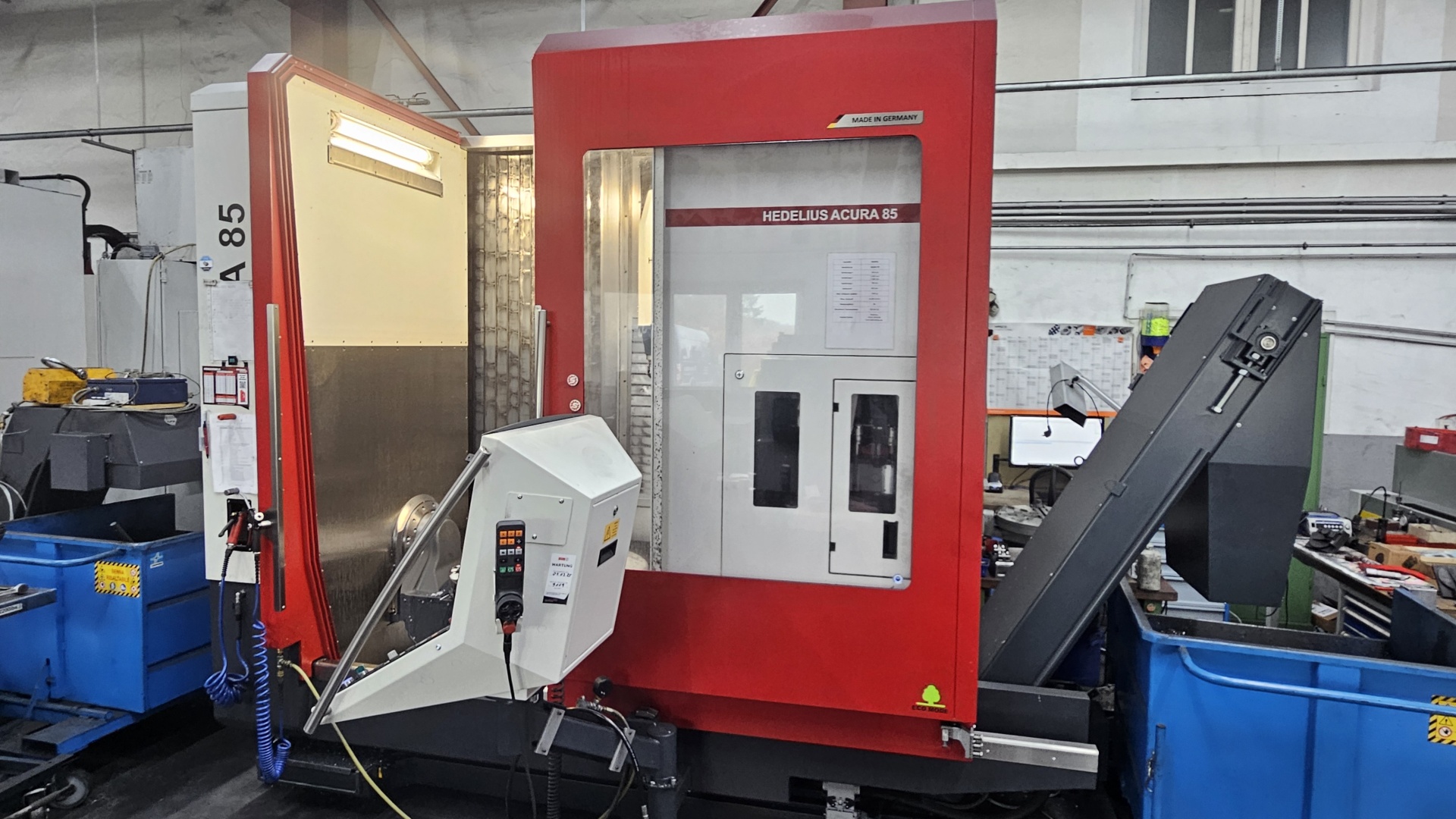

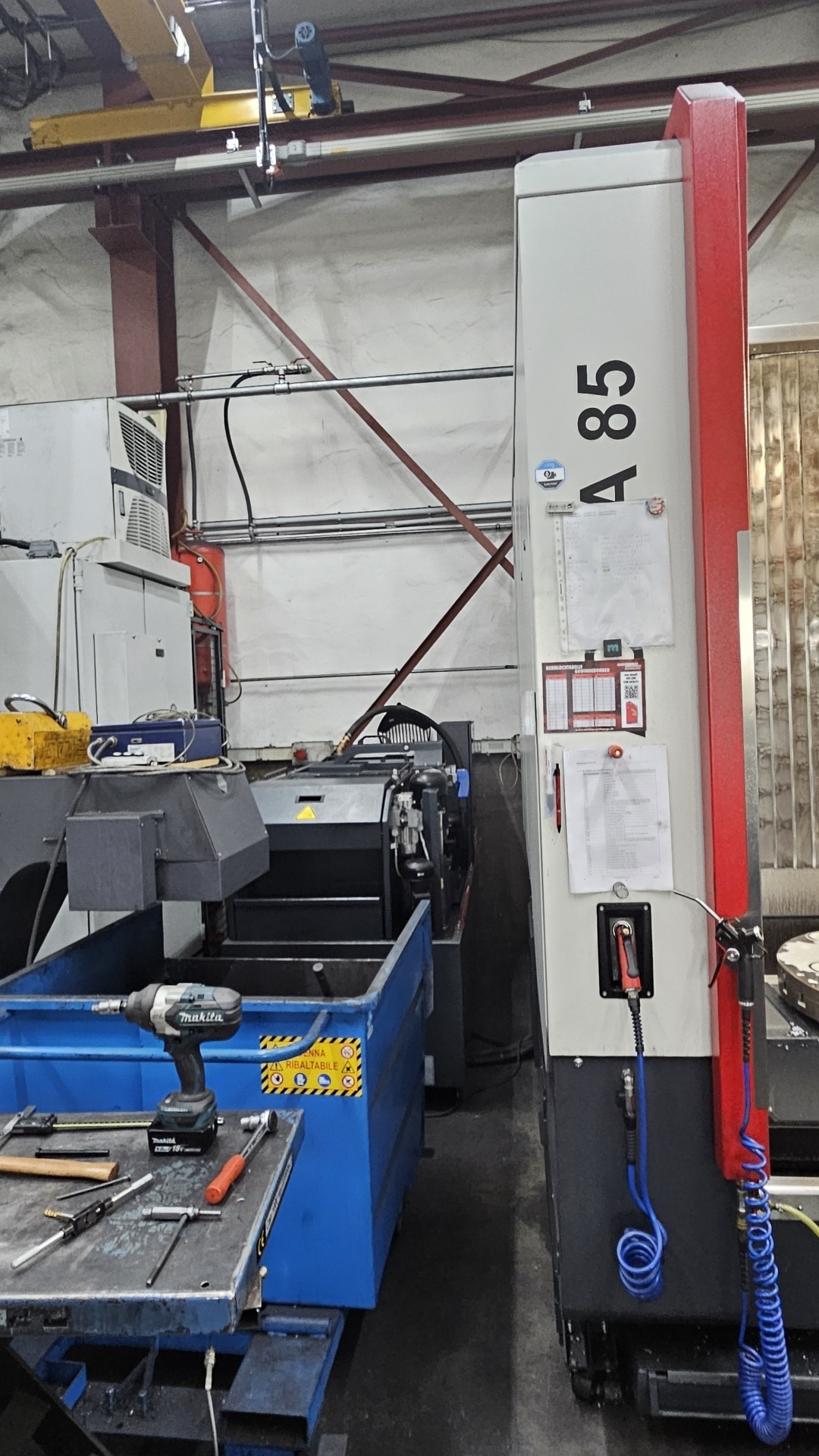

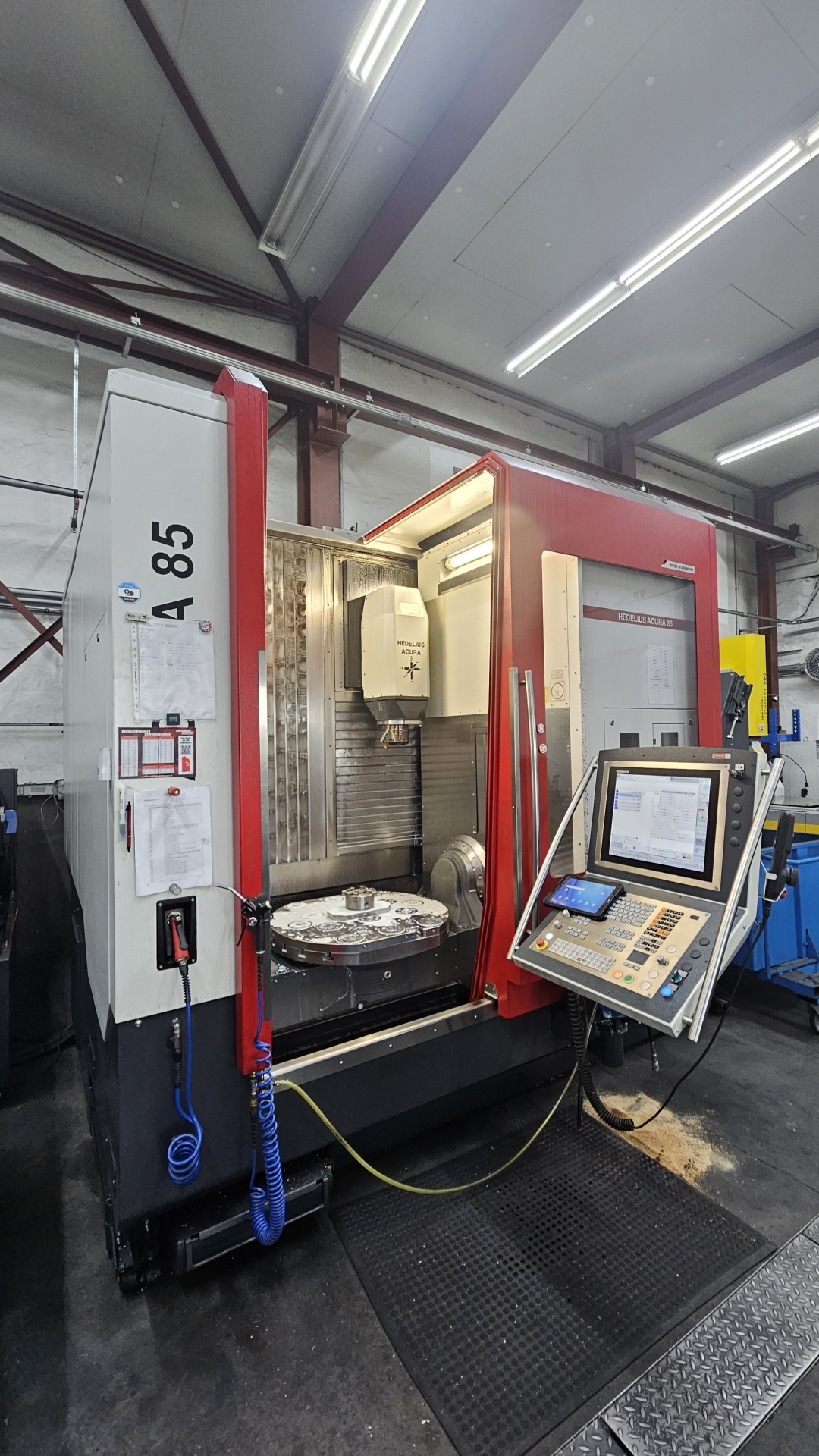

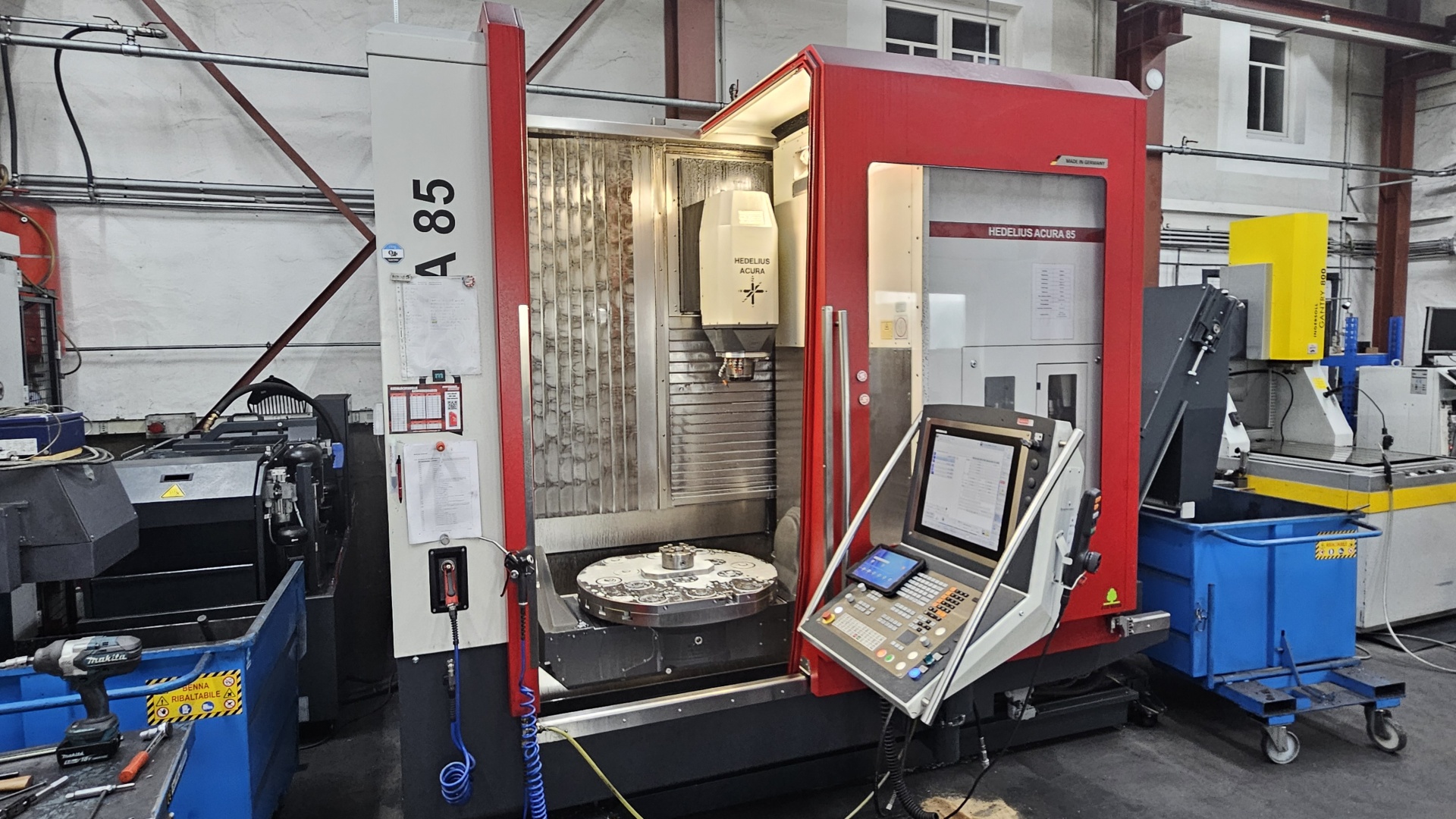

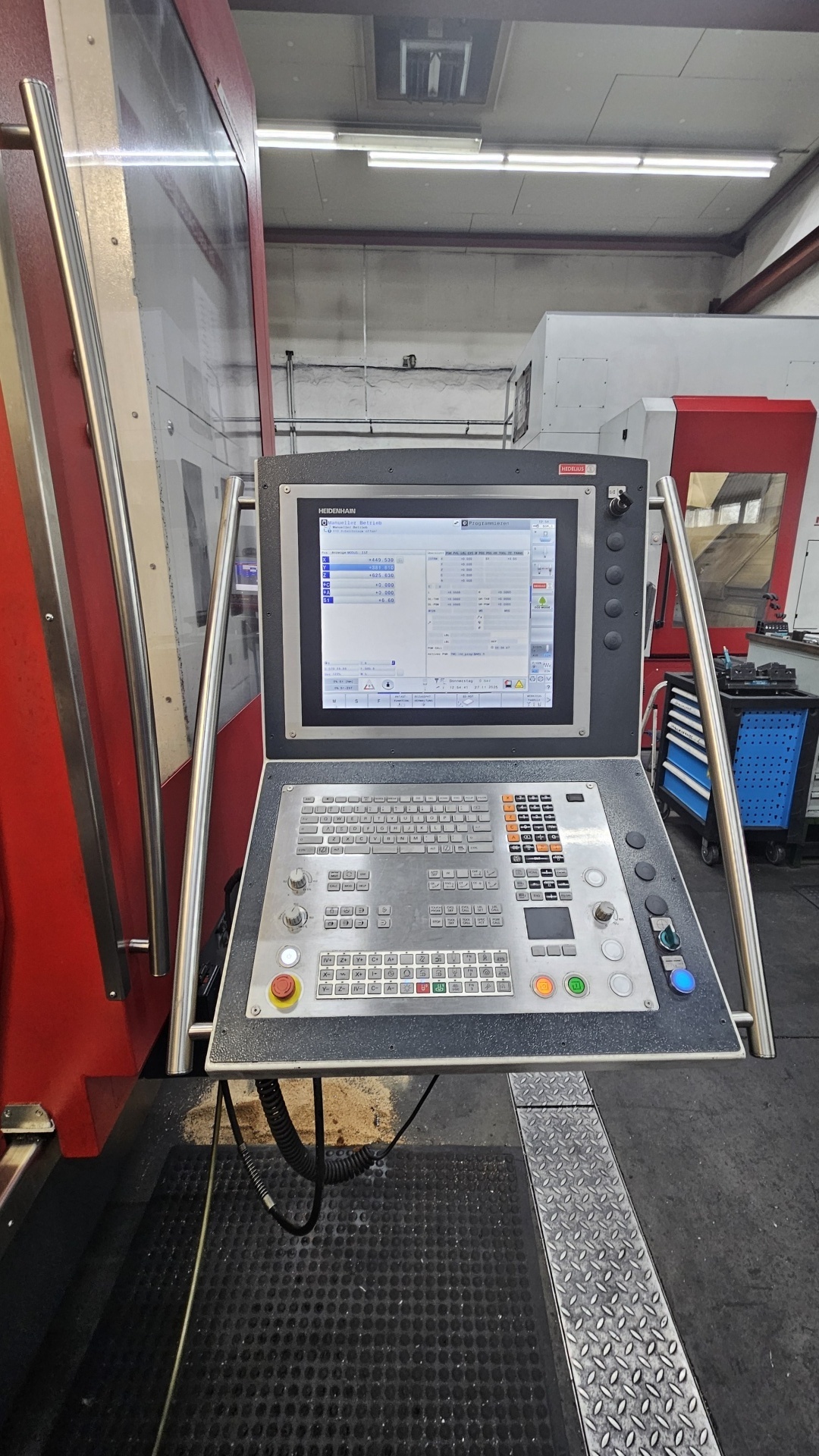

5-осевой вертикальный обрабатывающий центр Hedelius Acura 85

Working range

Travel paths (X/Y/Z) 900 x 850 x 700 mm - -

Main spindle

Output 22 / 37 / 50 / 35 / 30 kW - -

Torque 117 / 185 / 217 / 136 / 70 Nm - -

Speed range 14000 / 15000 / 18000 / 22000 min-1 - -

Tool fitting SK 40, BT 40, HSK A63 - -

Pull-in force 8 / 12 / 22 kN - -

Chipping output

Milling 400, 550, 600, 450, 250 cm3/min - -

Drilling Ø 40 / 45 / 50 / 30 mm - -

Threads M 24 / M 27 / M 20 - -

Rotating/swivelling table unit

Spindle distance 161/120 (101/60) mm - -

Dimensions rotating/swivelling table Ø 400x400 / 500x500 mm - -

Collision area diameter Ø 900 mm - -

Swivelling area +30° – -115° - -

Swivel speed 90° 1,20 sec. - -

Swivel precision - - -

Partial accuracy - - -

Load rotating/swivelling table max. 1000 kg - -

Feeds

Stepless X/Y/Z 40/40/40 m/min - -

3D FORMINGSTAR package Optional - -

Feed force 23000 N - -

Tool magazine

Capacity 80 / 260 / 344 - -

Tool diameter 75/100/125 mm - -

Tool length 330/390 mm - -

Chip-to-chip time ca. 9.7 sek. - -

Accuracy

Positioning accuracy A=8 μm/1000 mm - -

Weight

Machine weight ca. 11000 kg
