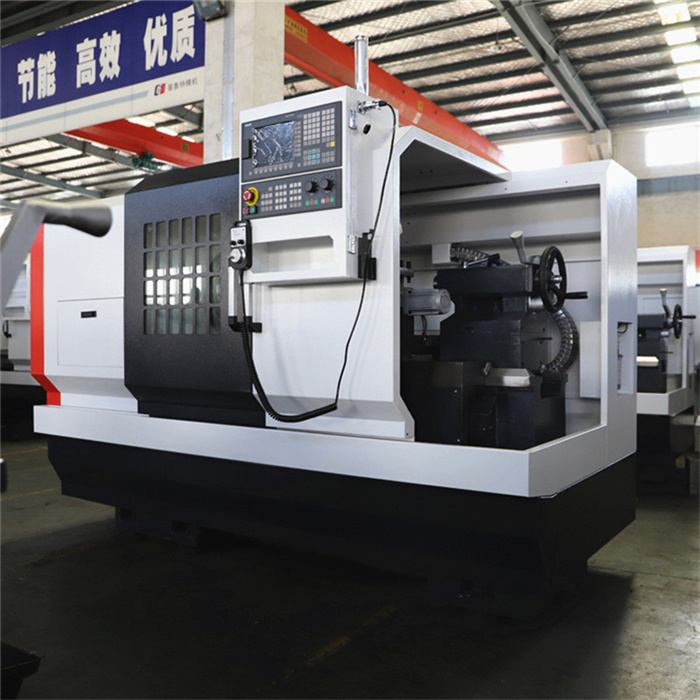

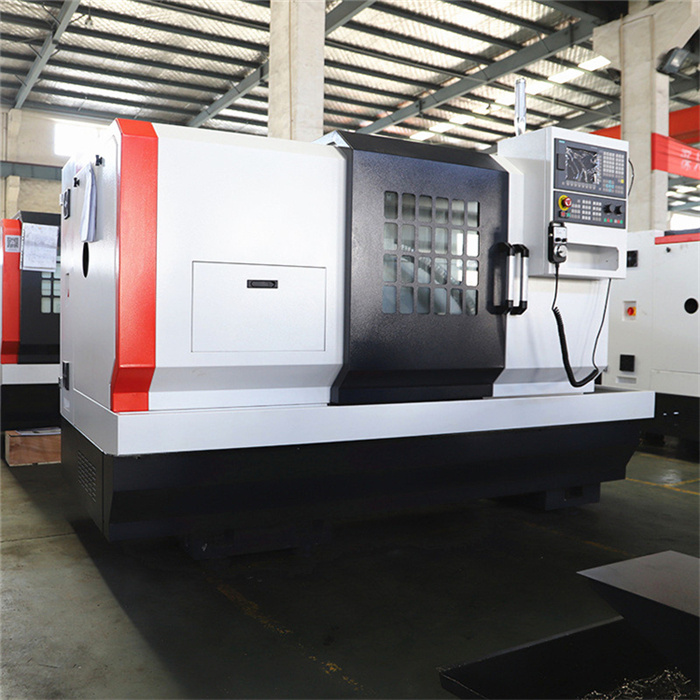

Токарный станок с ЧПУ из Китая CK6140

SPECIFICATIONS

Units

CK6136

CK6140

CK6150

Swing over bed

mm

360

400

500

Swing over cross slide

mm

200

220

280

Distance between centers

mm

750/1000/1500/2000

750/1000/1500/2000

750/1000/1500/2000

Spindle bore

mm

52(Optional 80)

52(Optional 80)

52(Optional 80)

Spindle bore taper

-

MT6

MT6

MT6

Spindle nose type

-

C6

C6

C6

Spindle speed steps

-

Manual 2 steps

Manual 2 steps

Manual 2 steps

Spindle speed range

rpm

L:100-500 H:500-1800 (Optional 90-1800 stepless)

Turret/tool post

-

Electric 4 position

Electric 4 position

Electric 4 position

Tool size

mm

25 x 25

25 x 25

25 x 25

X axis travel

mm

200

230

280

Z axis travel

mm

750/1000/1500/2000

750/1000/1500/2000

750/1000/1500/2000

X axis rapid traverse

mm/min

6000

6000

6000

Z axis rapid traverse

mm/min

10000

10000

10000

Tailstock quill diameter

mm

75

75

75

Tailstock quill taper

-

MT5

MT5

MT5

Tailstock quill travel

mm

140

140

140

Main spindle motor

kw

4

5.5

5.5

Coolant pump motor

kw

0.09

0.09

0.09

Weight for 750

kg

1600

1700

1800

Weight for 1000

kg

1700

1800

1900

Weight for 1500

kg

1800

1900

2000

Weight for 2000

kg

1900

2000

2100

Dimension for 750

mm

2200x1600x1650

2200x1650x1700

2200x1700x1750

Dimension for 1000

mm

2500x1600x1650

2500x1650x1700

2500x1700x1750

Dimension for 1500

mm

3000x1600x1650

3000x1650x1700

3000x1700x1750

Dimension for 2000

mm

3500x1600x1650

3500x1650x1700

3500x1700x1750
