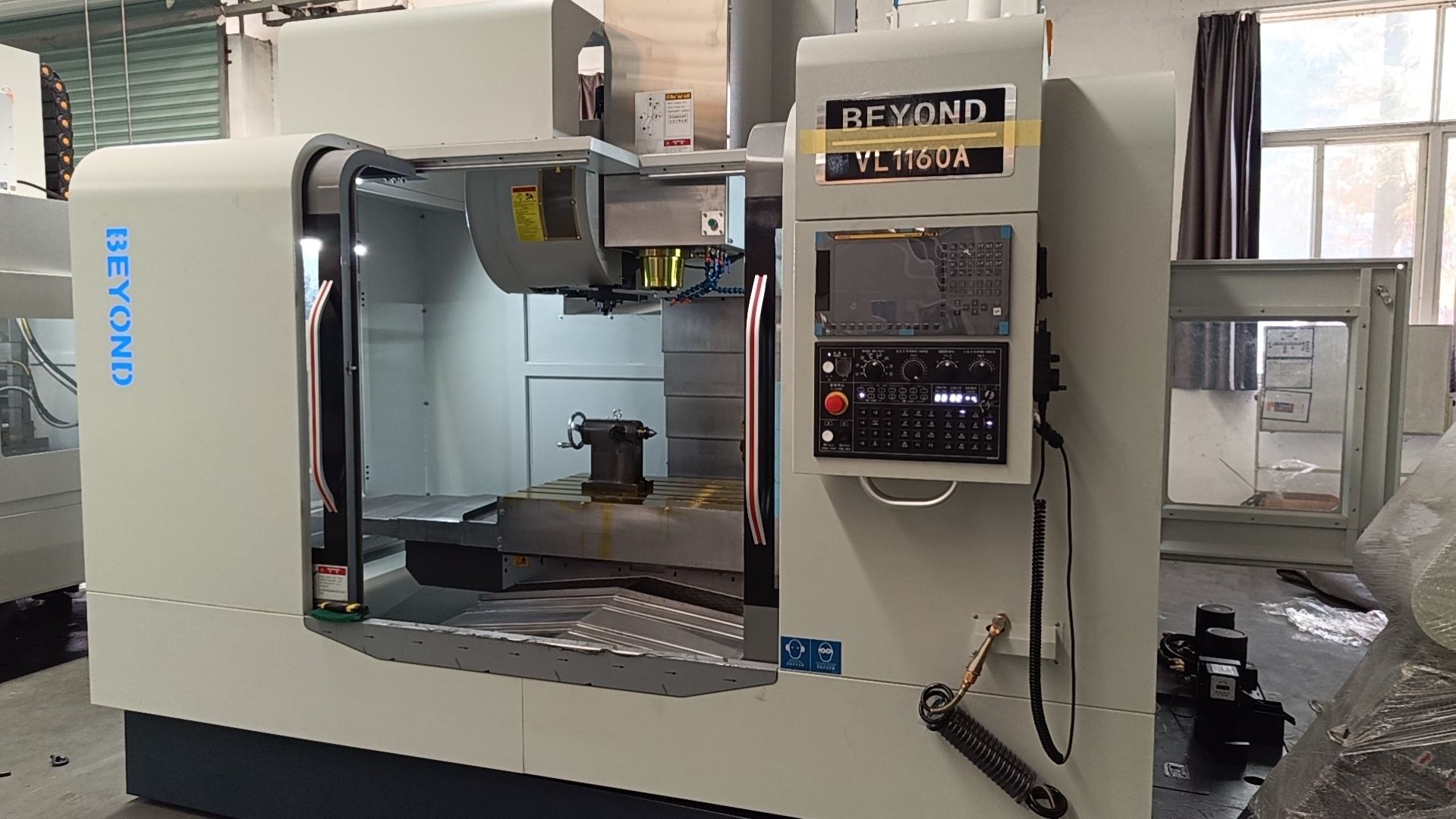

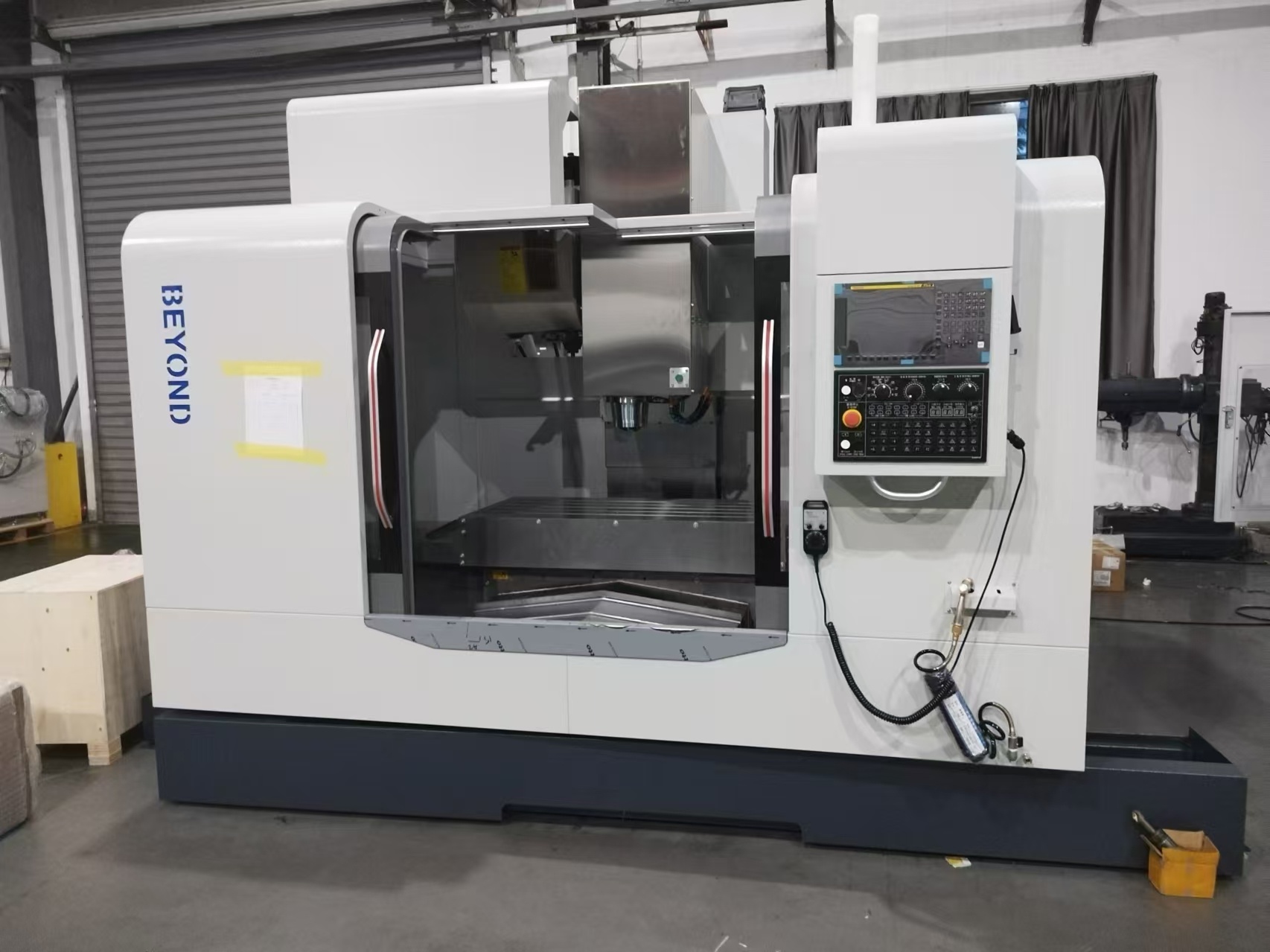

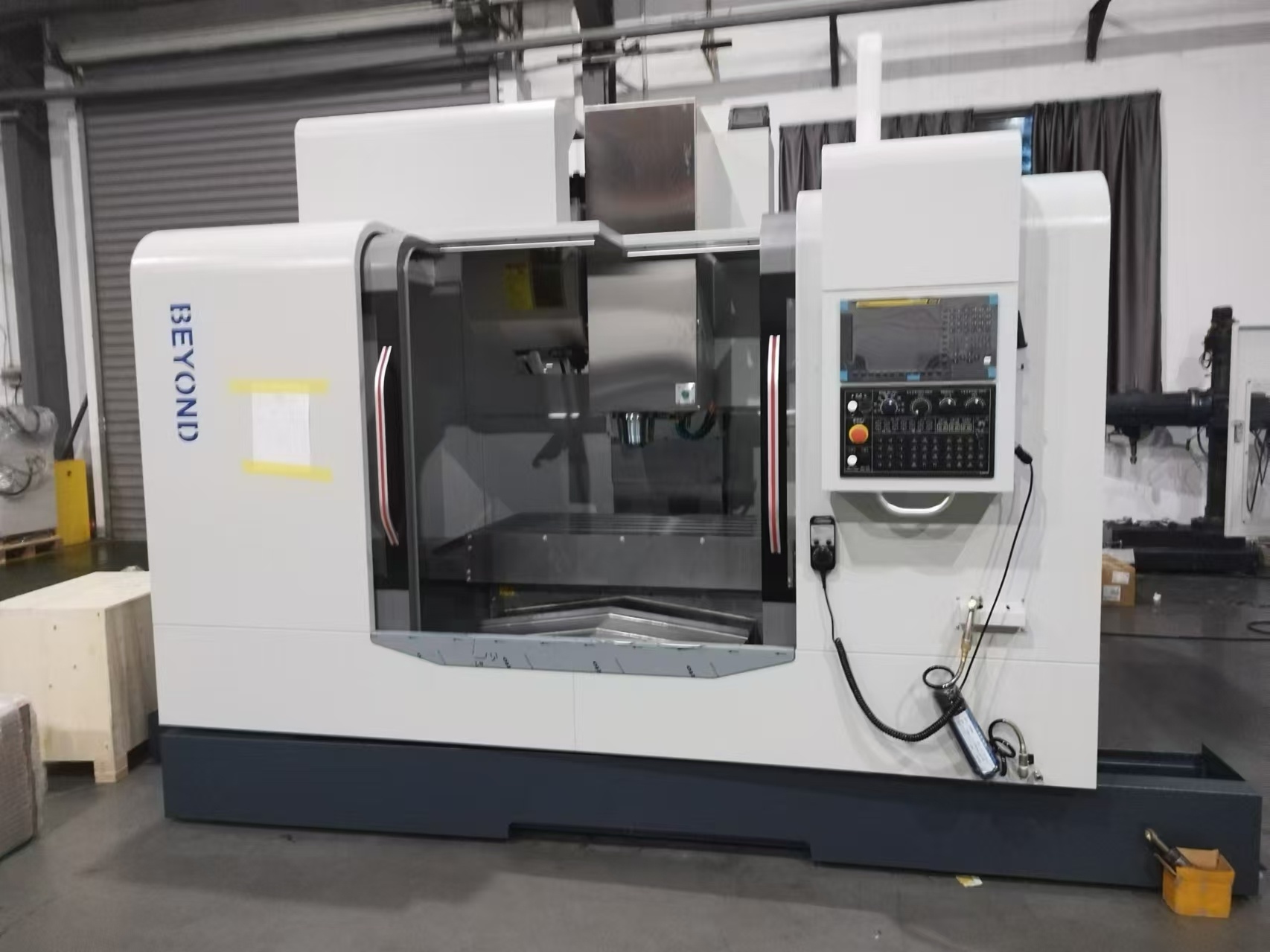

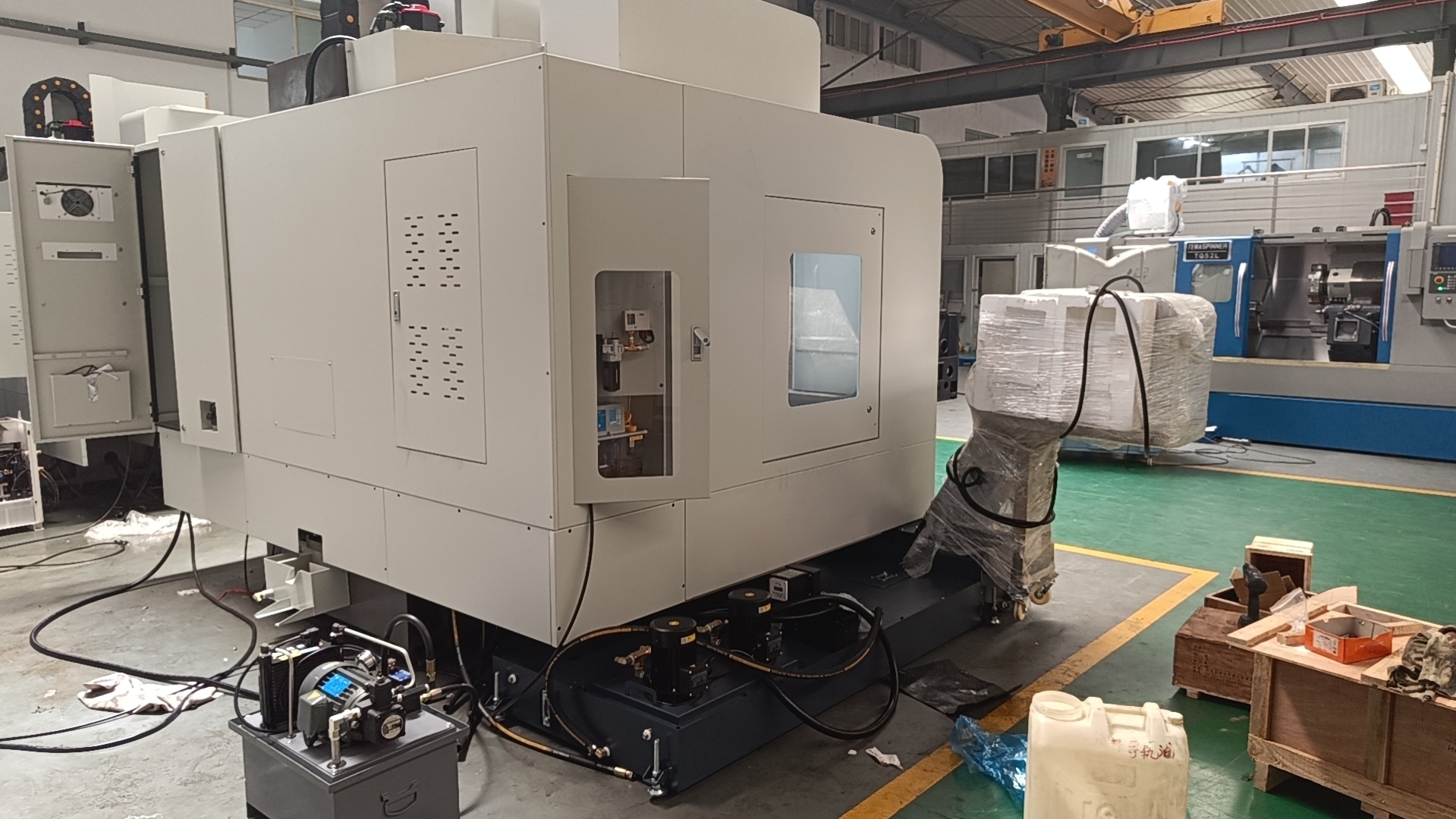

VMC1270 вертикальный обрабатывающий центр с ЧПУ

specifications

unit

VMC1270

VMC1370

Table size

mm

1300x710

1400x700

Table maximum load

kg

1000

1000

X/Y/Z axis travel

mm

1200x700x700

1300x700x700

Distance between spindle
center and column surface

mm

767

785

Distance between spindle end
face and worktable surface

mm

130-830

150-800

X/Y/Z max. feed speed

mm/min

10000

10000

X/Y/Z max.rapid traverse

m/min

24/24/18

20/20/15

Max. spindle speed

r/min

8000

8000

Spindle taper

BT50

BT50

Spindle motor

kw

11/15

11/15

X/Y/Z axis servo motor

kw

4/4/4

4/4/4

X/Y/Z motor connection

direct

direct

X/Y/Z guide rail form

Linear rails

Linear rails

T slot(number-width-pitch)

5-18-115

5-18-115

Repeat positioning accuracy

mm

±0.004

±0.004

Tools type

arm

arm

Tool magazine capacity

arm:24

arm:24

Max. tool length

mm

350

350

Electric capacity

KVA

22

22

Machine dimension

mm

3800*3000*2650

3600*3000*2700

Machine weight

kg

11000

12000
