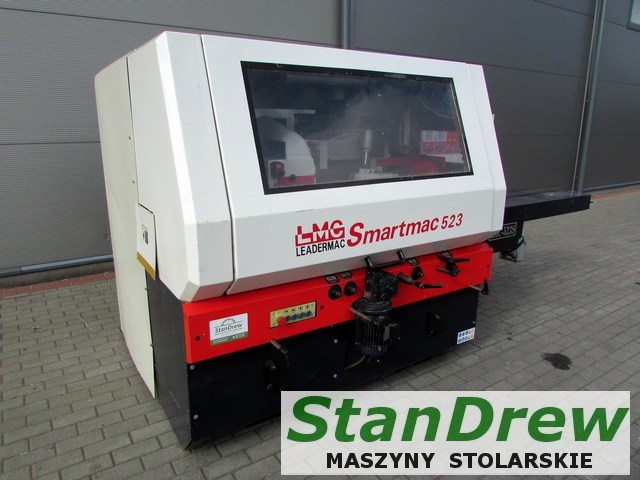

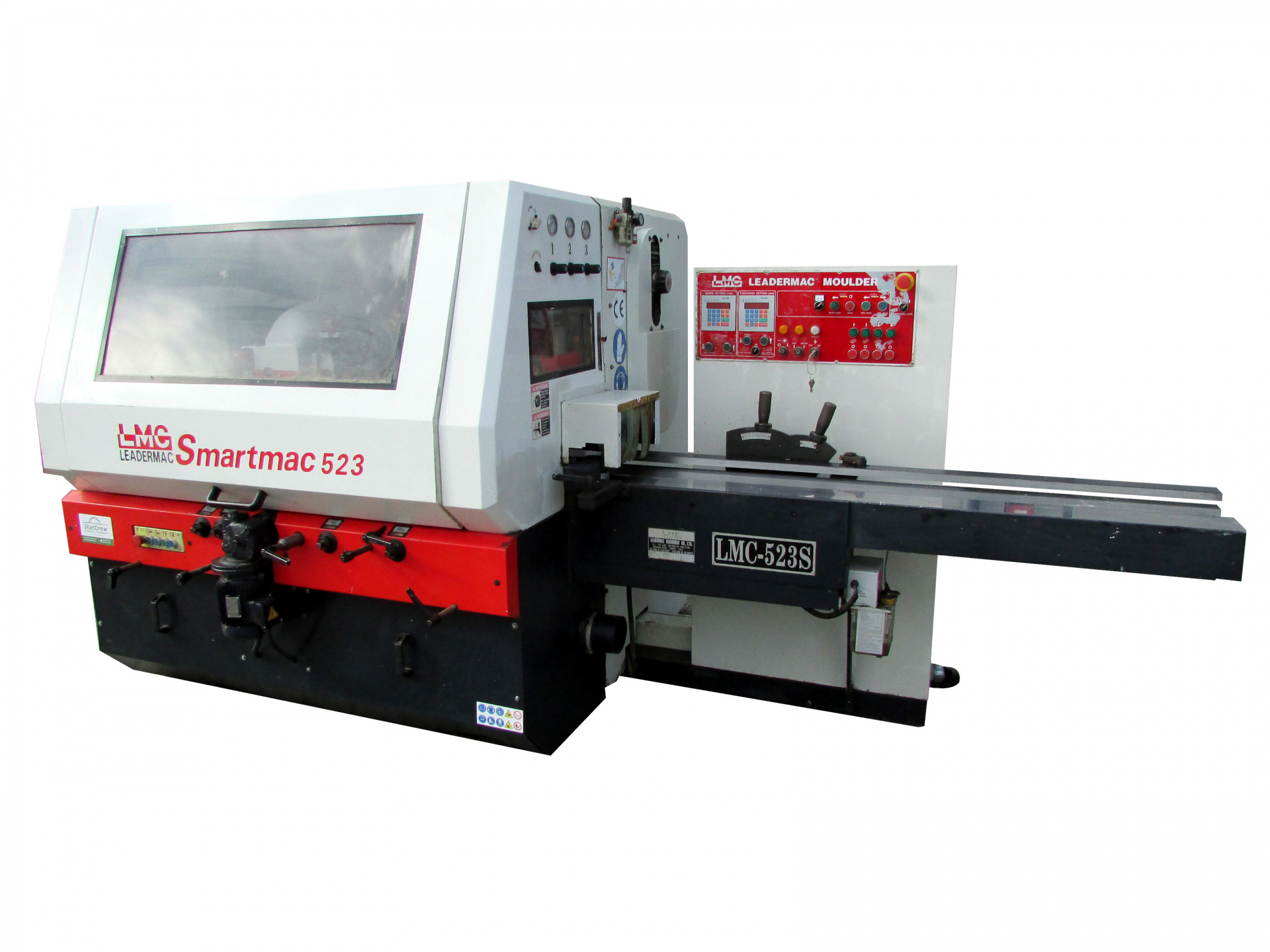

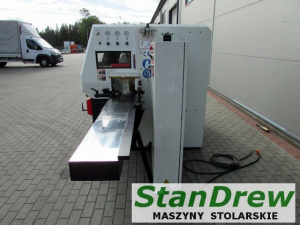

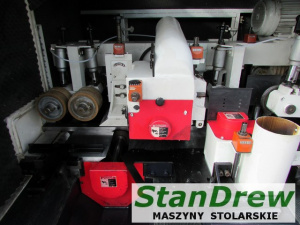

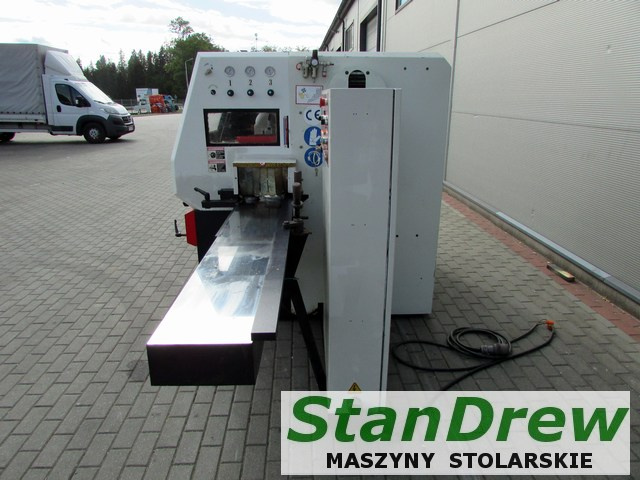

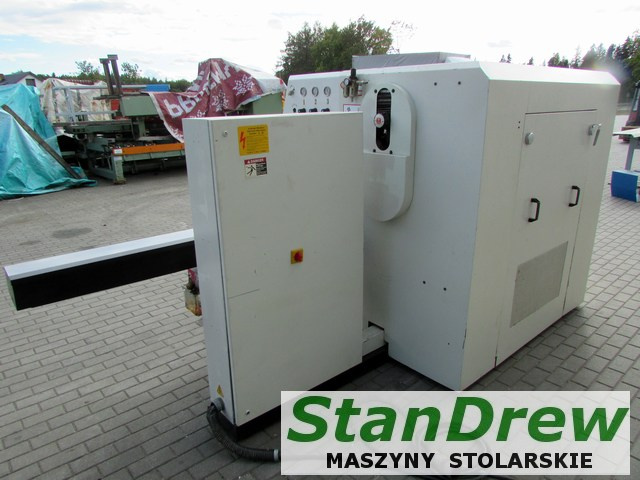

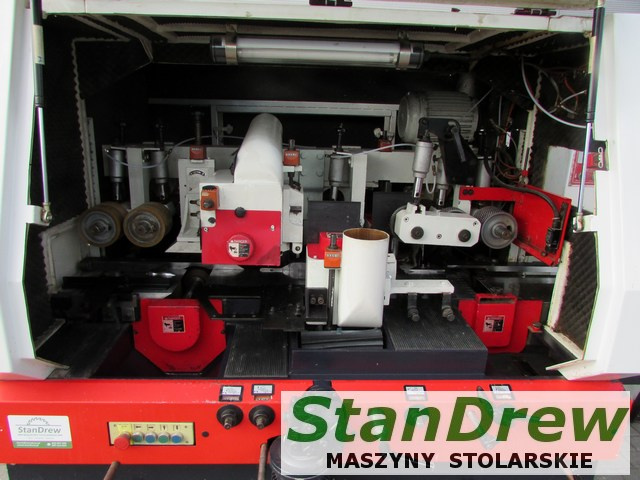

Leadermac LMC 523 Smartmac four-sided planer
- year of production 2000
- DTR

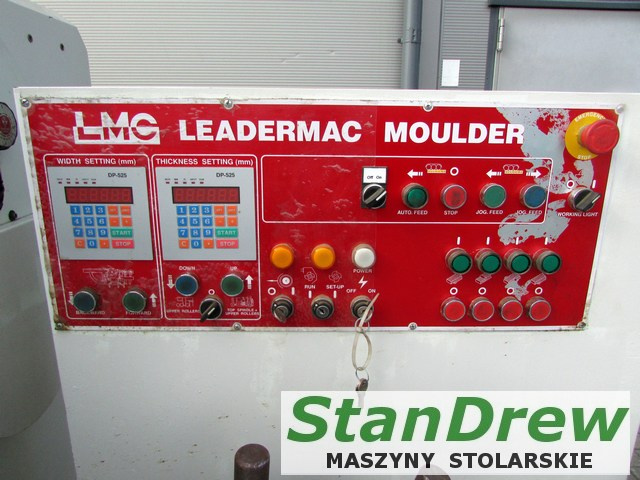

- electronic height and width adjustment
- ability to save permanent parameters
TECHNICAL PARAMETERS:
planing width 230 mm
planing height 140 mm
spindle diameter 40 mm
1 lower spindle 7.5 kW
2 right spindle 5.5 kW
3 left spindle 5.5 kW
4 upper spindle 7.5 kW
5 lower spindle 7.5 kW
feed continuously adjustable
feed motor power 3 kW

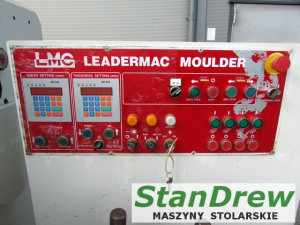

electronic height adjustment
electronic adjustment of the left head
feed on cardan shafts

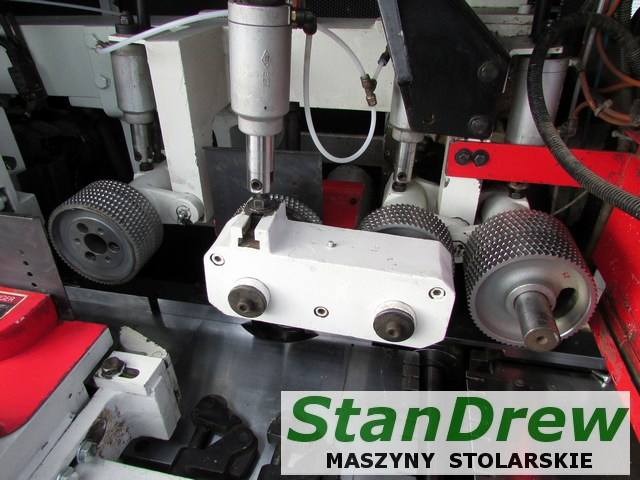

five steel top pulling rollers
two rubber upper pulling rollers
one pulling roll in the countertop
pneumatic material pressure
minimum material length 400 mm
preliminary table length 2000 mm
chrome tables
spigot diameter 5 x 125 mm
Machine dimensions (length / width / height) 370 / 200 / 190 cm
weight ~ 3000 kg
