Tech Specs

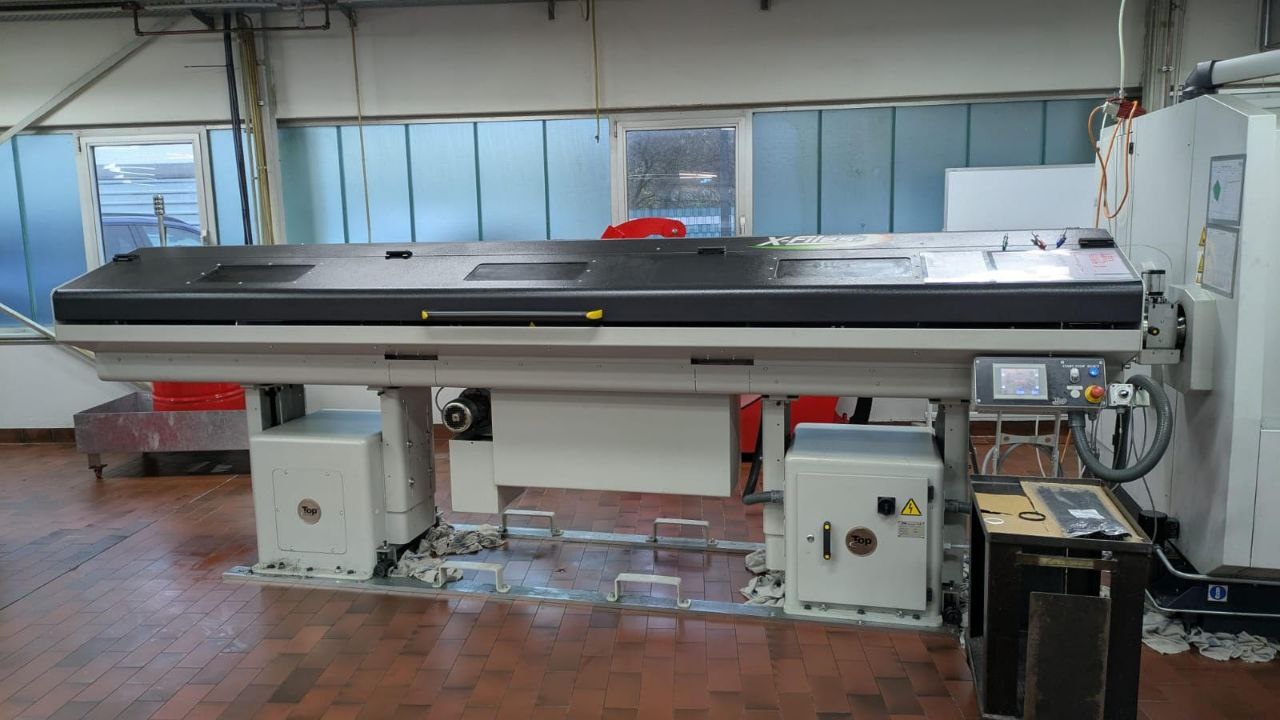

With the associated 3-meter bar loader
Accessories:

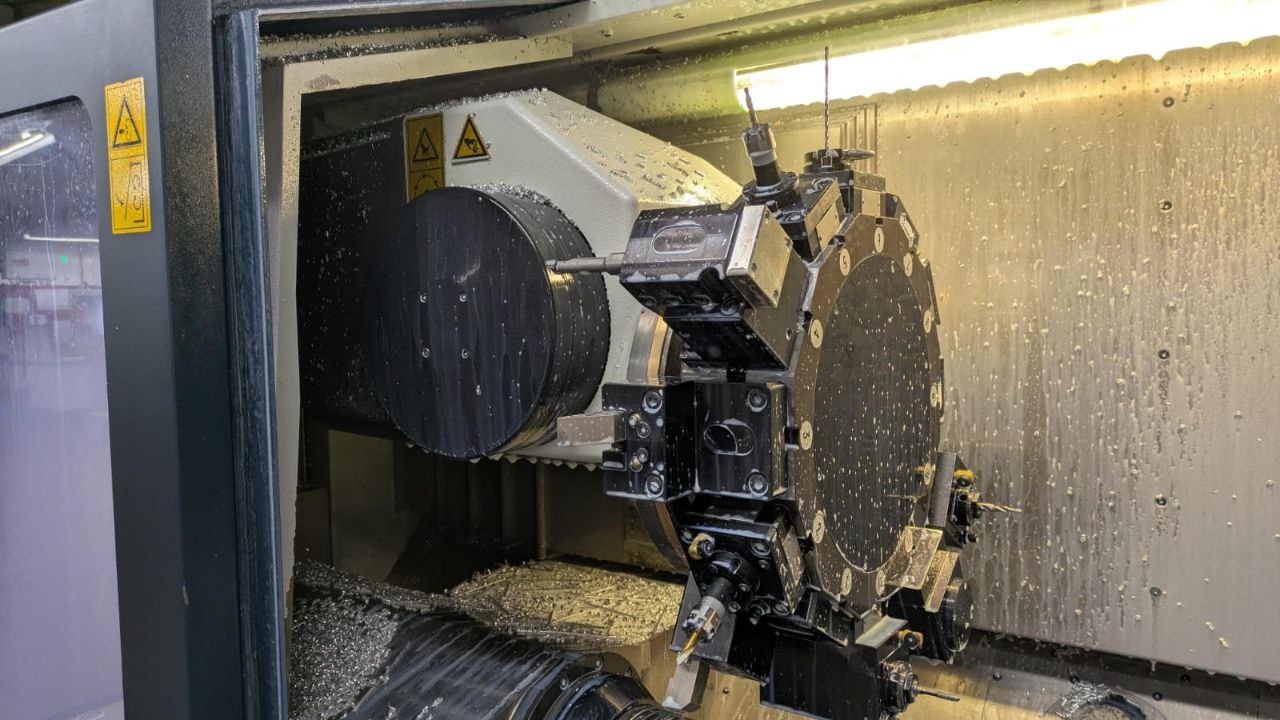

-4x Tool holders, straight, left-right square mount, external coolant
-4x Machine Interface:BT45A
Tool Holder:Ø 32 mm
Coolant Supply:IK 80 bar
Functional Length (LF): 85 mm
Overhang Length (LPR): 110 mm
Functional Width (WF): 59/21 mm
-1x Milling Head: 90° / BMT 45 / Spinner No. 125548 / ER 25
Description:
Angled milling head / BMT45 / ESX-25, dual-spindle (right and left)
Spinner flat coupling
ER25, max. speed: 6000 rpm, i=1:1
Enhanced version with center height of 85 mm

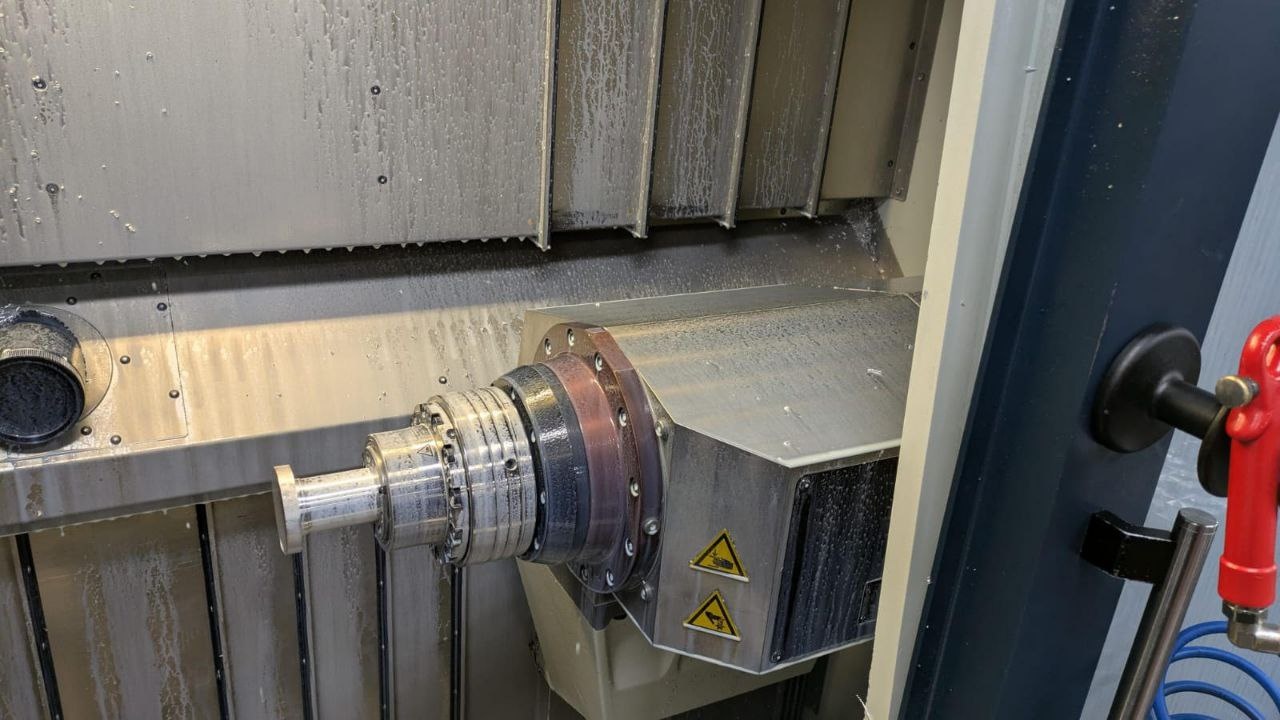

1x Parting Tool Holder Universal rotation direction External coolant supply -Working hours: 165977 h General Specifications Travel Paths: X1, X3: 180 mm X2: 180 mm Y1, Y3: ±45 mm Z1, Z3: 704 mm Z2: 620 mm E2: 720 mm Rapid Traverses: X, Y, Z at 30 m/min Acceleration: 0.5 g Spindle 1 Maximum Speed: 5000 rpm Spindle Nose: A6 type Spindle Bore: Ø65 mm Chuck Diameter: 210 mm Maximum Drive Power: 24 kW / 18 kW (S3 40% / S1) Maximum Torque: 151 Nm / 115 Nm (S3 40% / S1) Additional Details Coolant Tank Volume: ~200 liters Hydraulic Tank Volume: ~120 liters Central Lubrication Unit Volume: ~2 liters

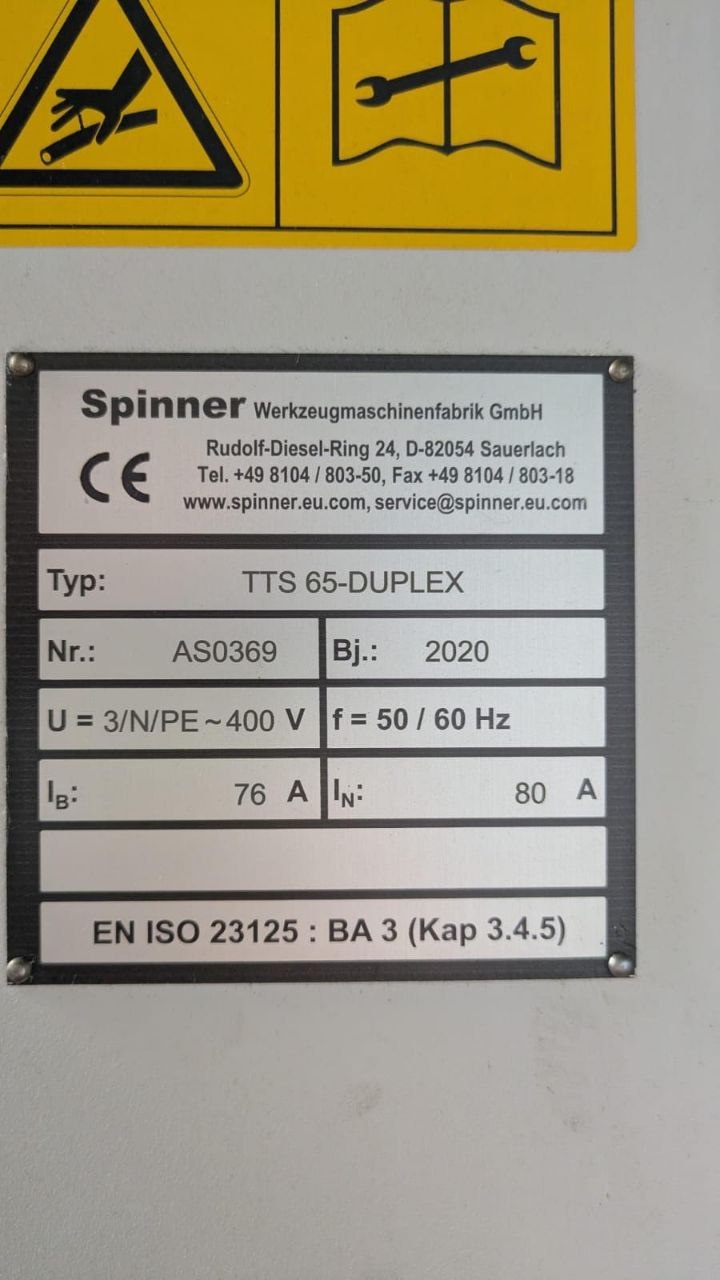

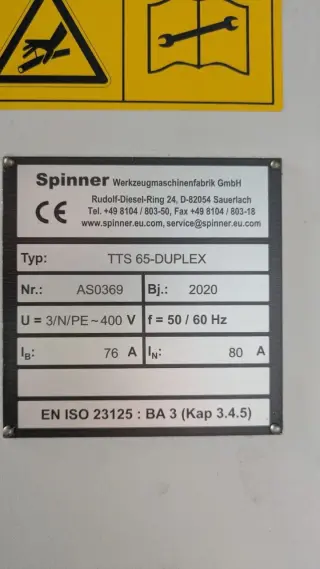

Power Connection: 60 kW Operating Current (IB): 76 A Rated Current of Protection Device (IN): 80 A Machine Weight: ~7500 kg Machine Dimensions (L x W x H): 2880 x 2130 x 1990 mm
