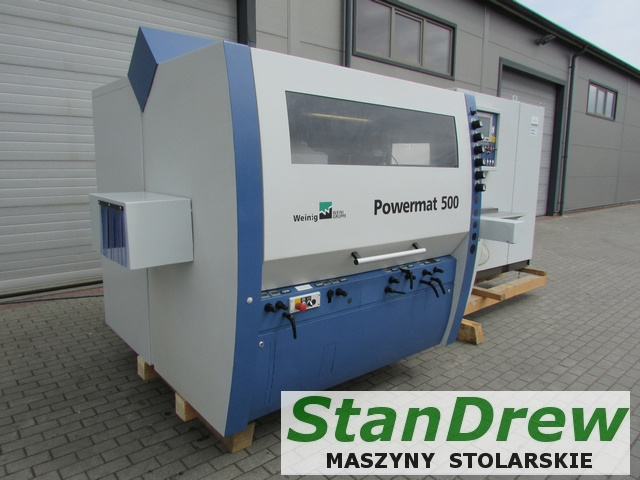

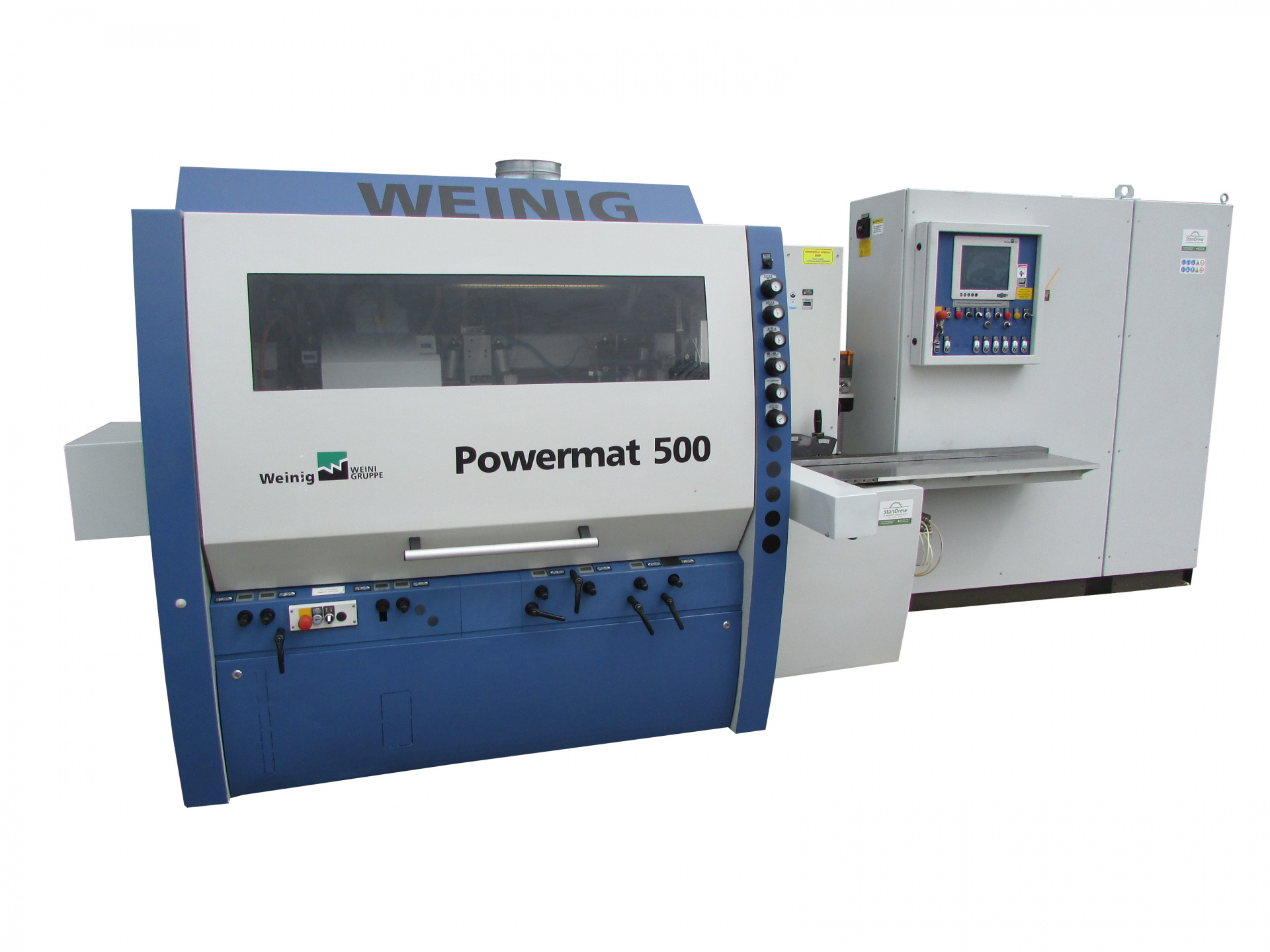

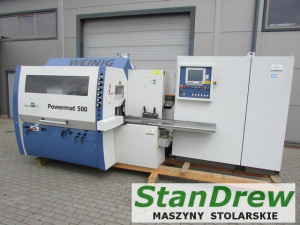

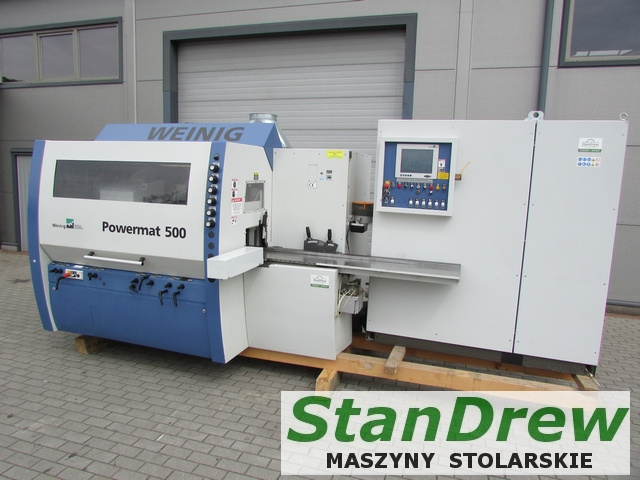

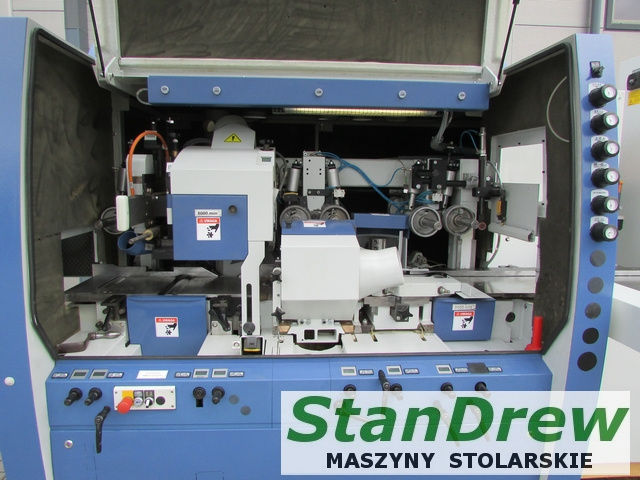

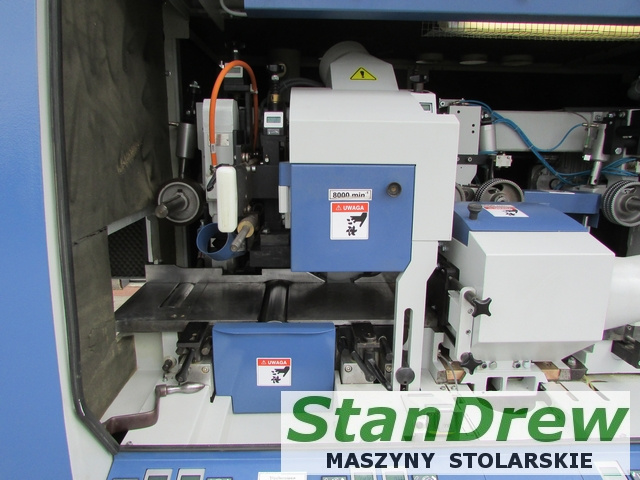

Weinig Powermat 500 four-sided planer
- year of production 2008
- German production
- PowerCom control
- saving profiles with tools and positions
- PowerLock tool mounting
- set of heads included in the price
TECHNICAL PARAMETERS:
planing width 300 mm
planing height 200 mm
PowerLock tool holder

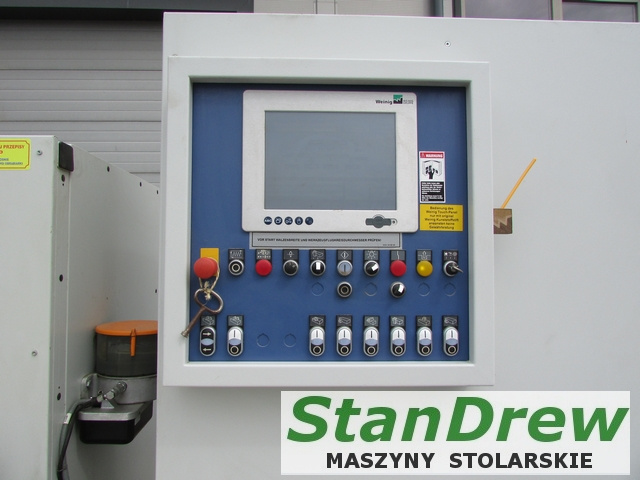

PowerCom control with positioning of the upper and left spindles

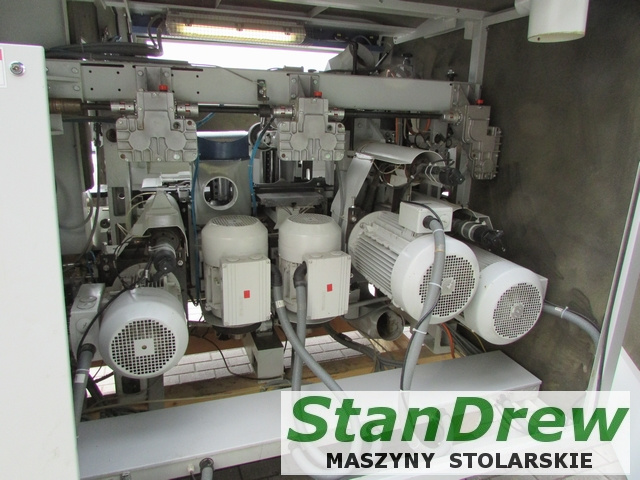

1 spindle 11kW
2 spindle 11 kW
3 spindle 11 kW
4 spindle 15 kW
5 spindle 15 kW
milling spindle 1.5 kW 12000 rpm
spindle revolutions 8000 rpm
feed continuously adjustable 6-36 m/min
feed motor power 4kW

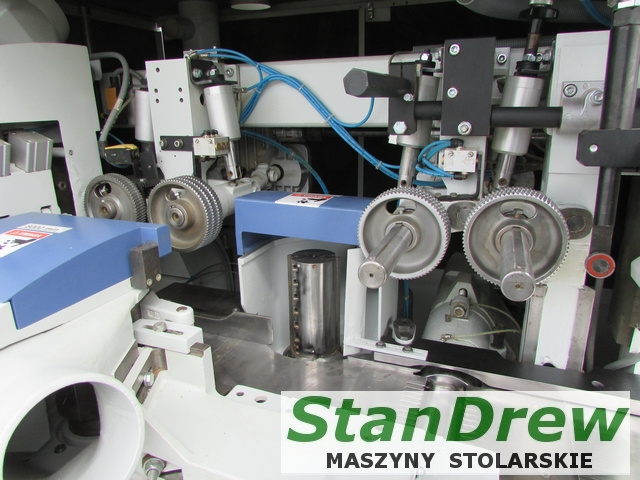

four upper steel pulling rollers
one rubber upper pulling roller
one roller in the countertop pulling
air cushion in the table
automatic central table lubrication
automatic lubrication of spindle guides
length of feeding table 1970 mm
connector diameter 2x140 mm 3 x 160 mm 1 x 80 mm
total power 70 kW 140 A
Machine dimensions
500x225x242 cm
weight 3000 kg
