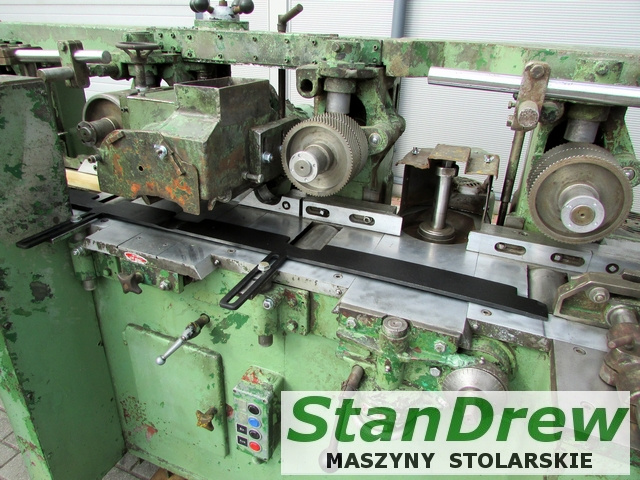

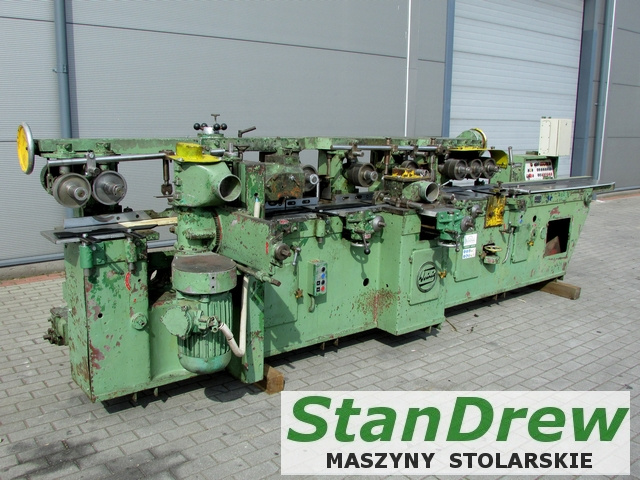

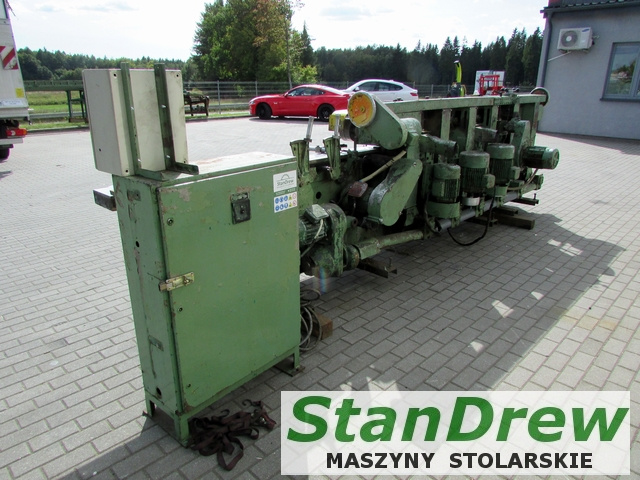

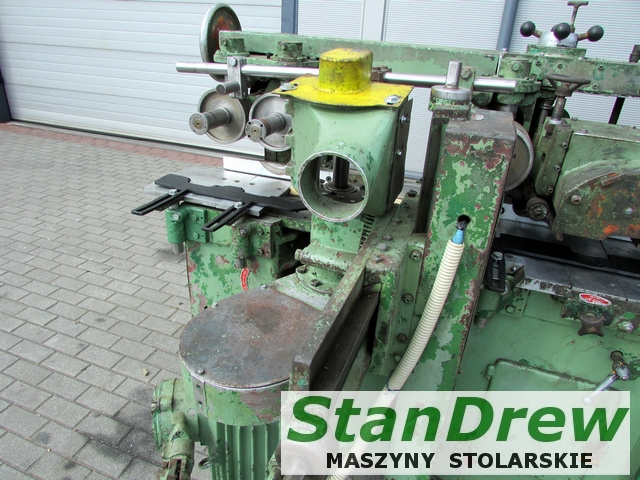

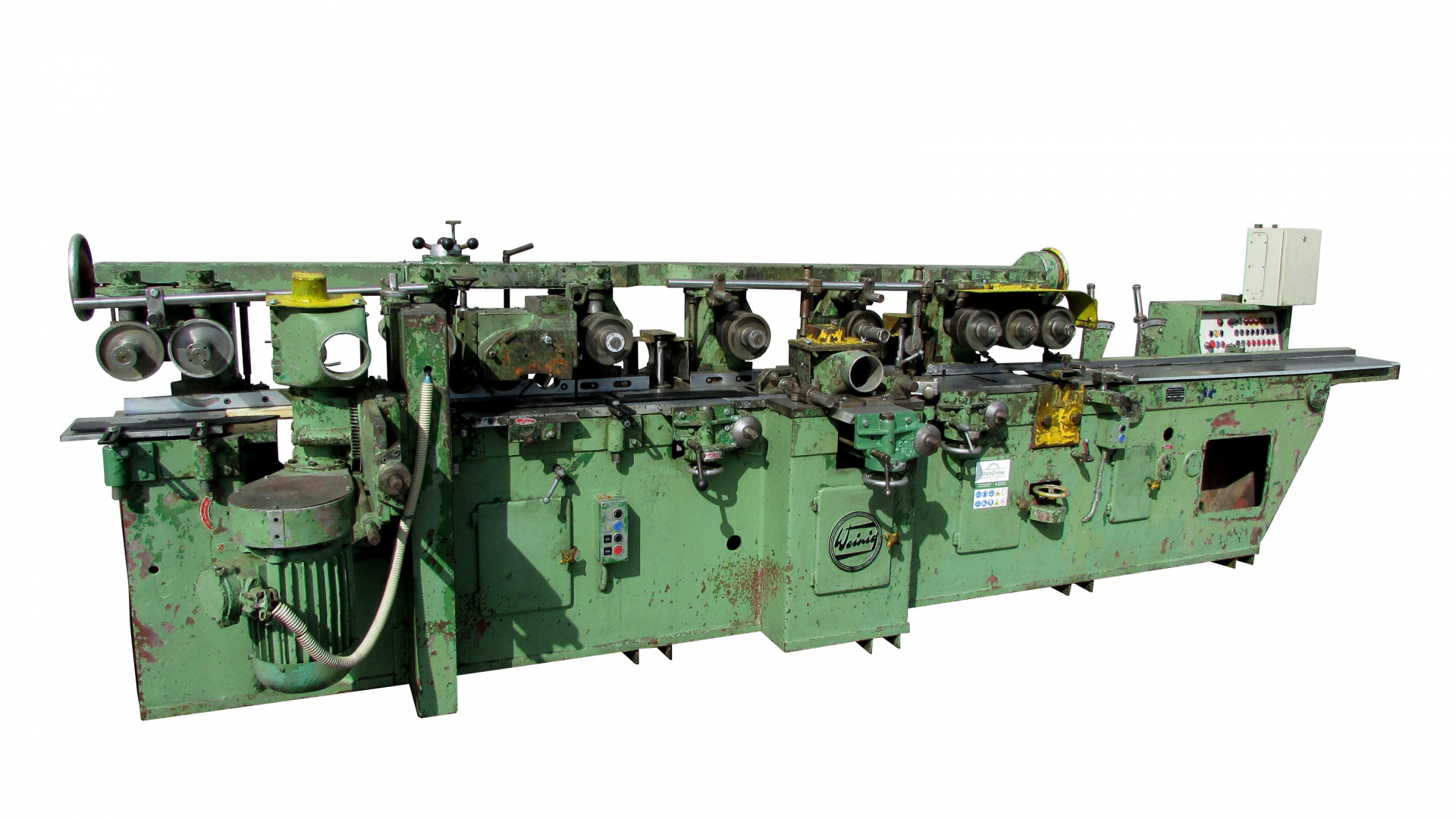

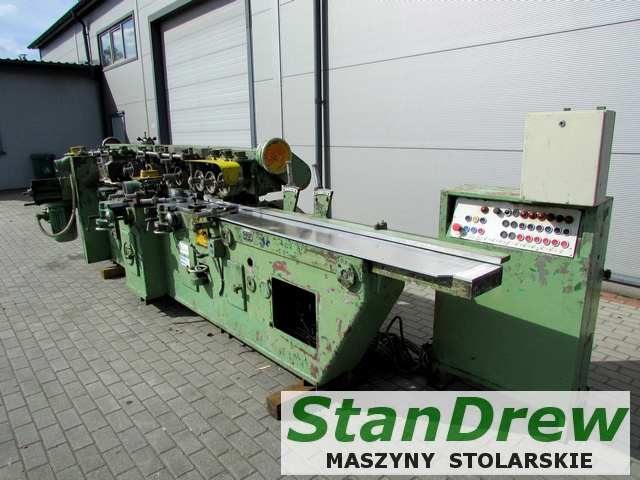

WEINIG PFA 17 four-side planer
– German production
– DTR
– last spindle adjustable 180°
TECHNICAL PARAMETERS:
planing width 170 mm
planing height 120 mm
rollers in the countertop
spindle diameter 35 mm
1 lower spindle 4 kW
2 right spindle 4 kW
3 left spindle 5.5 kW
4 right spindle 5.5 kW
5 upper spindle 4 kW
6 universal spindle 180°, 4 kW

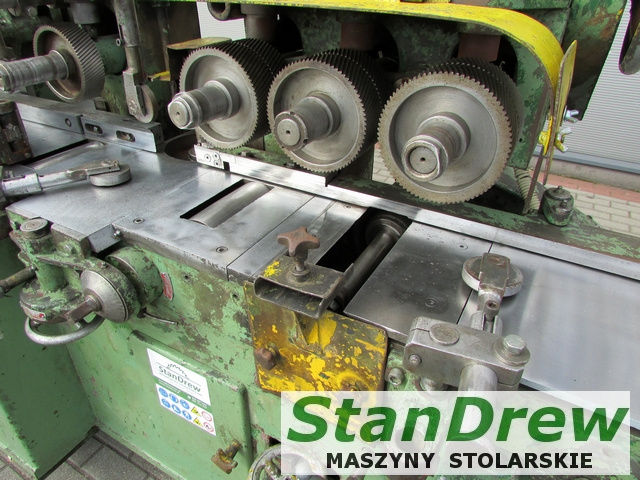

six upper pulling gear rollers
three upper smooth pulling rollers
three rollers in the counter
electric height adjustment of the upper head
electric roller height adjustment
feed motor power 2.2 kW
smooth regulation of the feed speed on the inverter
spigot diameter 5 x 120 mm
machine dimensions (length/width/height) 500 / 175 / 160 cm
weight 3000 kg
