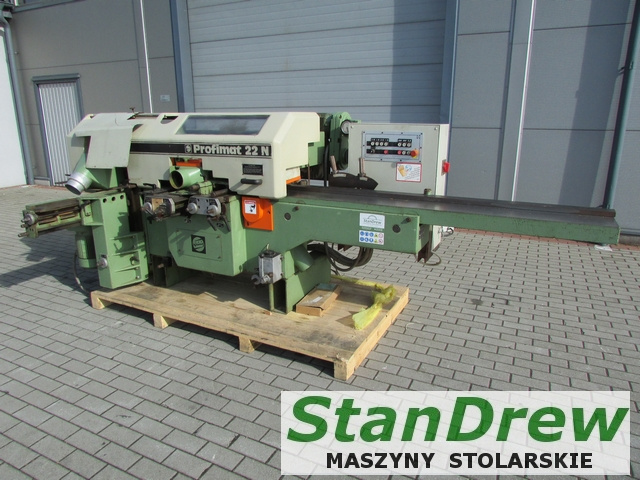

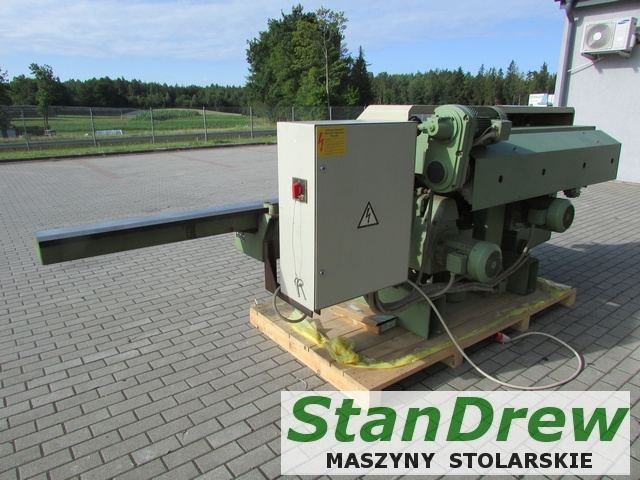

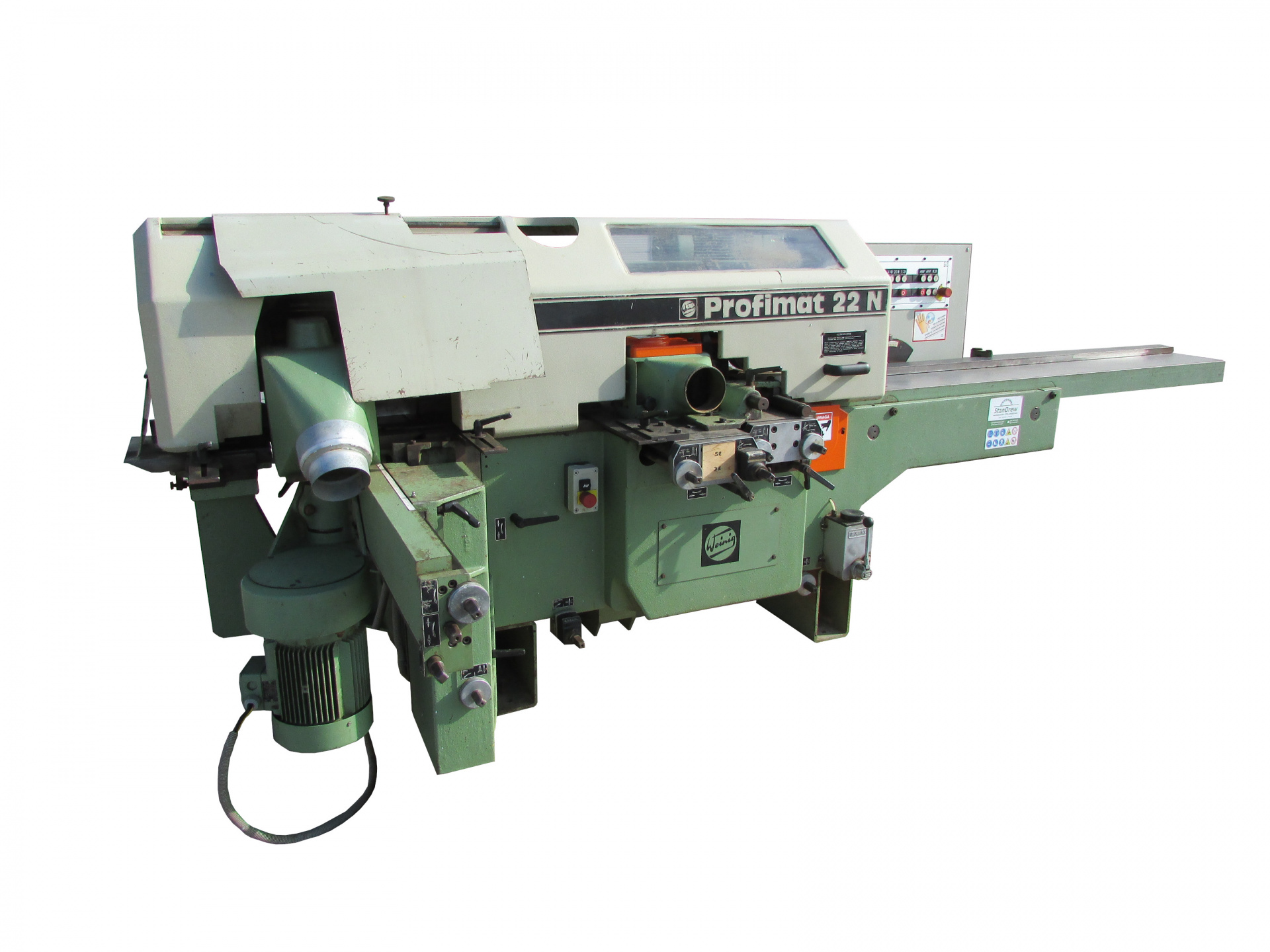

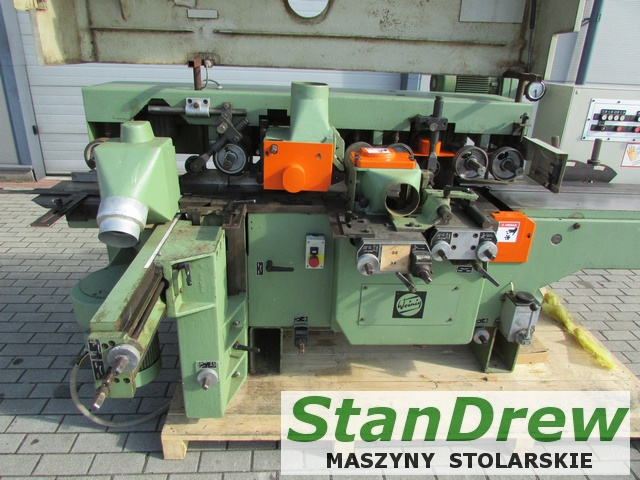

WEINIG PROFIMAT 22N four-sided planer
– DTR
– German production

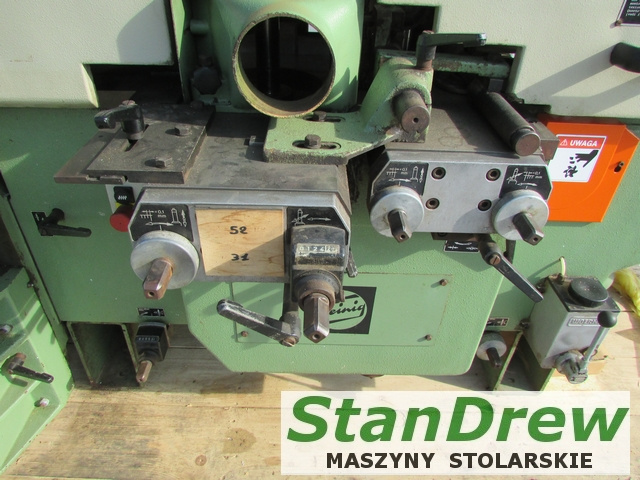

– electric adjustment of the left head
– adjustable spindles
TECHNICAL PARAMETERS:
planing width 220 mm
planing height 120 mm
spindle diameter 40 mm
1) lower head 4 kW
2) right head
3) left head 5.5 kW
4) upper head 4 kW
5) universal head 360° 4 kW
feed motor 2.2 kW
feed speed 5 – 20 m/min
four steel upper pulling rollers
two upper rubber pulling rollers
one pull roller in the countertop
feed on cardan shafts
electric height adjustment
pre-top length 1970 mm
central lubrication
pneumatic clamps
machine dimensions (length/width/height) 380 / 200 / 170 cm
weight ~ 2000 kg
