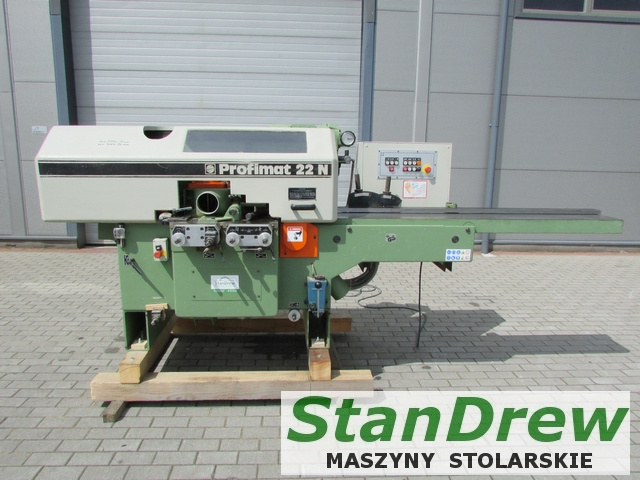

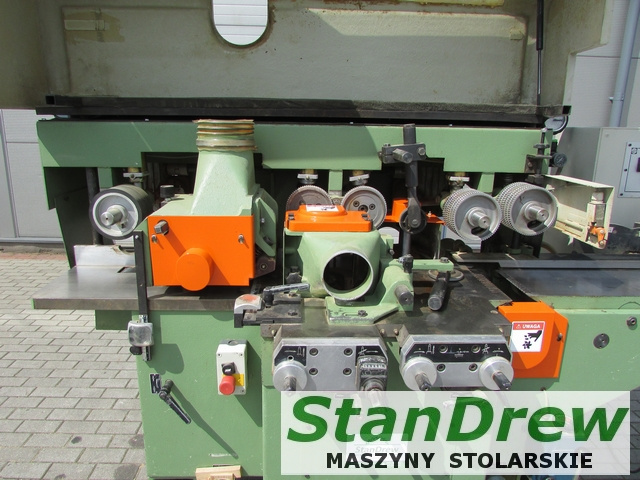

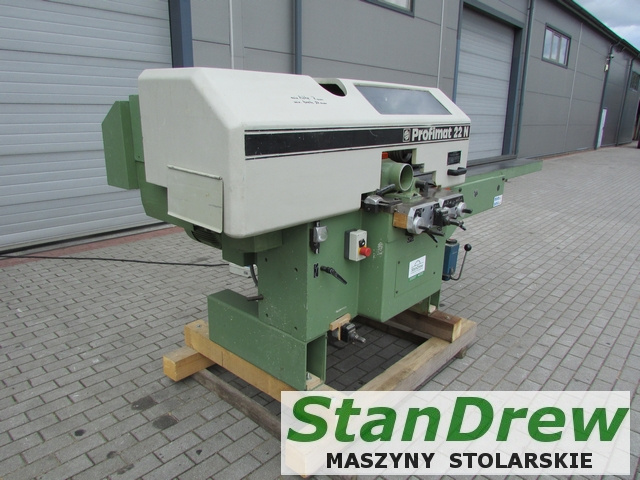

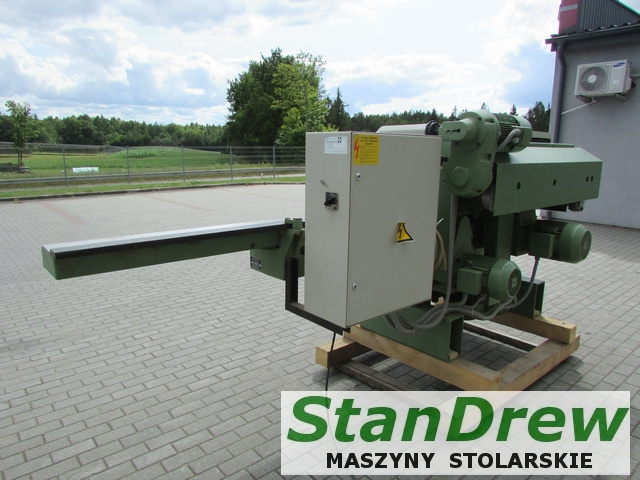

WEINIG PROFIMAT 22N four-sided planer
– DTR
– German production
TECHNICAL PARAMETERS:
planing width 220 mm
planing height 120 mm
spindle diameter 40 mm
1) lower head 5.5 kW
2) right head
3) left head 7.5 kW
4) upper head 5.5 kW
feed motor 2.2 kW
feed speed 6 – 20 m/min
four steel upper pulling rollers
one upper rubber pulling roller
one pull roller in the countertop
feed on cardan shafts
electric height adjustment
pre-top length 1975 mm
central lubrication
pneumatic clamps
machine dimensions (length/width/height) 350 / 200 / 170 cm
weight ~ 1800 kg
