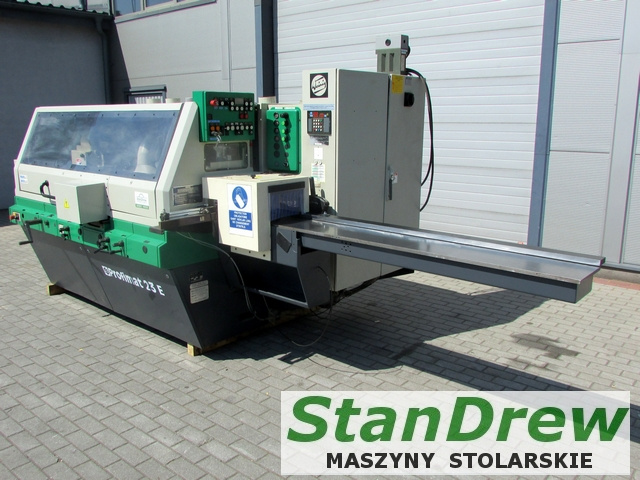

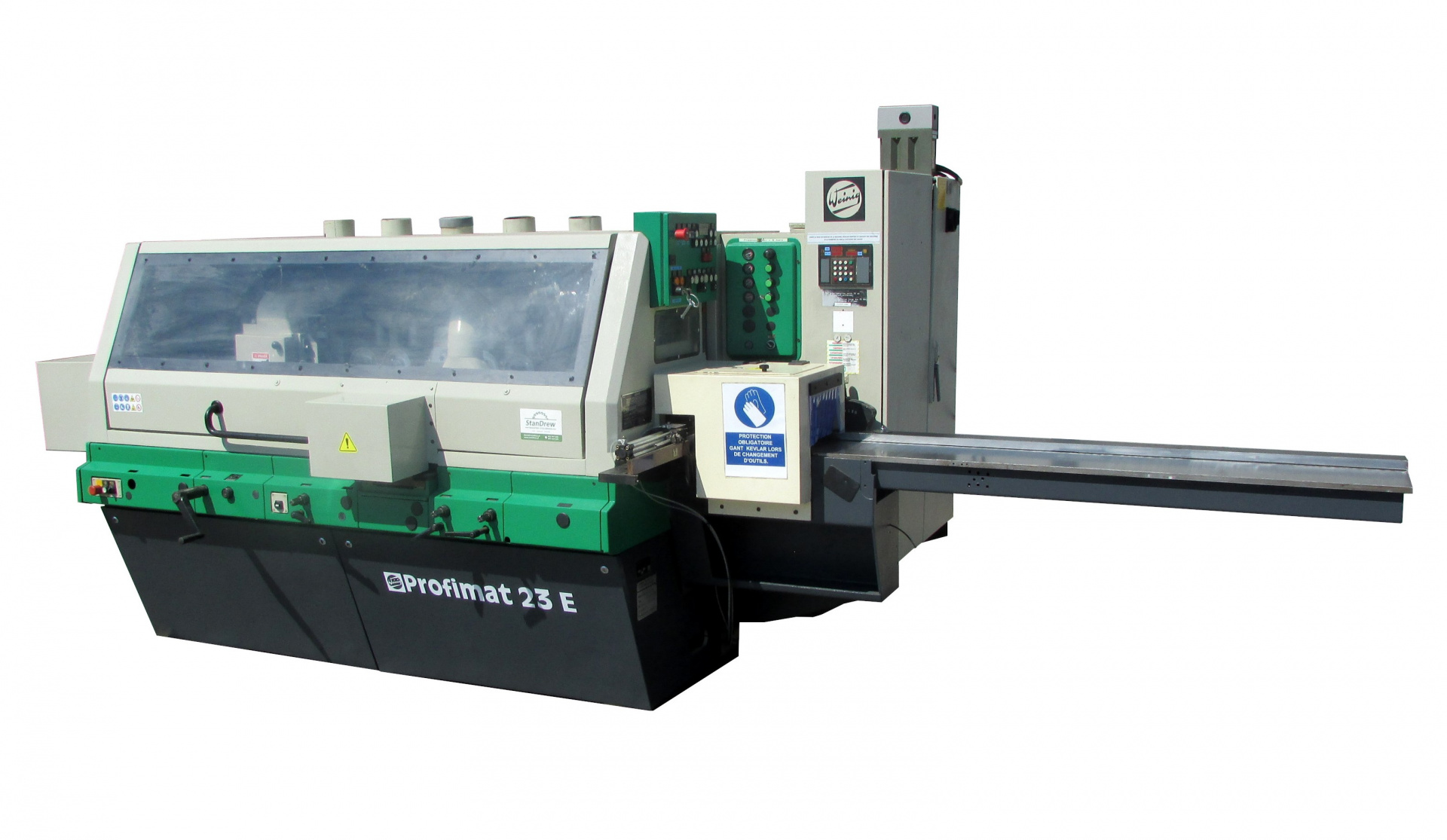

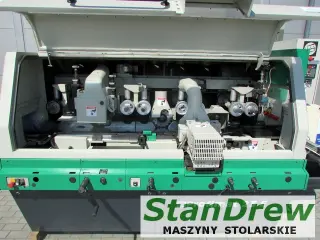

WEINIG PROFIMAT 23E four-sided planer
– German production
– year of production 1995
– right and left spindles with a face milling cutter ensuring parallelism and a right angle of 90°
– measurement of the width of the element
– electronic width setting
TECHNICAL PARAMETERS:
planing width 230 mm
planing height 120 mm
electronic planing width control

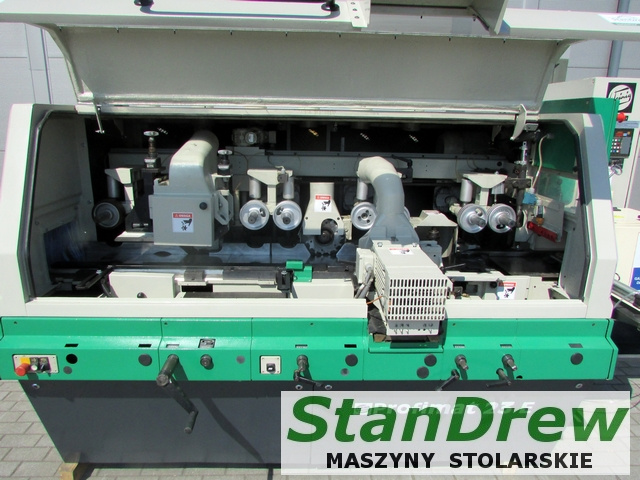

1 lower spindle 4 kW
2 right spindle 4 kW
3 left spindle 4.2 kW (face milling)
4 right spindle 4.2 kW (face milling)
5 upper spindle 7.5 kW
measurement of the width of the element
electric height adjustment of feed rollers
electric height adjustment of the upper spindle
spindle diameter 40 mm
six upper steel rollers
one upper rubber roller
one roller in the countertop pulling
pneumatic pressure
feed on cardan shafts
preliminary table length 2470 mm
diameter of connectors 140 mm
machine dimensions (length/width/height) 456 / 240 / 220 cm
weight 4000 kg
