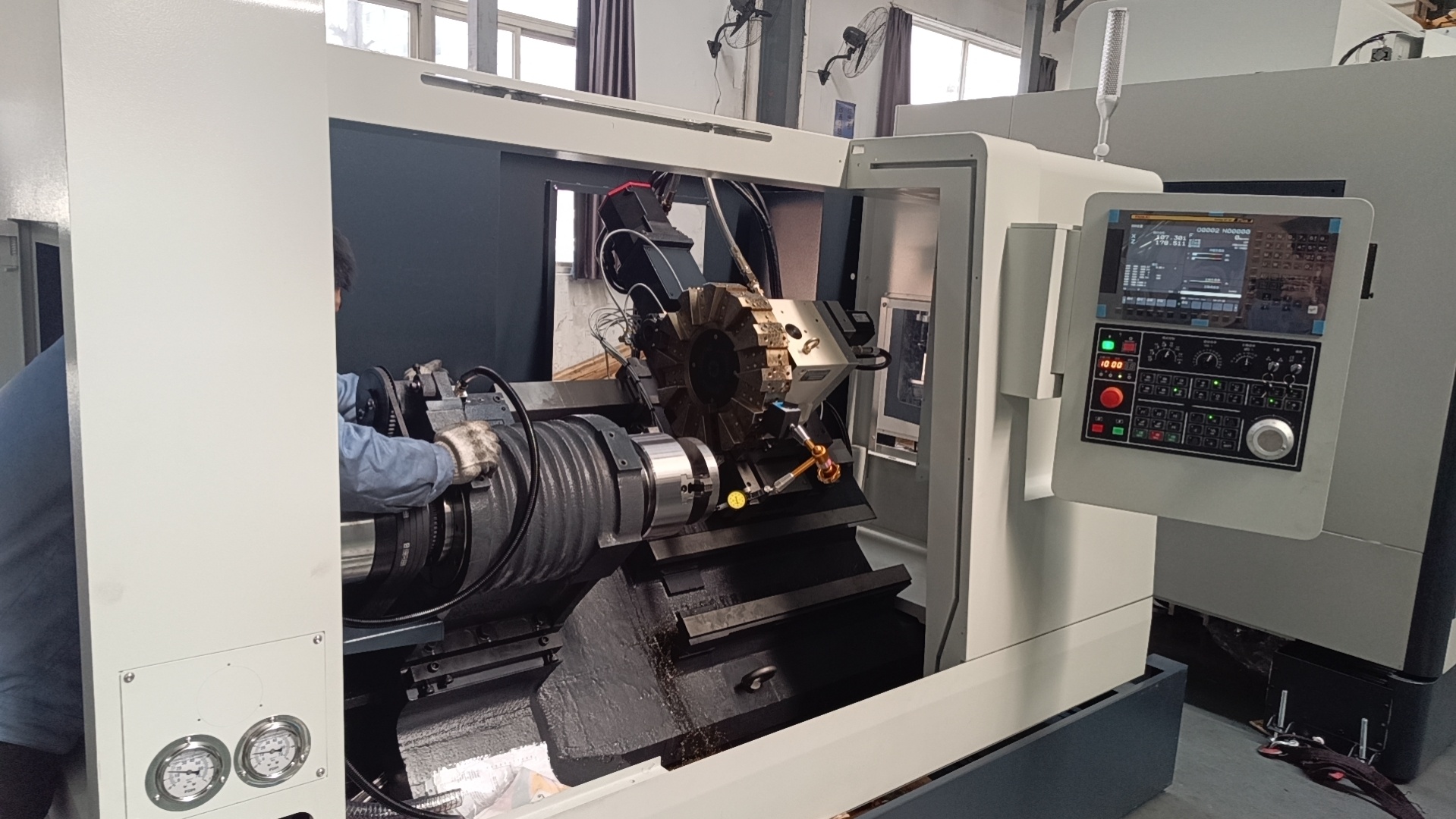

Токарный фрезерный станок с чпу SL620

Specification

Model

S620

Rotation diameter over bed

mm

Φ610

Rotating diameter on saddle

mm

Φ420

Maximum turning diameter

mm

Φ520

Maximum turning length

mm

1000

Hydraulic chuck

Inch

12"(optional)

Maximum bar diameter

mm

Φ65

Spindle through hole diameter

mm

Φ86

Spindle bearing diameter

mm

Φ120

Spindle speed

rpm

3200

Spindle nose

A2-8

Spindle motor (continuous/30 minutes)

kw

11/15

X-axis motor

kw

2.5

Z-axis motor

kw

2.5

X-axis travel

mm

295

Z-axis travel

mm

1100

X-axis rapid movement speed

m/min

24

Z-axis rapid movement speed

m/min

20

Number of tool holder stations

Pcs

12

External knife specifications

mm

□25

Hole cutting tool specifications

mm

Φ40

Servo tailstock travel

mm

900

Tailstock sleeve travel

mm

100

Tailstock sleeve diameter

mm

100

Tailstock sleeve taper hole

M.T.5

Hydraulic tank capacity

L

60

cutting fluid capacity

L

350

Positioning accuracy (X/Z axis)

mm

0.010/0.012(actual)

Repeatability (X/Z axis)

mm

0.005/0.007(actual)

Machine size (length × width×height )

mm

4393*2053*2210

Machine net weight

kg

8000

CNC system

FANUC Oi TF PLUS type 1+ Manual guide
