Устройство настройки и измерения Zoller Smile 420

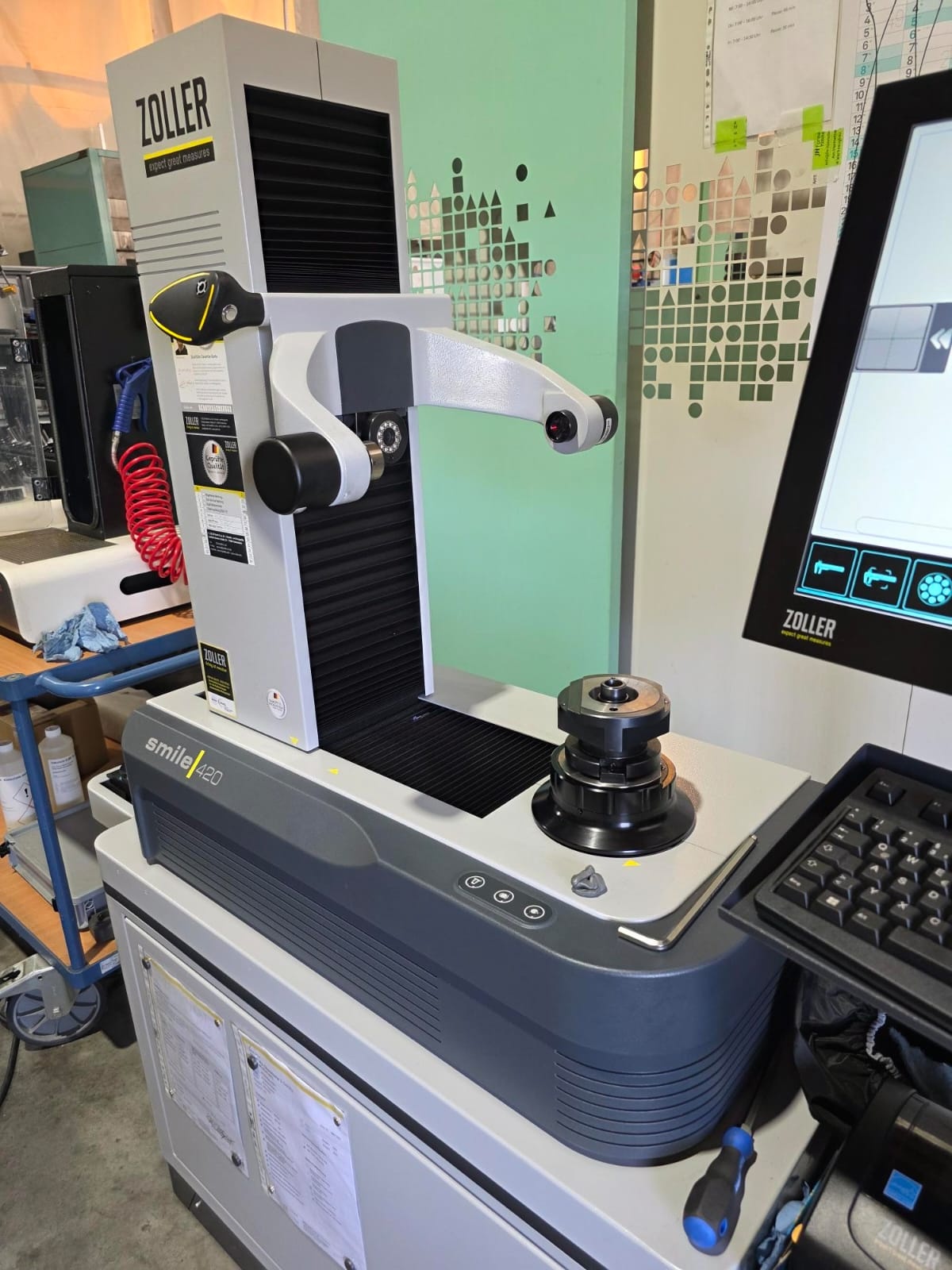

Zoller Smile 420

Reviewed on September 5, 2024 былы ТО

Z-axis travel: 420 mm

X-axis travel: 200 mm

Workpiece diameter: max. 420 mm

Workpiece length: max. 400 mm

Max. snap gauge diameter: d = 100 mm

Workpiece holder: SK 50 + SK40 adapter + HSK63 adapter + VDI 30 adapter

Tool weight: max. 10 kg

Repeatability: +/- 0.002 mm

Display accuracy: 0.001 mm

Concentricity: 0.005 mm

Power supply: 230 V / 50 Hz

Compressed air connection: approx. 6 bar

Dimensions W x D x H: 1300 x 625 x 1600 mm

Weight: approx. 200 kg

Color: silver-gray / anthracite

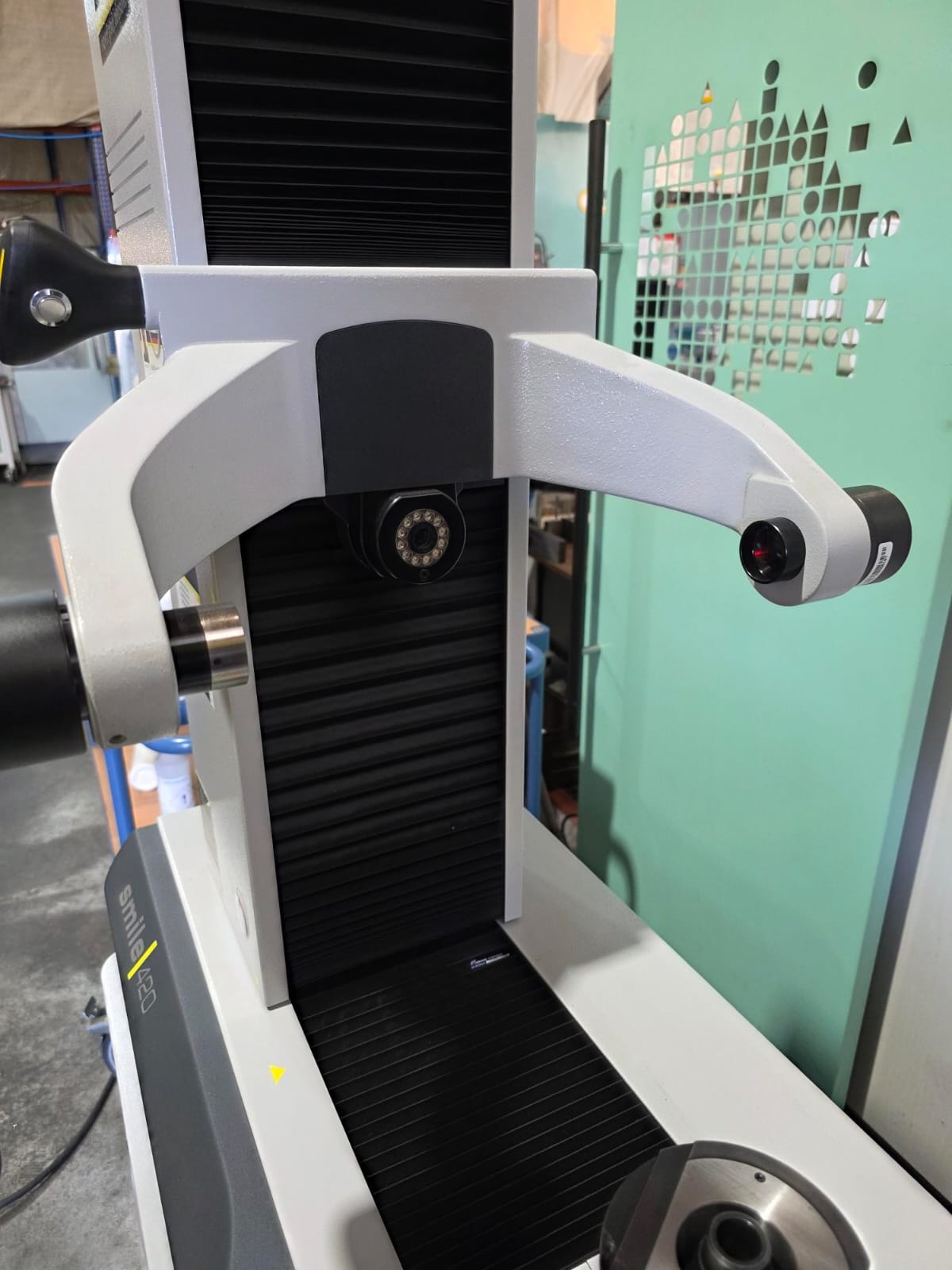

Suitable for manual and automatic measurement of all types of cutting tools and grinding wheel packages. The Zoller imaging and camera system enables fast, operator-independent measurement of all tool edges.

Accessories:

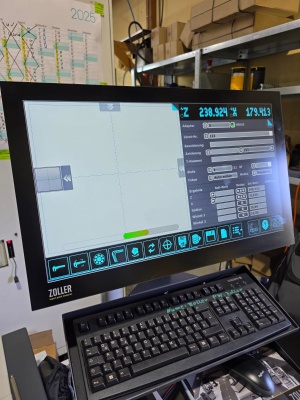

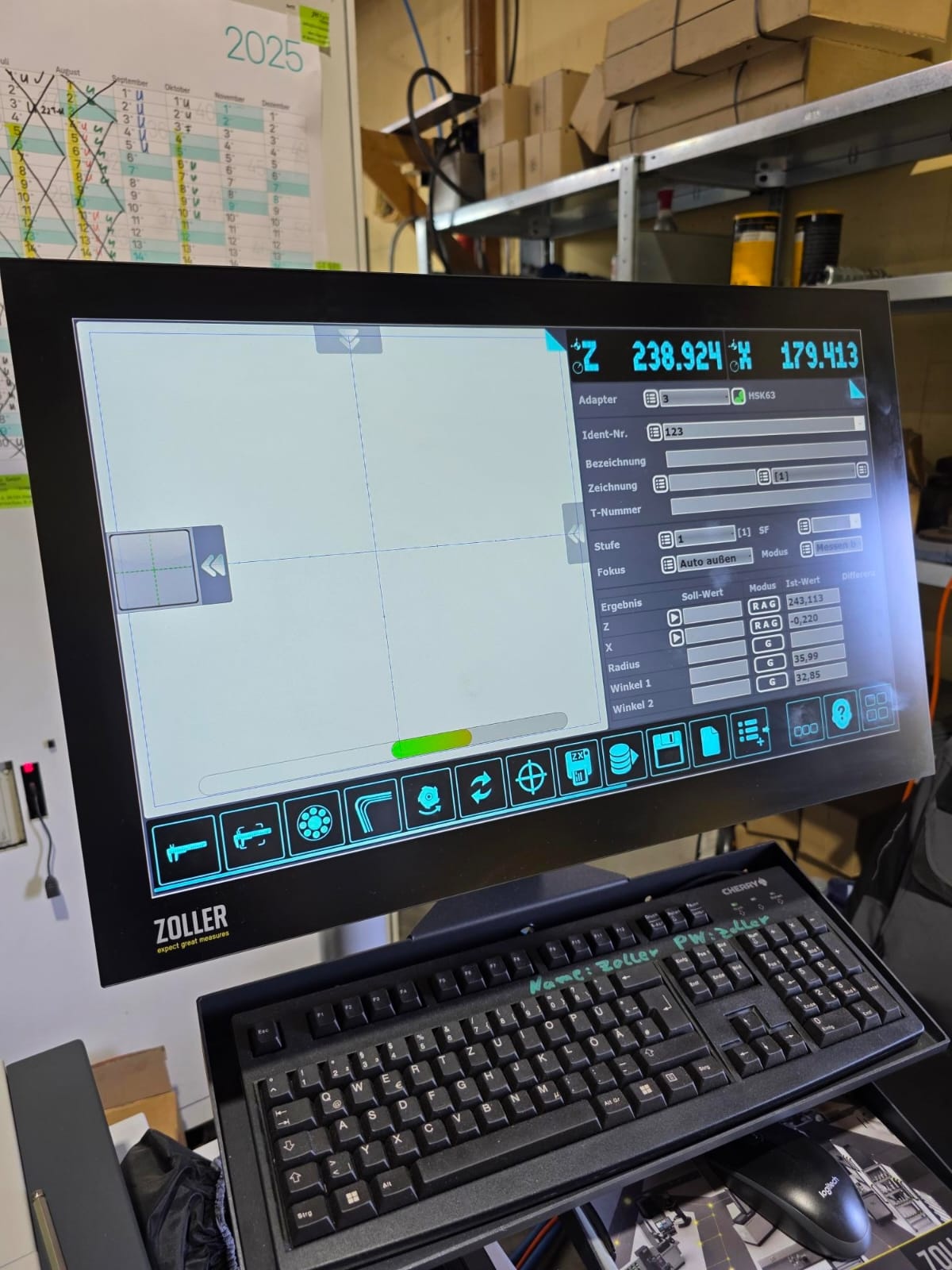

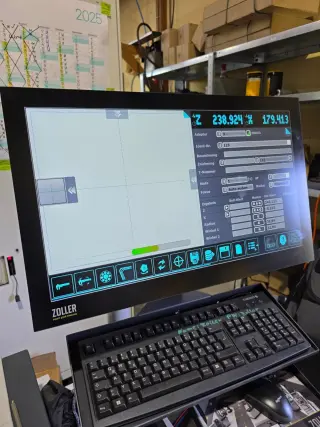

ZOLLER measuring device control "Pilot 4.0" panel PC with 24" multi-touch display

Industrial computer with Windows 10 64-bit operating system

High-precision spindle SK 50 (concentricity 0.002 mm, spindle brake)

Autofocus (CNC drive in the C-axis for operator-independent cutting edge focusing and automatic measurement of multi-edge tools)

Rotary encoder (ROD) for high-precision position determination in the C-axis

-Turn center measuring device/camera available or installed and fully functional.

Pilot 4 software

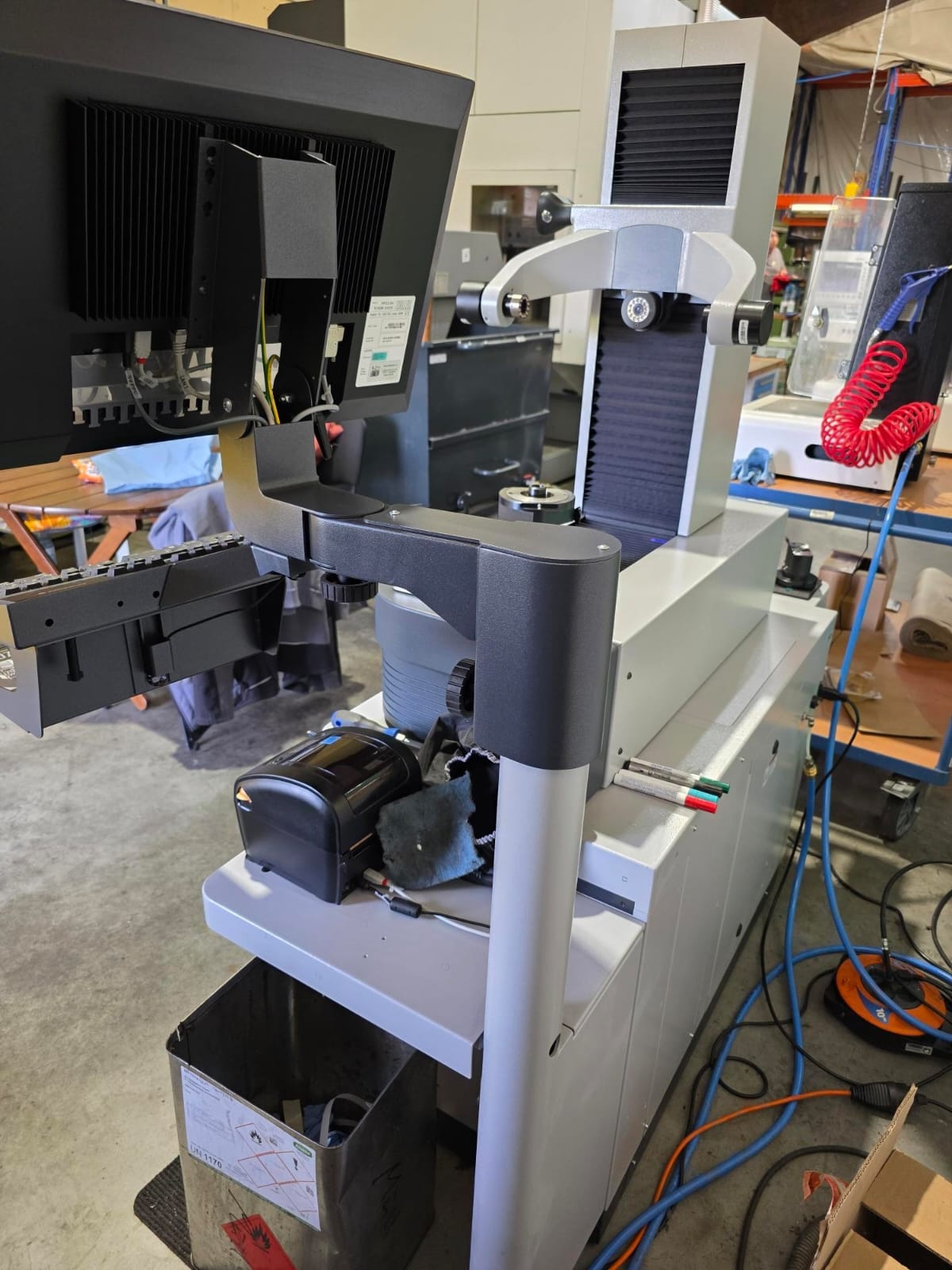

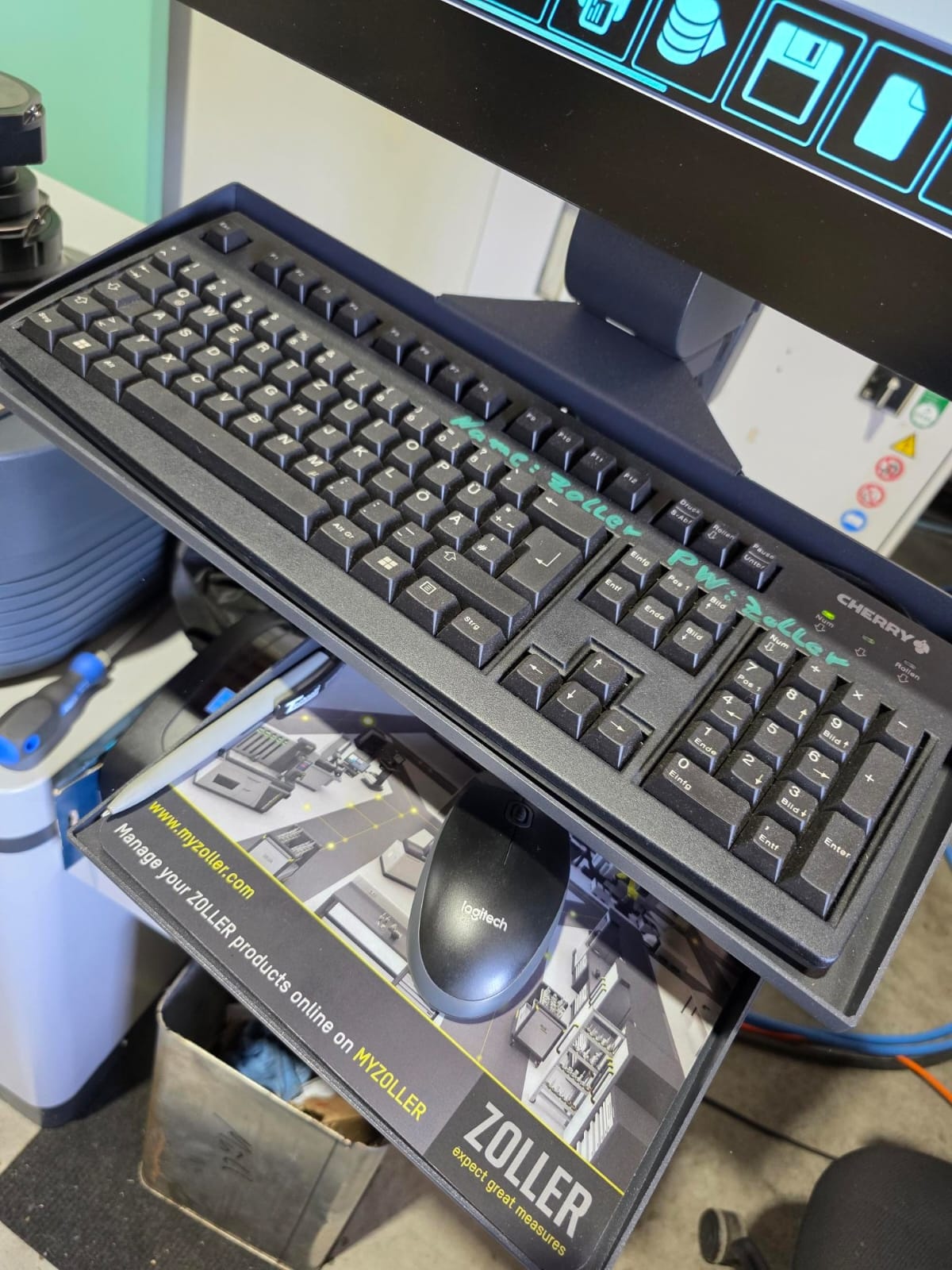

Monitor mount for Zoller measuring device control, mouse and keyboard tray

Under-table system

Maintenance unit

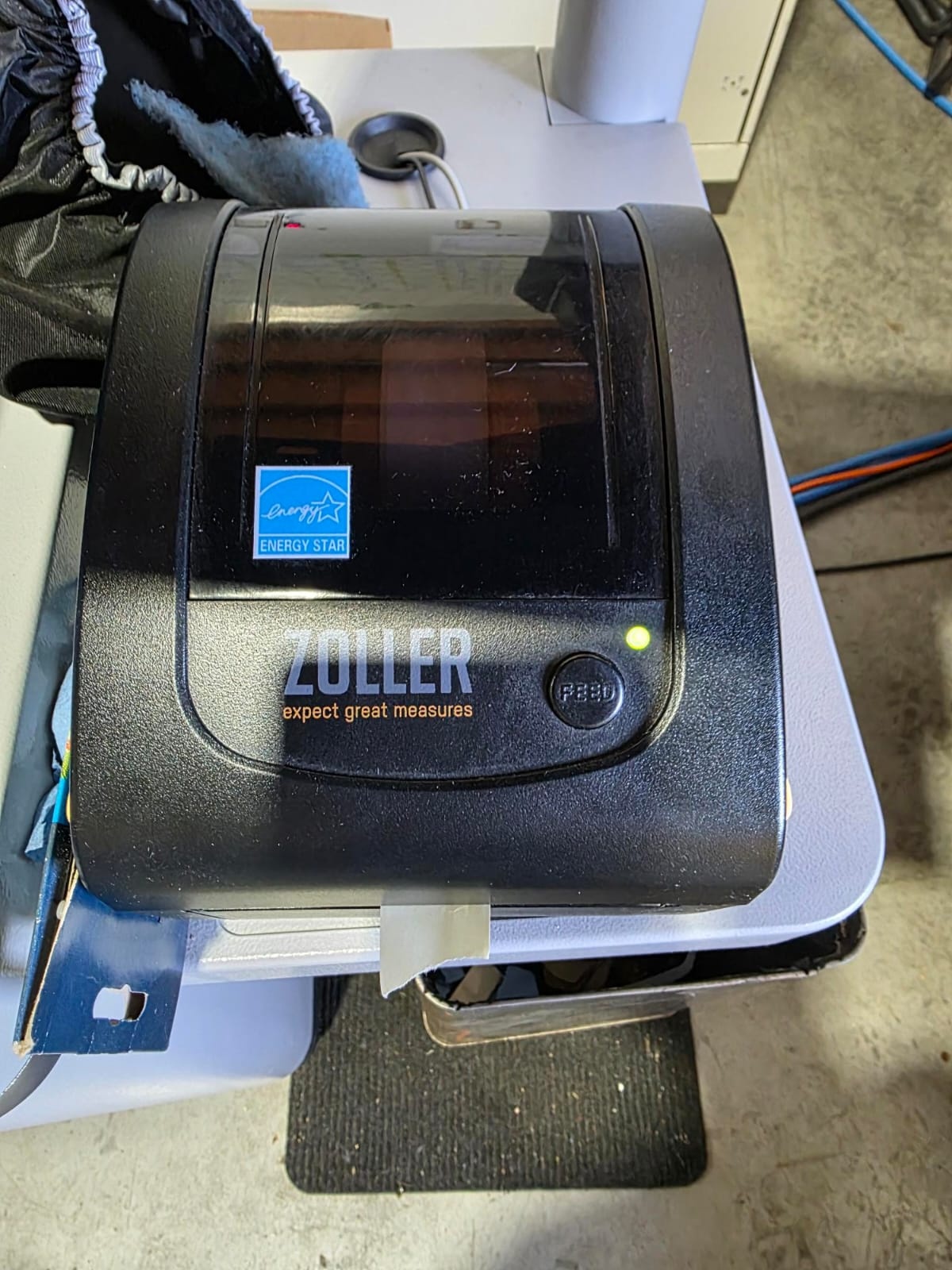

Thermal label printer
