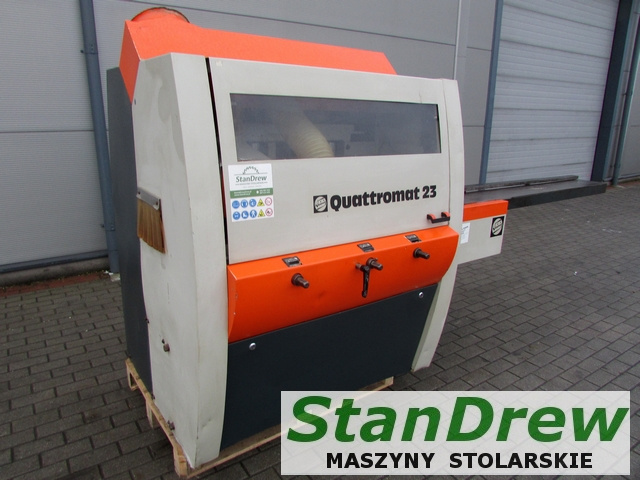

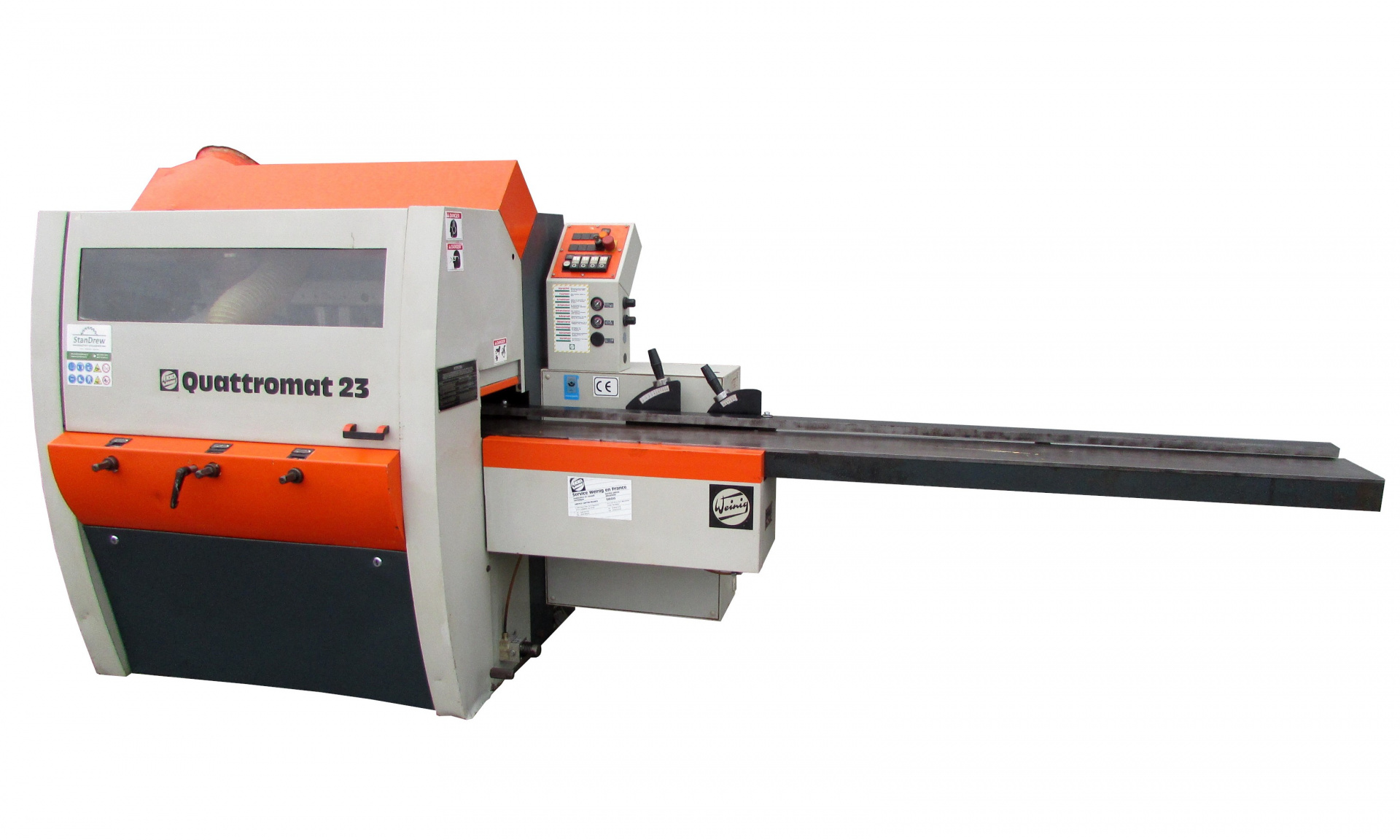

WEINIG QUATTROMAT 23 V four-side planer
– German production
– year of production 1999
TECHNICAL PARAMETERS:
planing width 230 mm
planing height 120 mm
spindle diameter 40 mm
feed 10 m/min
power of feed motors 3 x 0.85 kW
first lower spindle 4 kW
second right spindle
third left spindle 7.5 kW
fourth upper spindle 5.5 kW
max. diameter of horizontal / vertical tools 140 mm / 180 mm
two upper steel pulling rollers
one upper rubber pulling roller
one rubber roller in the countertop
central lubrication of the countertop
tabletop length 2465 mm
pneumatic clamps
upper head shoe
spigot diameter 250 mm
machine dimensions (length/width/height) 360 / 140 / 175 cm
weight ~ 1000 kg
