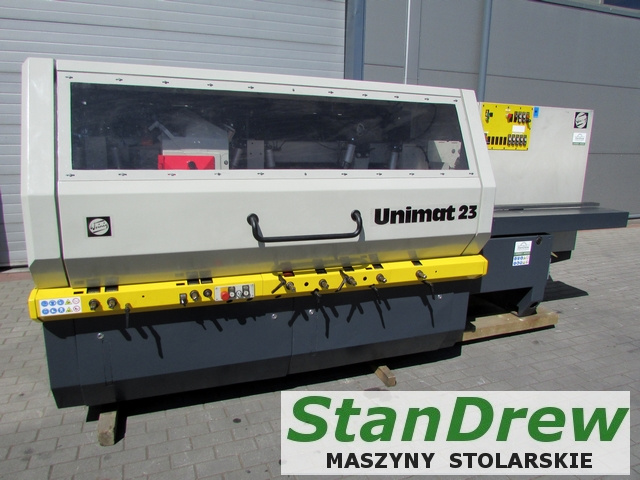

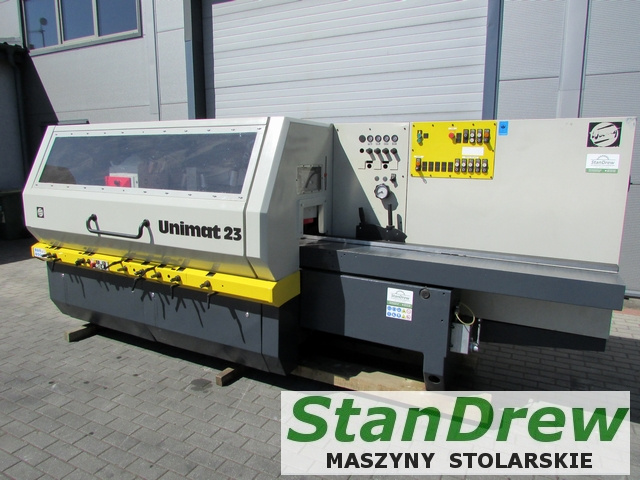

Weinig Unimat 23 four-sided planer
– German production
– grooved top
– year of production 1996
– pulling rollers in the countertop
TECHNICAL PARAMETERS:
planing width 230 mm
planing height 160 mm

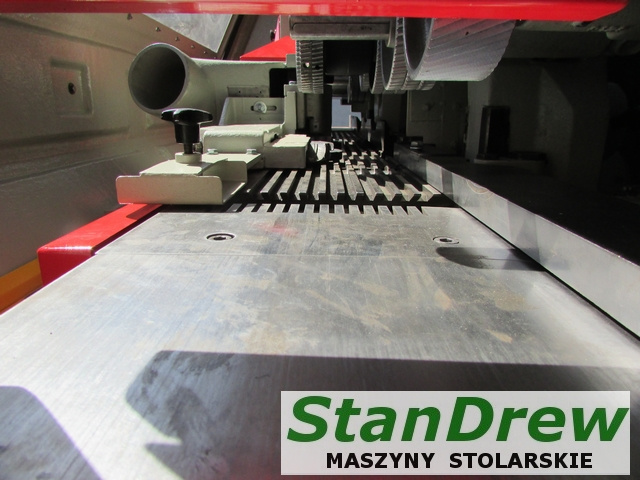

grooved top
spindle diameter 40 mm
1 lower spindle 7.5 kW
2 right spindle 7.5 kW
3 left spindle 7.5 kW
4 upper spindle 11 kW
5 lower spindle 7.5 kW
feed continuously adjustable 6-36 m/min
feed motor power 5.5 kW

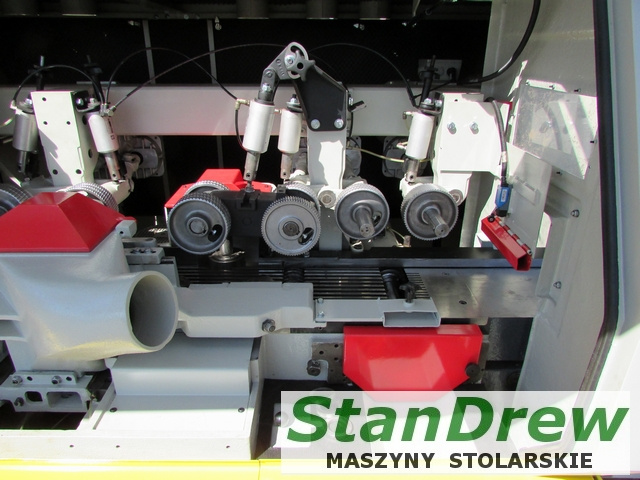

six upper steel pulling rollers
two upper rubber pulling rollers
three rollers in the tabletop pulling
pneumatic feed pressure
pneumatic shoe pressure
spindles with brakes
pre-top length 1970 mm
electric height adjustment
central lubrication (divided)
diameter of connectors 140 mm
machine dimensions (length/width/height) 410 / 200 / 180 cm
weight ~ 3000 kg
