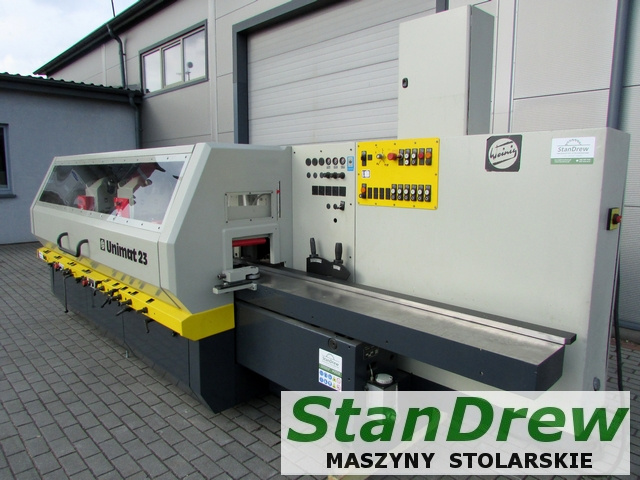

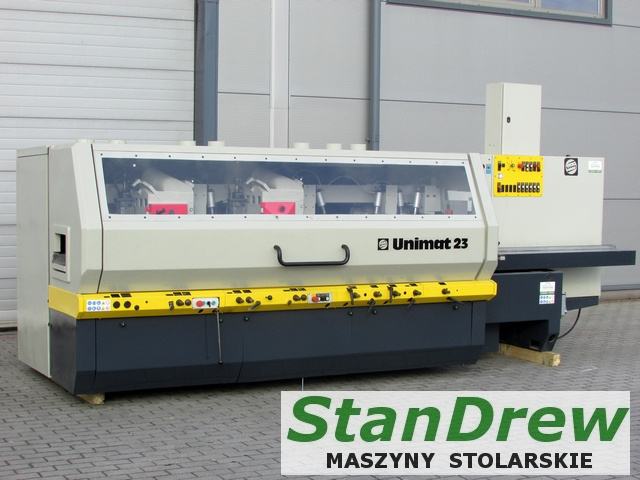

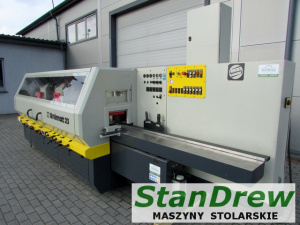

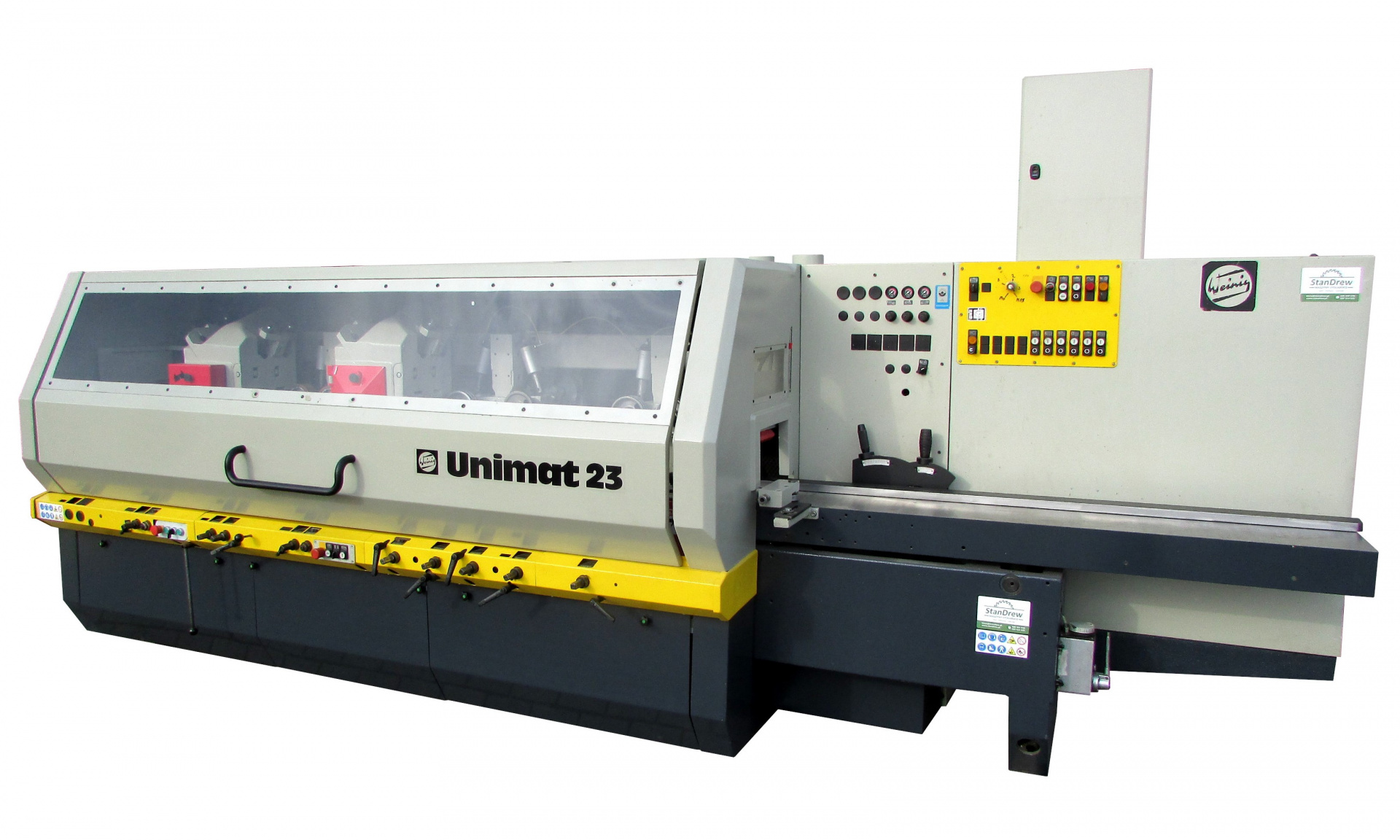

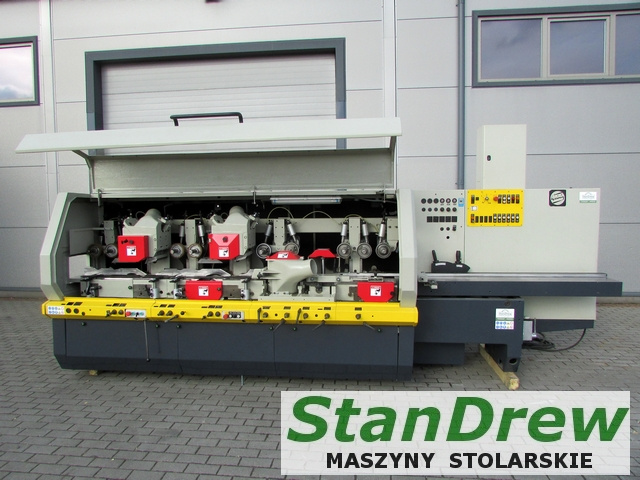

WEINIG Unimat U 23 four-side planer
– German production
– DTR
– for wet wood
– hydrohebel
TECHNICAL PARAMETERS:
planing width 230 mm
planing height 160 mm
pulling rollers in the countertop
diameter of spindles 1-4 - 40 mm
spindle diameter 5-6 - 50 mm

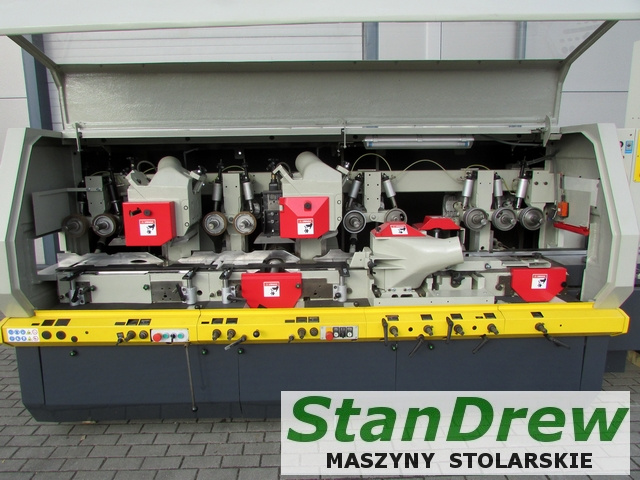

1 lower spindle 7.5 kW
2 right spindle 7.5 kW
3 left spindle 7.5 kW
4 upper spindle 7.5 kW
5 lower spindle 7.5 kW
6 upper spindle 7.5 kW
feed motor power 4 kW
feed smoothly adjustable on the inverter 5-26 m/min
jointers on the last two heads
five upper steel pulling rollers
four upper rubber pulling rollers
four rollers in the tabletop pulling
pneumatic pressure
feed on cardan shafts
electric brakes
electric height adjustment
pre-top length 1950 mm
diameter of connectors 140 mm
machine dimensions (length/width/height) 685 / 230 / 230 cm
weight 4000 kg
